IIYAMA LH5575UHS-B2AG 55inch 3840x2160 UHD IPS panel Haze 25Percent 500cd/m Landscape and Portrait
|
840,02 EUR |
|
|
( 999,62 EUR incl. VAT ) ≈ £703.10 | ≈ $936.62 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| End-Of-Life: | 15. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 225947 |
| Mfg Part No: | LH5575UHS-B2AG |
| UPC/EAN: | 4948570125258 |
| Weight: | 19.6 kg |
| Type: | LFD |

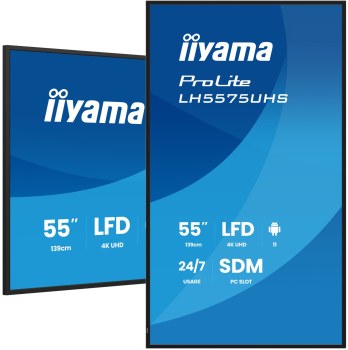

Product information for Iiyama LH5575UHS-B2AG:
• Diagonale: 138,7 cm ( 54,6 inch )/139cm • Auflösung: 3840x2160, 16:9 • Helligkeit: 500cd/m² • Kontrast: 1200:1 (typisch) • Reaktionszeit: 8ms • Blickwinkel: 178°/178° • Panel: IPS • Anschlüsse: 1x Display-Port, 3x HDMI, 1x Mini Jack, 1x RS-232c, 1x RJ-45, 1x IR • VESA: 400x400 • Abmessungen (BxHxT): 1237.5 x 710 x 55mm
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Computer system | |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 11 |
| Computer system | |
| Built-in processor | |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| Bezel width (bottom) | 1.48 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (top) | 1.48 cm |
| Bezel colour | Black |
| Mounting type | Wall |
| VESA mounting | |
| Anti-glare screen | |
| Display | |
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display diagonal (metric) | 139 cm |
| Horizontal scan range | 28 - 160 kHz |
| Colour depth | 8 bit |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| RGB colour space | NTSC |
| Colour gamut | 72% |
| Touchscreen | |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | |
| Wi-Fi | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Audio output | 3.5mm |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Power supply type | Internal |
| Housing material | Metal |
| Quick start guide | |
| Plug and Play | |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Remote control included | |
| Batteries included | |
| Packaging data | |
| Package width | 1386 mm |
| Package depth | 130 mm |
| Package height | 845 mm |
| Package weight | 20.6 kg |
| Performance | |
| Purpose | Universal |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | |
| HDCP | |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPorts out | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| USB port | |
| PC Audio in | |
| RS-232C | |
| Card reader integrated | |
| Audio Return Channel (ARC) | |
| Power | |
| Power consumption (typical) | 127 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 127 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Technical details | |
| Playback media | Y |
| User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temp., colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Daisy Chain DisplayPort | |
| Weight & dimensions | |
| Display width | 1237.5 mm |
| Display depth | 55 mm |
| Display height | 710 mm |
| Display weight | 15.2 kg |
| Width | 1237.5 mm |
| Depth | 55 mm |
| Height | 710 mm |
| Weight | 15.2 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of IIYAMA LH5575UHS-B2AG 55inch 3840x2160 UHD IPS panel Haze 25Percent 500cd/m Landscape and Portrait?
The article IIYAMA LH5575UHS-B2AG 55inch 3840x2160 UHD IPS panel Haze 25Percent 500cd/m Landscape and Portrait is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Iiyama LH5575UHS-B2AG to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you IIYAMA LH5575UHS-B2AG 55inch 3840x2160 UHD IPS panel Haze 25Percent 500cd/m Landscape and Portrait always at the best possible price. We can give you a discount of 2% on IIYAMA LH5575UHS-B2AG 55inch 3840x2160 UHD IPS panel Haze 25Percent 500cd/m Landscape and Portrait if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
