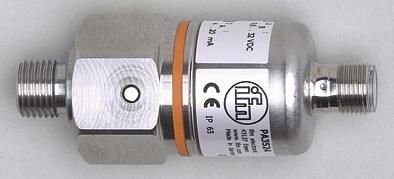

Ifm Electronic PA3509 Electronic pressure sensor, Connector
|
-7% 286,17 EUR 307,87 EUR |
|
|
( 340,54 EUR incl. VAT ) ≈ £245.53 | ≈ $325.66 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 478813 |
|---|---|
| Mfg Part No: | PA3509 |
| UPC/EAN: | 4021179236263 |
| Weight: | 0.217 kg |
| Type: | PA3509 |
Product information for Ifm Electronic PA3509:
Application: Type of pressure: relative pressure , Liquids and gases
Process connection: G ¼ A / M5 I
Operating voltage: 9.6...32 V DC
Electrical design: DC
Output function: 4...20 mA
Measuring range: -1...1 bar
Pressure rating: 10 bar
Bursting pressure min.: 30 bar
Characteristics deviation : < ± 0.25 (BFSL) / < ± 0.5 (LS)
Connection: M12 connector
Housing materials: stainless steel 316L / 1.4404; FPM (Viton); PA; EPDM/X (Santoprene)
Materials (wetted parts): stainless steel (303S22); ceramics; sealing: FPM (Viton); according to DIN 3869-14
Medium temperature: -25...90 * °C
Ambient temperature: -25...80 °C
Protection: IP 65
Accessories (to be ordered separately): Socket, Mounting accessories
Type: PA3509
Questions & answers
What is the delivery time of Ifm Electronic PA3509 Electronic pressure sensor, Connector?
The article Ifm Electronic PA3509 Electronic pressure sensor, Connector is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Ifm Electronic PA3509 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Ifm Electronic PA3509 Electronic pressure sensor, Connector always at the best possible price. We can give you a discount of 2% on Ifm Electronic PA3509 Electronic pressure sensor, Connector if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
