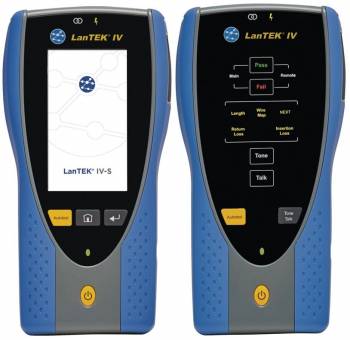

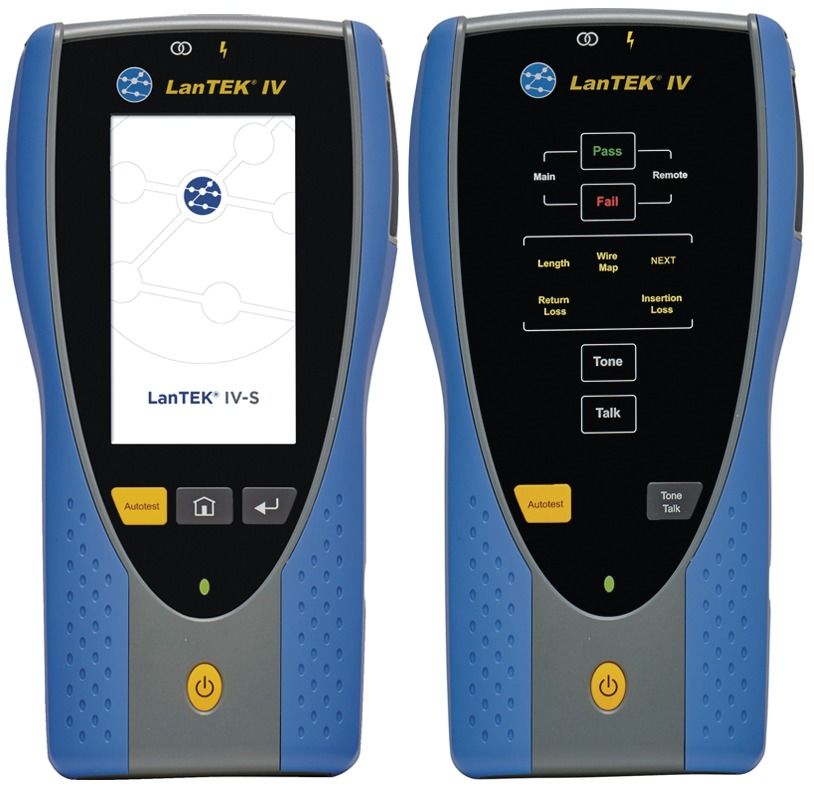

Ideal Industries R163009 TREND LanTEK IV-S-3000 cable certifier including Chan/Perm.Link adapter.

LanTEK IV-S-3000 is a cable certification system for copper and fiber optic cables including measurement of TCL/ELTCTL and DCRU - resistance unbalance, with higher protocol storage capacity of up to 5000 tests, extended processor and RAM memory for certifying transmission links in accordance with the TIA/ISO/IEC standards. Measuring range up to 3000 MHz/Cat. 8.1 and 8.2/ISO class I/II, measures up to 3000 MHz for future ISO/TIA test standards. The VisiLINQT permanent link adapter enables tests to be started directly on the adapter with PASS/FAIL results via LED display on both sides. The RJ45 insert on the VisiLINQT permanent link module is verified for 2000 mating cycles and can be replaced on site. Shortest measurement time of just 7 seconds for carrying out and saving tests on Category 6A cables. The new TREND AnyWARE Cloud management system enables real-time collaboration between project managers and service technicians, pre-configuration of measurement settings, free storage space, easy location of project files (including cable plans, videos and images), sharing links to test reports, WalkMe induction program and Fleet Manager device management system, also available as a desktop system. A selection of adapter options for copper and fiber optic are available. Team Viewer Live Support via the AnyWARE Cloud enables connection to the LanTEK IV to assist with fault diagnosis. Comprehensive connection options such as WLAN, USB A, USB C and label printer support. Clear user interface with high-resolution, shock-resistant touchscreen, configurable autotest function for quick testing of common applications.
Type: R163009
