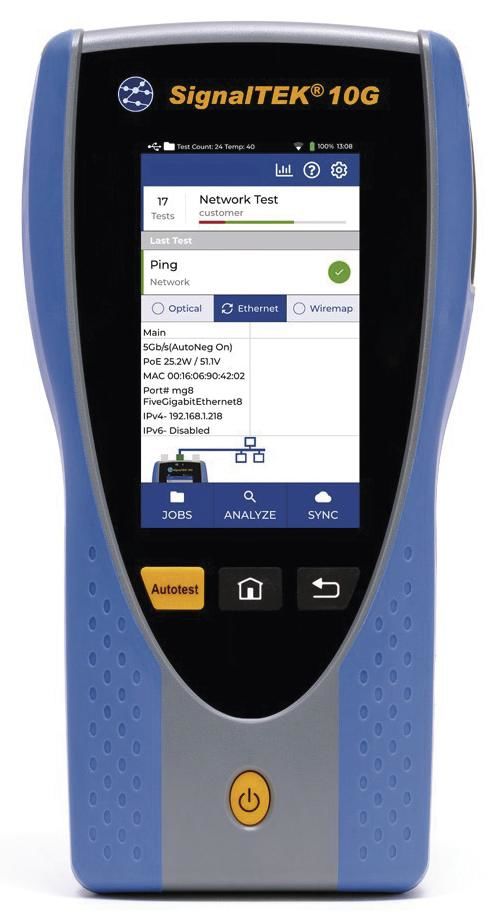

Ideal Industries R157001 Trend SignalTEK 10G FT Ethe Trobuleshooter and Bandwidth Tester

The SignalTEK 10G FT for the qualification of copper and fiber optic links over 10 Gbit/s determines the actual bandwidth available in the network and identifies bottlenecks to prove whether a cabling supports transmission up to 10 Gbit/s according to IEEE 802.3. Using automatic tests, the SignalTEK 10G provides a precise statement and evaluation. The compact tester is characterized by user-friendly operation, a 5' high-resolution touchscreen display and a sturdy housing. The integrated WiFi connectivity enables the SignalTEK 10G to connect directly to the free AnyWARE Cloud Management System. In addition to the fiber optic options such as data transmission test up to 1/10Gbit/s, testing of the maximum throughput up to 10 Gbit/s, diagnosis of faults on the fiber optic, display of the optical TX/RX level, temperature/provider and the SFP module, detection of defective SFP modules, support of SFP/SFP+ (MM + SM), the SignalTEK 10G FT also supports the comprehensive basic functions for copper such as testing of the maximum throughput up to 10 Gbit/s, data transmission test up to 1/2.5/5/10 Gbit/s, NBaseT/Multi-Gigabit test up to 1/2.5/5/10 Gbit/s, wiring, fault distance (DTF), length, OK/error display according to IEEE standards, checking of PoE installations up to 90 W (PoE++), testing of all PoE classes (0-8) and PoE types (af/at/bt), display of voltage and PoE wire pairs, tone generator for cable search (with compatible inductive receiver R180001). TeamViewer Live Support to assist with device diagnostics. Configurable autotest function for quick testing of common applications. PDF report of test results.
Type: R157001
