HP B0BN7UT#ABB S3 Pro 322ph 21.5 inch FHD VGA HDMI DisplayPort content_copy

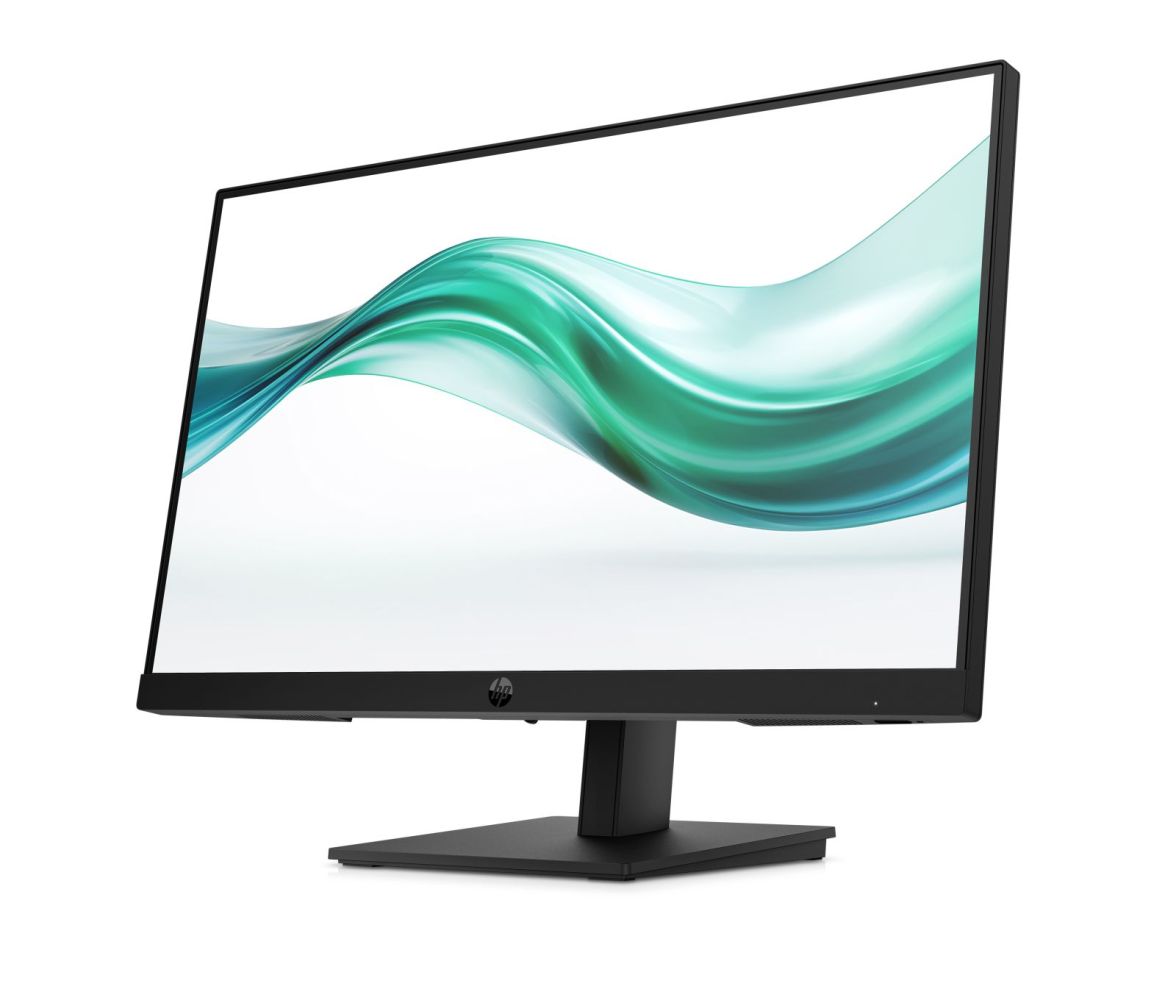

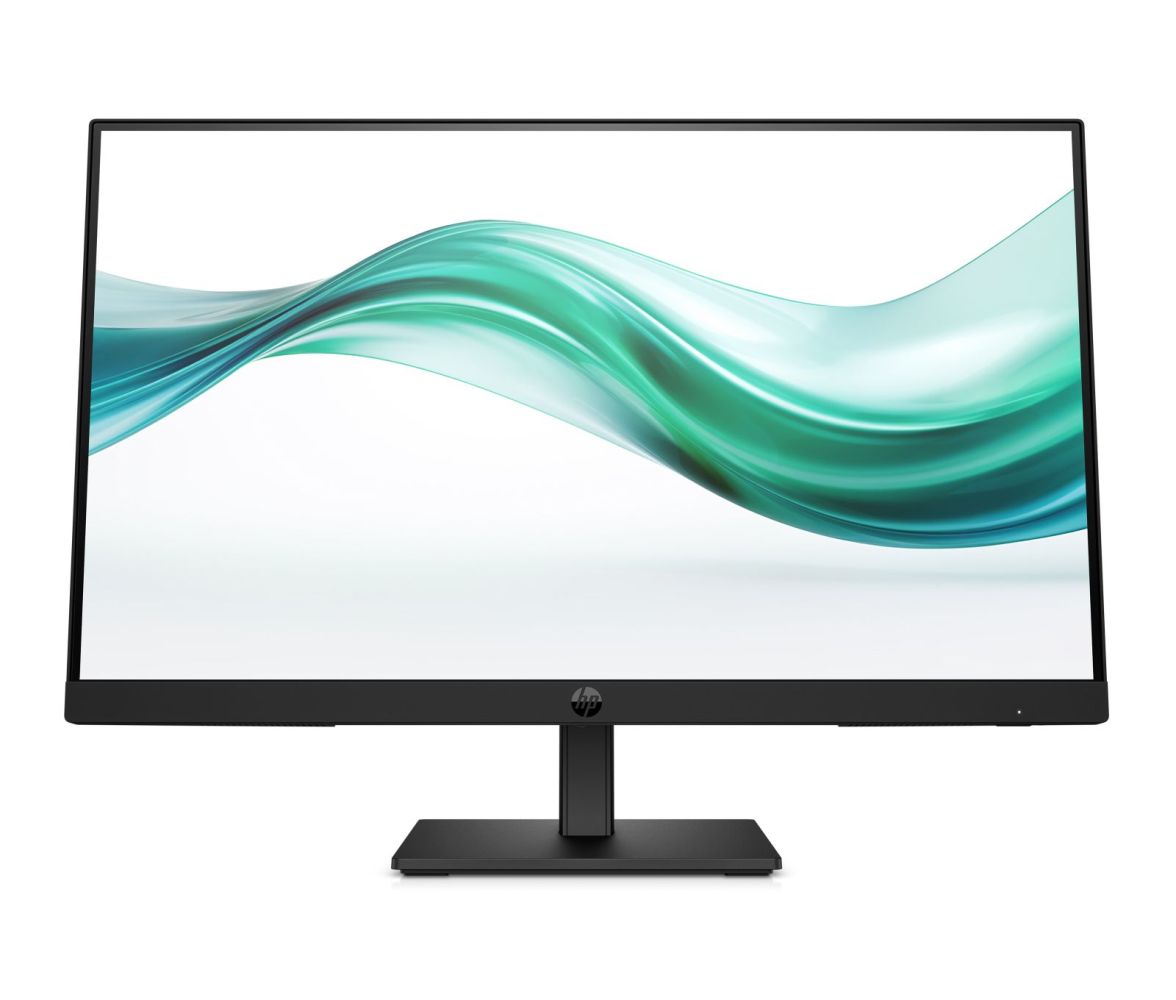

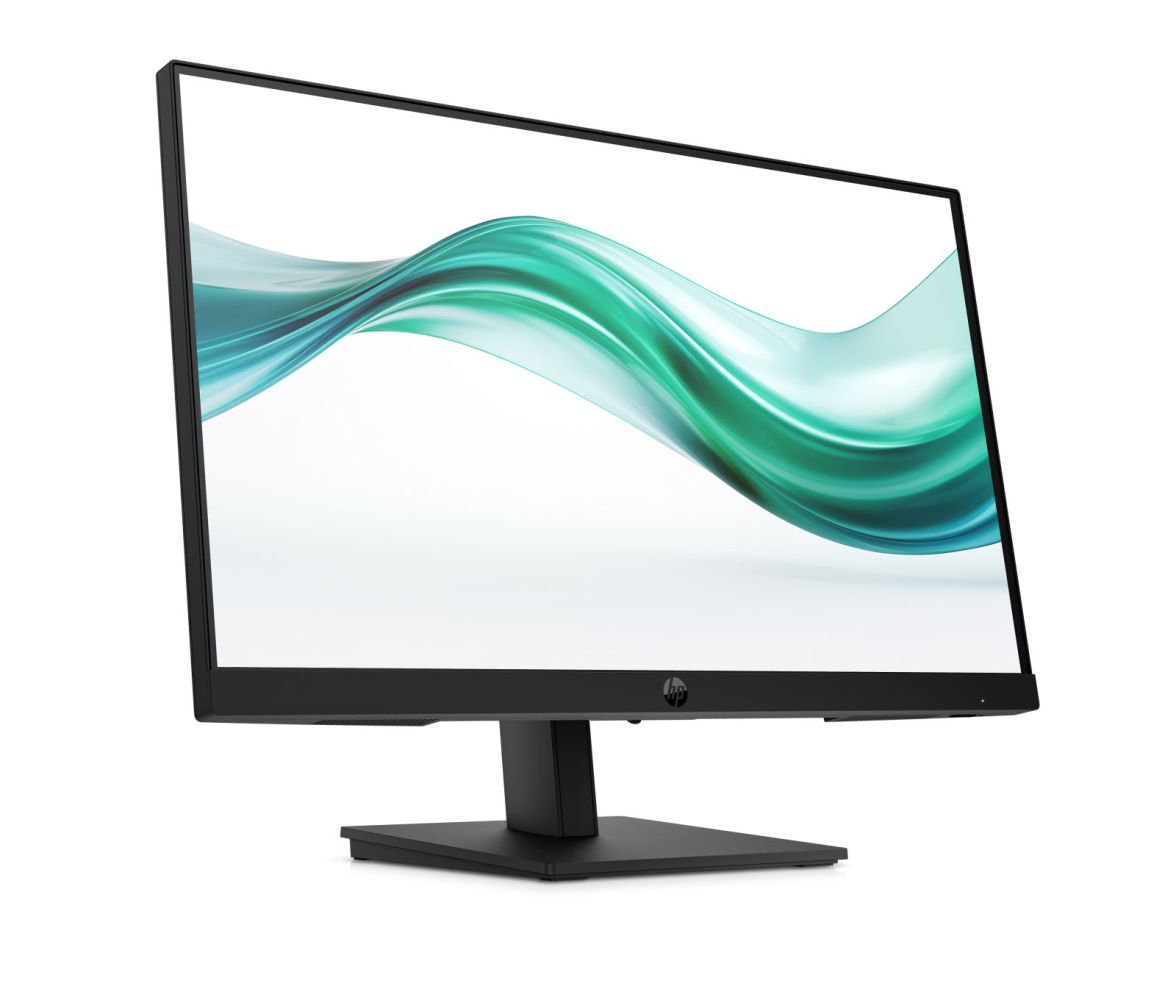

The HP Series 3 Pro 21.5 inch FHD Monitor (model 322ph) is a professional display designed for business environments. It features a screen diagonal of 54.6 cm (21.5 inches) and provides a native resolution of 1920 x 1080 pixels, matching the Full-HD standard. The display technology is based on an IPS panel with LED backlighting, ensuring uniform brightness distribution and high color accuracy. The display surface is matte, reducing reflections and glare, making the screen suitable for use in office environments with varying lighting conditions.

Applications
This monitor is designed for use in offices, workstations, and other professional environments where clear, color-accurate display and high readability of text and graphics are required. The 16:9 aspect ratio and Full-HD resolution are particularly suitable for displaying documents, spreadsheets, presentations, and multiple windows simultaneously. Integrated speakers with an RMS power of 4 W enable simple audio playback without additional speaker systems.

Features and Specifications in Detail
The screen offers a brightness of 250 cd/m², ensuring good visibility even in daylight. The contrast ratio is 1000:1 (typical), enabling clear visibility of depth and detail in images. The response time of 5 ms (Gray to Gray) ensures smooth motion display and avoids visible distortions during fast image changes. The maximum refresh rate is 100 Hz, providing flicker-free display. Viewing angles are 178° horizontally and vertically, allowing good visibility from various positions. The color depth is 8 bit, and the color gamut covers 72 % of the NTSC color space, ensuring natural color reproduction.

Technology Explained Simply
The IPS panel (In-Plane Switching) ensures uniform color and brightness distribution across the entire screen, even at viewing angles up to 178°. The LED backlighting with side-LED technology guarantees homogeneous brightness without visible hotspots. Flicker-free technology and Low-Blue-Light technology reduce eye strain during prolonged use. The matte coating minimizes reflections, which is especially beneficial in offices with windows or artificial lighting.

Compatibility and Accessories
The monitor features an HDMI port (version 1.4), a DisplayPort (version 1.2), and a VGA port (D-Sub), ensuring compatibility with a wide range of graphics cards and computers. HDCP support enables playback of protected content. The VESA mounting interface with a mounting pattern of 100 x 100 mm allows installation on wall mounts or monitor stands. The integrated cable lock slot provides additional theft protection.

Mounting and Installation

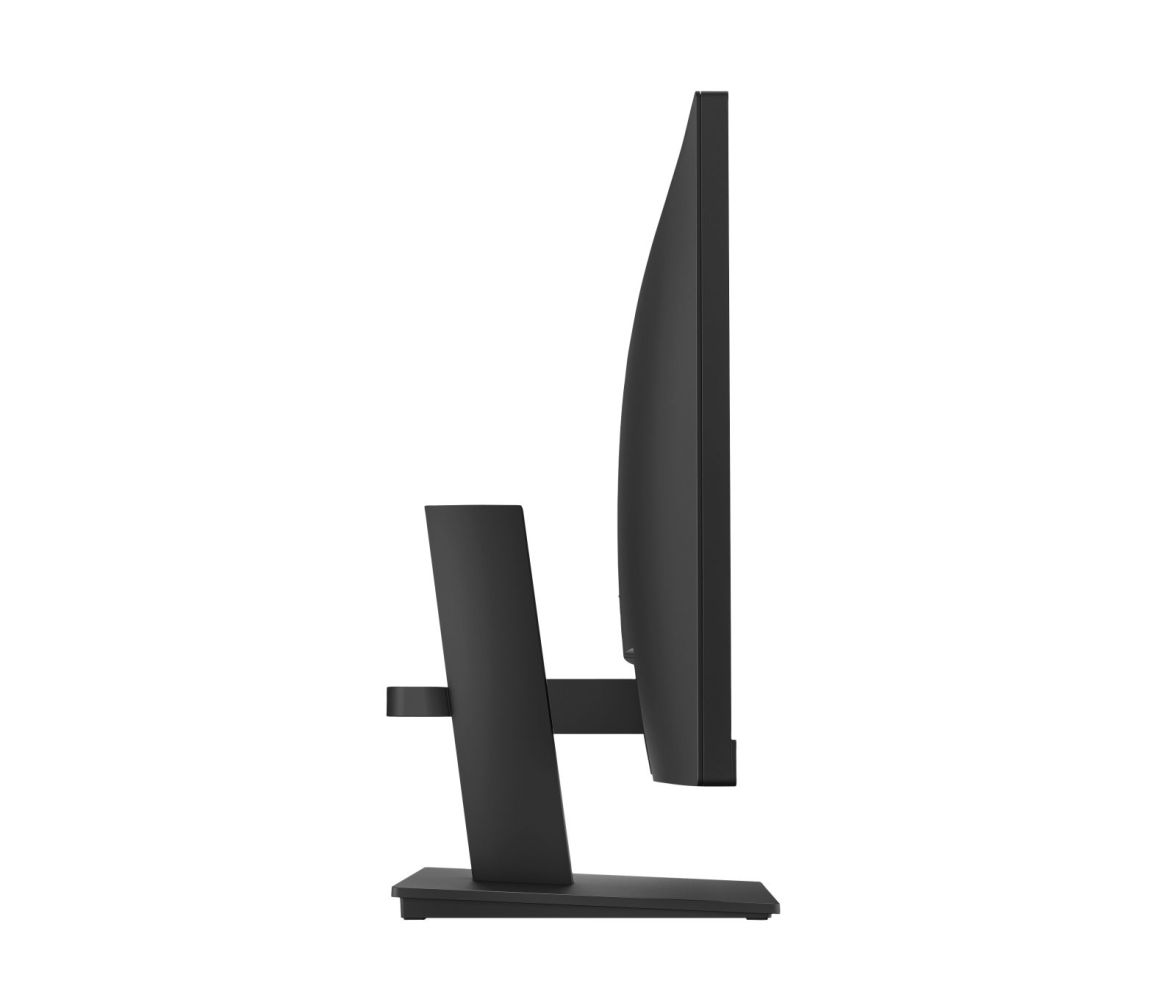

The monitor comes with a removable stand that allows height adjustment up to 10 cm and tilt adjustment from -5° to +23°. These adjustments support an ergonomic working position. The On-Screen Display (OSD) enables direct adjustment of screen parameters on the device.

Operational Advantages
The monitor is characterized by high image quality, excellent color reproduction, and ergonomic design. Integrated speakers and multiple connectivity options reduce the need for additional devices. The energy efficiency class D (SDR and HDR) and power consumption of 18 W in standard operation make the monitor an energy-efficient solution. The operating temperature range of 5 to 35 °C and storage temperature range of -40 to 65 °C demonstrate the device’s robustness under various environmental conditions.

Product Type, Core Function, Technology, Standard
The monitor is an LCD display with IPS panel technology, designed for business use. The Full-HD resolution and matte surface are key features. The VESA mounting and height adjustment support ergonomic use. The energy efficiency class D is specified according to EU standards.

Design
Market positioning	Business
Product colour	Black
Colour name	Black
Feet colour	Black
Detachable stand
Display
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
HD type	Full HD
Native aspect ratio	16:9
Display technology	LCD
Panel type	IPS
Backlight type	Edge LED
Display brightness (typical)	250 cd/m²
Display brightness	250 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	8000000:1
Maximum refresh rate	100 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.248 x 0.248 mm
Pixel density	102 ppi
Horizontal scan range	30 - 115 kHz
Vertical scan range	48 - 100 Hz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
Viewable size diagonal	5.46 cm
Display diagonal (metric)	54.6 cm
Haze rate	25%
Surface hardness	3H
Colour depth	8 bit
Colour gamut standard	NTSC
Colour gamut	72%
NTSC coverage (typical)	72%
LED backlight
Touchscreen
Anti-glare screen
Ergonomics
Panel mounting interface	100 x 100 mm
Adjustable height (max)	10 cm
Tilt angle range	-5 - 23°
VESA mounting
Cable lock slot
Height adjustment
Tilt adjustment
On Screen Display (OSD)
Multimedia
Number of speakers	2
RMS rated power	4 W
Built-in speaker(s)
Built-in camera
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Non-operating relative humidity (non-condensing)	20 - 80%
Other features
Country of origin	China, Vietnam
UNSPSC-code	43211902
Packaging content	Monitor; HDMI cable; Warranty card; Quick Setup Poster; AC power cord
Weight	3.73 kg
Compliance certificates	CECP, CCC, CB, EAC, BIS, Federal Communications Commission (FCC), CE, BSMI
Packaging content
Cables included	HDMI, DisplayPort, AC
Quick start guide
Packaging data
Package width	567 mm
Package depth	133 mm
Package height	387 mm
Package weight	5.63 kg
Package type	Box
Warranty card
Performance
HP segment	Business
NVIDIA G-SYNC
AMD FreeSync
Flicker-free technology
Low Blue Light technology
Ports & interfaces
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Built-in USB hub
HDMI
Headphone out
HDCP
Power
Energy efficiency class (SDR)	D
Energy efficiency class (HDR)	D
Energy consumption (SDR) per 1000 hours	11.3 kWh
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
Power consumption (max)	25 W
Power consumption (off)	0.2 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G
Sustainability
Sustainability certificates	ENERGY STAR, EPEAT, TCO, EPEAT Climate +, TCO10
Sustainable technologies and materials	At least 85% post-consumer recycled plastic; At least 5% recycled metal; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Low halogen
Sustainability compliance
Weight & dimensions
Width (with stand)	488.4 mm
Depth (with stand)	196.4 mm
Height (with stand)	449.5 mm
Weight (with stand)	3.73 kg
Width (without stand)	488.4 mm
Depth (without stand)	51.2 mm
Height (without stand)	294.3 mm
Weight (without stand)	2.55 kg

---
