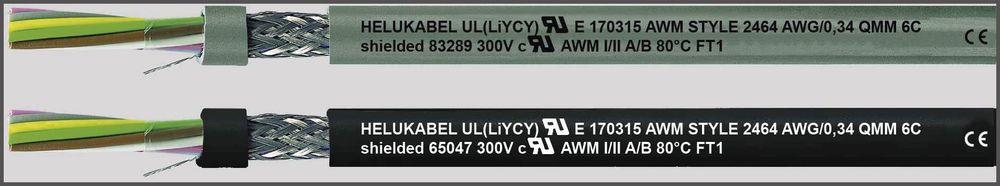

Helukabel 83306 HELU UL (LiYCY) 10x0.56qmm (20AWG) Grey Data Cable UL/CSA Control Cable

Technical data:

Special PVC control cable approved according to UL Style 2464, cores for AWG 26-20 in accordance with UL Style 1061/1729 for AWG 18-16 in accordance with UL Style 1007/1569
Temperature range moving -10°C to +80°C fixed -20°C to +80°C
Nominal voltage 300 V
Test voltage 1500 V
Breakdown voltage min. 3000 V
Minimum bending radius moving 15x cable Ø not moving 7.5x cable Ø
Coupling resistance max. 250 Ohm/km
Structure:
Tinned copper strand, finely stranded, AWG 26-20 in accordance with ASTM-B 174-95 class JM, AWG 18-16 in accordance with ASTM-B 286
Strand structure at: 0.14 mm² = 7x0.162 mm 0.23 mm² = 7x0.202 mm 0.34 mm² = 7x0.254 mm 0.56 mm² = 7x0.32 mm 0.82 mm² = 19x0.235 mm 1.30 mm² = 19x0.31 mm
Core insulation made of special PVC class 43, or semi-rigid in accordance with UL Std.1581 tab.50.182 and 50.183
Core identification in accordance with DIN 47100 or international colour code
Cores stranded in layers with optimum lay lengths Separating
foil
Drain wire
Shielding made of tinned copper wires, coverage approx. 85%
Outer jacket made of PVC class 43 in accordance with UL Std.1581 tab.50.182
Jacket colour: black (international colour code) grey
Properties:
The materials used in production are free of silicone and cadmium and free of substances that impair
paint wetting properties. Largely resistant to oil, solvents, acids, alkalis.
Tests:
PVC flame-retardant in accordance with UL VW-1, CSA FT1
Notes:
Unshielded analogue types: Control cable UL (LiYY)
Use:
As a flexible connecting cable in electronics, control and regulation technology, as well as in measurement, signal and pulse technology. Fast and cost-effective contacting using insulation displacement technology. EMC = Electromagnetic compatibility To optimise the EMC properties, we recommend a large-area, all-round contact on both sides of the copper braid.
Standard lengths: 100 m, 500 m, 1000 m
Subject to technical changes.
Type: 83306
