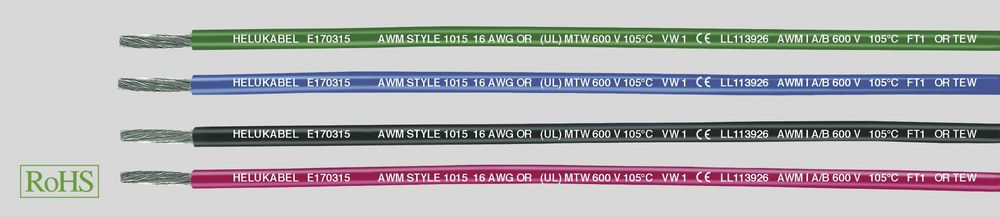

HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M
|
242,09 EUR |
|||||||||||
|
incl. 51,86 EUR copper surcharge ( 288,09 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 305 meters | |||||||||||
| Lieske Part No.: | 1103669 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 60613-305 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 60613-305:
Technical data:
PVC single core according to UL AWM Style 1015/ MTW and CSA-AWM/TEWTemperature ranges moving -5°C to +105°C not moving -30°C to +105°C
Temperature at the conductor UL/CSA max. +105°C
Nominal voltage 600 V
Test voltages (Spark Test) AWG 24 = 4 kV AWG 22 and 20 = 5 kV AWG 18 and 10 = 6 kV AWG 8 = 7.5 kV
UL Type AWM+MTW 105°C 600 V
CSA Type AWM+TEW 105°C 600 V
Minimum bending radius not moving 5x core Ø moving 10x core Ø
Structure:
Tinned copper wire according to UL Std.758 with AWG dimensions
Core insulation made of PVC heat and moisture resistant according to class 43 or CSA-C22.2 No. 210 UL VW-1 or CSA FT1 in accordance with UL Std.1581
Properties:
largely resistant to oil, solvents, acids, alkalis
The materials used in production are silicone- and cadmium-free and free from substances that impair paint wetting Tests
PVC self-extinguishing and flame-retardant, tested in accordance with UL VW-1, CSA FT1
Use:
For the internal wiring of control cabinets, electrical devices, e.g. household appliances, radio or television sets, control panels. Connecting cable for machines in protective hoses and tubes and as a connecting cable for motors and transformers. UL or CSA: AWM = Appliance Wiring Material For the internal wiring of electrical devices and controls, e.g. electronic assemblies and controls. UL-MTW: Machine Tool Wires CSA-TEW: Equipment Lead Wires MTW = Machine Tool Wire For the electronic installation of machine tools and associated controls. UL = Underwriters Laboratories Inc. (USA) CSA = Canadian Standards Association (Canada)
CE = The product conforms to the Low Voltage Directive 2014/35/EU.
Standard lengths: 152 m, 305 m, 500 m, 2000 m, 3000 m
Technical changes reserved.
Type: SINGLE CORE UL Style 1015
The item price shown refers to 305 meters Helukabel 60613-305
Questions & answers
What is the delivery time of HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M?
The article HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 60613-305 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M always at the best possible price. We can give you a discount of 2% on HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 meters of HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M we can offer you a price of 233,53 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
HELU SINGLE CORE UL Style 1015 HELUKABEL UL-CSA 600V.AWG 14GN Standard length: 305 M is offered by us in a sales unit of 305 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
