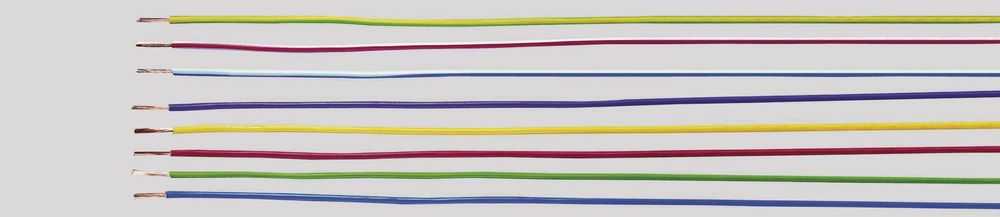

Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC
|
134,27 EUR |
|||||||||||
|
incl. 46,56 EUR copper surcharge ( 159,78 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 100 meters | |||||||||||
| Lieske Part No.: | 1779158 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 29189-100 | ||||||||||
| UPC/EAN: | 4060892001086 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 29189-100:
Technical data:
PVC single cores in accordance with DIN VDE 0285-525-2-31/ DIN EN 50525-2-31 and IEC 60227-3Temperature range moving -5°C to +70°C stationary -30°C to +80°C
Nominal voltage U0/U 450/750 V
Test voltage 2500 V
Insulation resistance min. 10 MOhm x km
Minimum bending radius fixed Core Ø = 8 mm: 4x core Ø Core Ø > 8-12 mm: 5x core Ø Core Ø > 12 mm: 6x core Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)
Structure:
Bare copper strand, in accordance with DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
core insulation made of PVC compound type TI1 in accordance with DIN VDE 0207-363-3/ DIN EN 50363-3 and IEC 60227-3
Properties:
The materials used in production are free of silicone and cadmium and free of substances that impair the wetting properties of paint.
Tests
PVC self-extinguishing and flame-retardant in accordance with DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 (corresponds to DIN VDE 0472 Part 804 test type B)
Use:
Can also be used for laying in tubes on, in and under plaster as well as in closed installation ducts. Must not be used for direct laying on platforms, gutters or trays. Approved for the internal wiring of devices, distributors and switchgear as well as for protected installation in and on luminaires with a nominal voltage of up to 1000 V AC or a DC voltage of up to 750 V against earth.
Standard length: 100 m.
Subject to technical changes.
Type: 29189
The item price shown refers to 100 meters Helukabel 29189-100
Questions & answers
What is the delivery time of Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC?
The article Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 29189-100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC always at the best possible price. We can give you a discount of 2% on Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 meters of Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC we can offer you a price of 132,95 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
Helukabel 29189-100 HELU 29189 H07V-K ring 1x6qmm dark blue single core PVC is offered by us in a sales unit of 100 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
