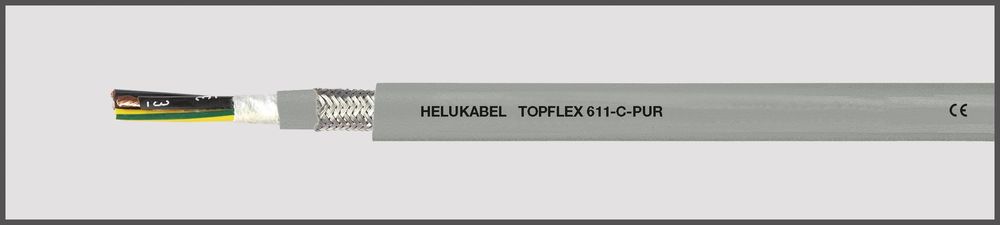

HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M
|
55.744,02 EUR |
|||||||||||
|
incl. 7.045,92 EUR copper surcharge ( 66.335,38 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Sales unit: 500 meters | |||||||||||
| Lieske Part No.: | 1103685 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 22977-500 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 22977-500:
Technical data:
Special PUR drag chain cable based on DIN VDE 0293, 0295, 0250, DIN VDE 0285-525-1 / DIN EN 50525-1Temperature range moving -30°C to +80°C stationary -40°C to +80°C
Nominal voltage U0/U 600/1000 V
Test voltage 4000 V
Coupling resistance max. 250 Ohm/km
Insulation resistance min. 20 MOhm x km
Minimum bending radius moving 10x cable Ø stationary 5x cable Ø
Structure:
Bare copper wire, in accordance with DIN VDE 0295 cl.6, extra-fine wire, BS 6360 cl.6, IEC 60228 cl.6
Core insulation made of PP
Core identification in accordance with DIN VDE 0293 black cores with continuous white number print
Cores twisted together with optimal lay lengths and stabilizing filler Fleece
wrapping to support sliding movement
Inner jacket made of TPE
Shielding braid made of tinned copper wires, coverage approx. 85%
Outer jacket made of PUR
Jacket color: gray (RAL 7001) with meter marking
Properties:
low adhesion, extremely abrasion-resistant, halogen-free, hydrolysis and microbe-resistant
Resistant to UV rays, oxygen and ozone
The materials used in production are silicone and cadmium-free and free from substances that impair paint wetting
Notes:
Unshielded analogue type: TOPFLEX 611-PUR
Use:
As an optimal supply cable for motor supply, especially for DNC motors, servo motors. The cables are specially designed for use in energy chains, handling machines, robots, machine tools, machining and processing machines. Optimum insulation materials ensure resistance to oils (including mineral oils), greases, coolants, hydraulic fluids and numerous alkalis and solvents. Favorable external diameters, reduced weights and improved torsional behavior ensure use in multi-shift operation with extremely high bending and alternating stress. Suitable for outdoor installation. EMC = Electromagnetic compatibility To optimize the EMC properties, we recommend contacting the copper braid on both sides and over a large area.
Standard lengths: 500 m, 1000 m
Subject to technical changes.
Type: TOPFLEX® 611-C-PUR
The item price shown refers to 500 meters Helukabel 22977-500
Questions & answers
What is the delivery time of HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M?
The article HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Helukabel 22977-500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M always at the best possible price. We can give you a discount of 2% on HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 meters of HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M we can offer you a price of 53.552,61 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
How many units does the article contain?
HELU TOPFLEX® 611-C-PUR HELUKABEL Motorl 611-C-PUR 4G35 mm² Standard length: 500 M is offered by us in a sales unit of 500 meters If you need a larger quantity, you can contact us at any time. We will make a special offer for you
