Helukabel 12036 HELU SY-JZ 3G1qmm Transparent control cable PVC
|
54,20 EUR |
|||||||||||
|
incl. 24,39 EUR copper surcharge ( 64,50 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1101467 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 12036 | ||||||||||
| UPC/EAN: | 4060892034466 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helukabel 12036:
Technical data:
Special PVC hose cable based on DIN VDE 0285-525-2-51 / DIN EN 50525-2-51Temperature range moving -15°C to +80°C stationary -40°C to +80°C
Nominal voltage U0/U 300/500 V
Test voltage 4000 V
Breakdown voltage min. 8000 V Minimum
bending radius moving 20x cable Ø stationary 6x cable Ø
Radiation resistance up to 80x106 cJ/kg (up to 80 Mrad)

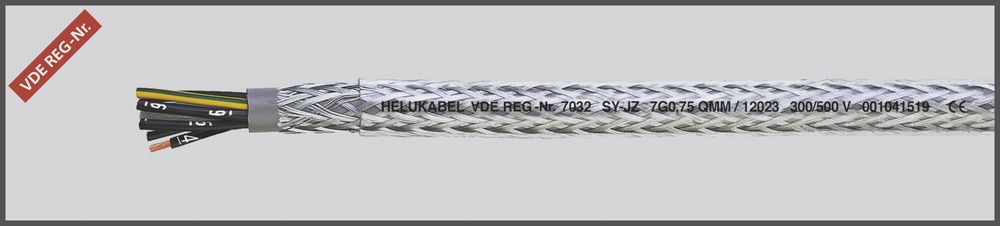

Structure:
Bare copper wire, according to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5
Core insulation made of special PVC
Core identification according to DIN VDE 0293 Black cores with continuous white numbering
Cores with optimal lay lengths stranded in layers
Inner jacket made of special PVC
Protective braid made of galvanized steel wire
Outer jacket made of special PVC
Jacket color: transparent with meter marking
Properties:
Largely oil-resistant, oil/chemical resistance
The materials used in production are silicone- and cadmium-free and free from substances that impair paint wetting
Tests:
PVC self-extinguishing and flame-retardant in accordance with DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
Notes:
'Cleanroom qualified\lashshielded analogue type: SY-JB
Use:
As a connection and control cable with medium mechanical stress for flexible application with free movement without tensile stress and without forced movement in dry rooms, but not outdoors, on machine tools, plant engineering, power plants and in data technology. The dense braid provides the cable with excellent protection against mechanical damage. The galvanization of the braid prevents corrosion and guarantees better solderability of the braid.
Standard lengths: 100 m, 500 m, 1000 m.
Technical changes reserved.
Type: SY-JZ 3G1qmm
