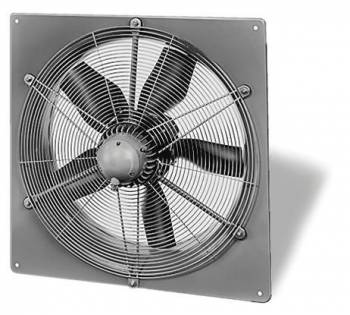

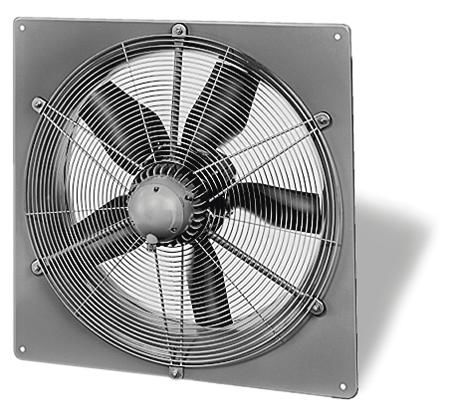

Helios Ventilatoren 5612 Helios High Performance Fan, HQD71/8/40, 90/3, 60KW IP54
|
7.934,85 EUR |
|||||||||||
|
( 9.442,47 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 688877 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 5612 | ||||||||||
| UPC/EAN: | 4010184056126 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Helios Ventilatoren 5612:
Axial high-performance fan
Axial high-performance fan in the still-
standing adjustable blades, square
tables mounting plate, inlet cone, di-
rectly driven.
Square mounting plate with attached form-
ter nozzle made of galvanized sheet steel.
Impeller with 7 blades made of thermoplastic.
High efficiency, low operating
noise. Vibration-free operation through
Dynamic balancing to grade G 6.3
VDI 2060 and DIN ISO 1940. Can be used in
The range of -30 to +60 degrees C.
Three-phase squirrel-cage motor with
Dahlander windings (pole-changing),
closed design, maintenance-free,
sealed, low noise ball bearing with
Long-term lubrication.
Fan-data (default)
Vol.str. at 0 Pa 29020 m3 / h
Vol.str. Betr.pkt. m3 / h
Maximum pressure increase enlarge Pa
Druckerh. Betriebspkt Pa
Funding density 1.2 kg/m3
Medium temperature 40 degC
Angle of 34 degrees
Operating time h
Speed ​​700/1 1/min
aufgenomm.0.9 Power / 3 kW
Weight 108 kg
91 Sound Power dB (A)
sound pressure at 4 m 71 dB (A)
Voltage 400/400 Volt
Current consumption 2,6 / 7,7 Amp
AC / AC D
Frequency 50 Hz
B insulation
Degree of protection IP 54
Explosion protection N
Temperature class
Make: Helios
Item: 5612
Type: HQD 710/8/4
______________________________________
Type: HQD71/8/40,90/3,60KW
