HAITWIN-DELPHIN AW-1708HD 1U 17.3-inch Full HD LCD Monitor KVM Keyboard Drawer () with integrated 8-port KVM switch for USB and PS / 2 servers (VGA).

Your rating:
Average rating
Rating for HAITWIN-DELPHIN AW-1708HD 1U 17.3-inch Full HD LCD Monitor KVM Keyboard Drawer () with integrated 8-port KVM switch for USB and PS / 2 servers (VGA).
( 4.4 / 5 ) 152 ratings
HAITWIN-DELPHIN AW-1708HDHAITWIN-DELPHIN AW-1708HDHAITWIN-DELPHIN AW-1708HD
HAITWIN-DELPHIN AW-1708HD
This image may differ from the desired article.
880,00 EUR
( 1.047,20 EUR incl. VAT )
2025-10-10Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
1x HAITWIN-DELPHIN AW-1708HD 1U 17.3-inch Full HD LCD Monitor KVM Keyboard Drawer () with integrated 8-port KVM switch for USB and PS / 2 servers (VGA).
Datasheet:file_download Download
Lieske Part No.:377135
Mfg Part No: AW-1708HD
Weight:5 kg
Graduated prices net
From piecesPrice per pieces
3866,80 EUR
6853,60 EUR
9840,40 EUR
12827,20 EUR

Product information for HAITWIN-DELPHIN AW-1708HD:

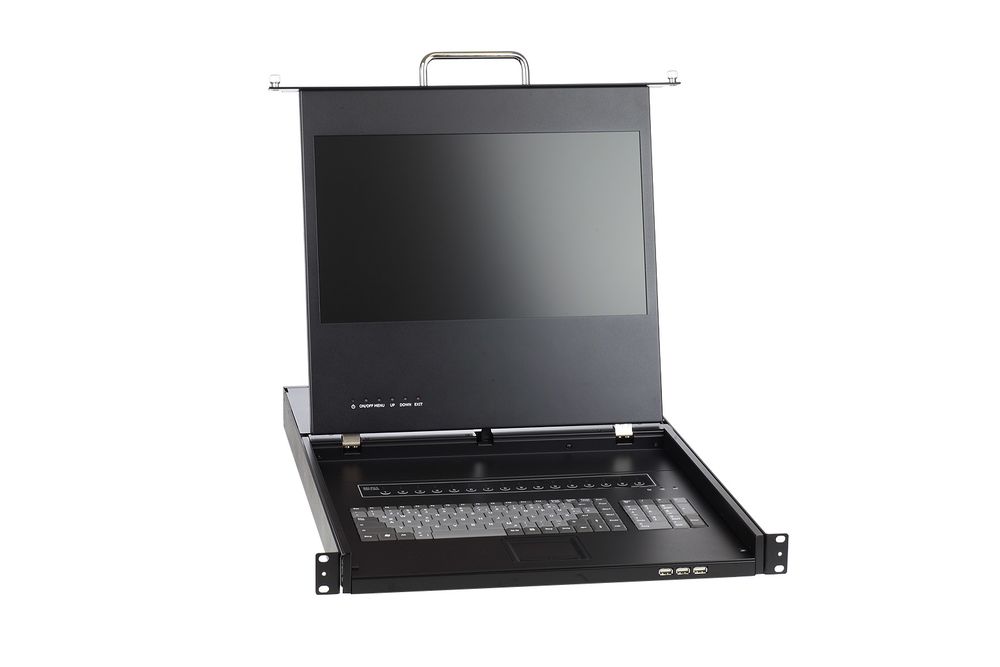

1U 17.3-inch Full HD LCD Monitor KVM Keyboard Drawer (AW-1708HD) with integrated 8-port KVM switch for USB and PS / 2 servers (VGA).

The picture quality of this console is simply defined as breathtaking.
Crystal Clear and shadow-free.
With Full HD and even at lower resolutions, the writing is due to the very high native resolution and thereby the resulting small pixel sizes always perfectly readable. Details are always well recognized.


- 17.3-inch Full HD panel 1920 x 1080 pixels

- LED backlight

- Keyboard and Touchpad

- Integrated 8-port Combo KVM Switch

Suitable Tife 1000 mm - for all the racks of 800th

Technical details:


- Only 600 mm deep

- Compact and ergonomic

- Very Easyinstallation

- Very well made

- External power supply 100V ~ 240VAC, 50 ~ 60Hz

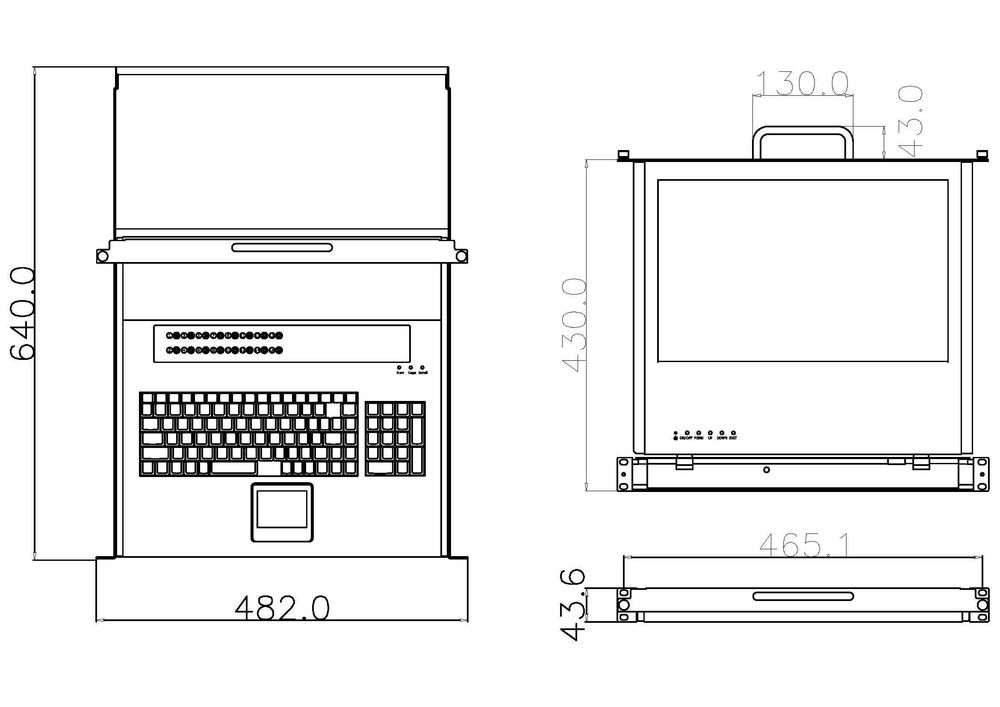

- 1U rack enclosure, 600 mm deep for 800 - 1000mm cabinets

Min distance between profiles at Re = 680 mm-1708HD
Max distance profile at AW-1708HD = 1085mm


- Opening angle of 0 ° - 105 ° (because the console is opened up to about 120 mm from the front, the console can always be opened to more than 90 °, even if are installed on the console cable guides, etc., to protrude out front.

- RoHS Compliant

- Integrated telescopic rail

- Front panel lockable with practical knurled screws

- RGB analog LCD display with a resolution of up to 1920 x 1080 and a brightness of 300 cd / m² (17.3 inches)

Features:

Housing:

- RoHS compliant

- High performance steel

- Casing color RAL 9005

- Adjustable telescopic rails for precise positioning

- 106-key Windows keyboard with touchpad

- Opening angle of 0 ° - 105 °

- Keyboard layouts: German (default); (U.S. English / French / Italian and Spanish on request)

Specifications LCD Monitor:

Display Size: 17.3 inches (439.42 mm)
Resolution: 1920 x 1080 maximum
Number of colors: 16.2 million
Frame rate: H: 30KHz - 70KHz / V: 55KHz - 75KHz
Viewing Angle: H: 140 ° / V: 130 °
Bandwidth: 80MHz
Brightness: 300 cd / m²
Contrast: 700:1
Response Time: 4 ms
Shadow mask: 0.1989 mm (H) x 0.1989 mm (V)
Backlight: LED

Specifications KVM Switch:

Connected computers: 8
Daisy Chain: 64 (with 8 port modules)
Port Selection: OSD / hot key / push button

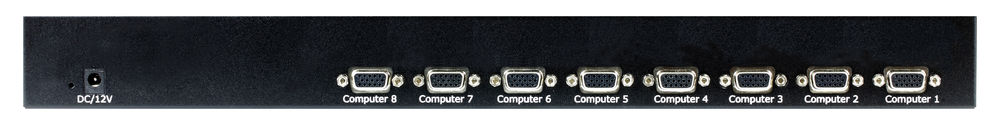

Connectors on the back: 8X DB-15 (PS / 2 / USB + VGA), flash port
Release: Maximum 1980x1080 FULL HD
Flash Connection: firmware update 6 pin mini-DIN mouse port
Suitable for all operating systems = OS independent

Available cable lengths PS / 2:
1.8 m (CAB-102E) / 3.0 m (CAB-103E) / 5.0 m (CAB-105E)
Available USB cable length:
1.8 m (KAB-102U) / 3.0 m (KAB-103U) / 5.0 m (KAB-105U)
Support:
Standard PS / 2 / USB ports for PC.
Keyboard / mouse permanently emulate irrespective of the switching position.

Scope of delivery:


- 1 x AW-1708HD KVM console

- Set: 2 x rear mounting bracket (adjustable depth)

- 1 x external power supply

- Manual (english) plus installation help in German


Product data sheet
Datasheet for HAITWIN-DELPHIN AW-1708HD
