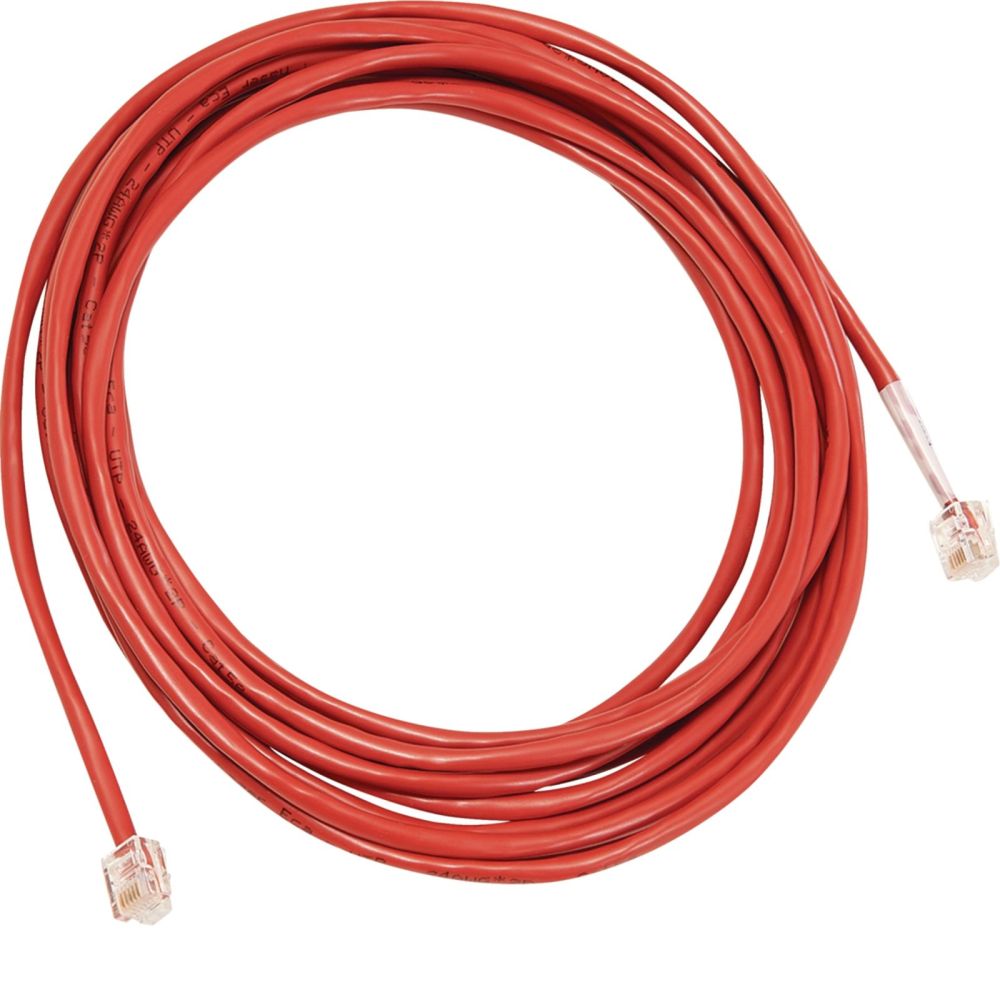

Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m

Your rating:
Average rating
product review for Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m
( 0 / 5 ) 0 ratings
Hager ZZ12LMN500
This image may differ from the desired article.
23,18 EUR
( 27,58 EUR incl. VAT )
≈ £19.40  |  ≈ $25.47
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m
Datasheet:file_download Download
Lieske Part No.:607452
Mfg Part No: ZZ12LMN500
UPC/EAN: 3250612276172
Weight:0.094 kg
Type:ZZ12LMN500
Graduated prices net
From piecesPrice per pieces
1522,31 EUR
3021,44 EUR
7020,57 EUR
10019,70 EUR

Product information for Hager ZZ12LMN500:

The Hager ZZ12LMN500 is a patch cable with two RJ12 connectors, specifically designed for use with LMN modules. The cable has a length of 5 m and is red, making it easily identifiable in the installation environment. It is used for secure and reliable connection of network or data modules in building automation technology, particularly in distributor and meter cabinet installations. The construction with 2x2 conductors and an AWG cross-section of 24 enables stable data transmission with minimal space requirement. The 1:1 pin assignment ensures direct, unaltered signal transmission between connection points.

Applications

The cable is intended for use in enclosed installations, for example in distributor boxes, meter cabinets, or other protected environments. The IP2X protection class protects against contact with fingers and larger objects, but not against water or dust. Therefore, it is not suitable for outdoor use or in damp environments. The red color serves as a visual identifier and facilitates identification in cable management.

Functions and Features in Detail

The patch cable features two RJ12 connectors at both ends, designed for connection with LMN modules. These connectors are made of plastic and provide a mechanically stable connection. The cable construction 2x2 means that two conductors are present per wire pair, which is sufficient for data transmission in simple network applications. The cable is unshielded, simplifying installation but providing no electromagnetic shielding. The surge voltage withstand is 6000 V, and the insulation withstand is 4 kV, ensuring electrical safety under normal operating conditions.

Technology Explained Simply

The designation RJ12 refers to a standard connector commonly used in telephone and data installations. The 1:1 pin assignment means that each contact at one end is directly connected to the corresponding contact at the other end, without rerouting or cross-connection. The AWG-24 cable has a cross-section of approximately 0.20 mm², which is sufficient for low data rates and short distances. The IP2X protection class protects against contact with fingers, but not against water or dust, so the cable is intended exclusively for enclosed, dry rooms. The red color serves as a visual identifier and is not associated with any specific function.

Compatibility and Accessories

The cable is specifically developed for LMN modules used in building automation technology, for example in meter cabinets or distributors. The RJ12 connectors are universally compatible with corresponding sockets in these modules.

Installation and Mounting

Installation is performed by simply plugging the RJ12 connectors into the corresponding sockets of the LMN modules. The cable is unshielded and requires no special mounting methods. The length of 5 m allows flexible positioning of modules within a distributor or cabinet. The red color facilitates orientation in the cable run. The cable is not oil-resistant and not suitable for use in environments with aggressive chemicals.

Operational Advantages

The Hager ZZ12LMN500 provides a reliable and simple connection solution for LMN modules. The clear color marking and direct 1:1 pin assignment reduce error sources during installation. The 2x2 cable construction and AWG-24 cross-section are sufficient for typical applications in building automation technology. The IP2X protection class prevents accidental contact, while the unshielded design simplifies installation. The cable is RoHS-compliant and REACh-SVHC-free, ensuring environmental compatibility. The statement halogen-free" in the datasheet contradicts the "No indication in the technical description; therefore, this property is not considered in the text.

General
Cable typeOther
CategoryOther
Length5 m
Type of connector connection 1Other
Type of connector connection 2Other
Case connector connection 1Other
Material connector of connector housing connection 1Plastic
Case connector connection 2Other
Material connector of connector housing connection 2Plastic
Colour outer sheathRed
Anti-kink sleeveNone
Colour anti-kink sleeveRed
Cable construction2x2
AWG-size24
Pin assignment1:1
Degree of protection (IP)IP2X
NVP value65 %
Locking leverno
Flame retardantNo
Oil resistant (acc. EN 60811-404)no
Suitable for cable guide chainno
Halogen free (acc. IEC 60754-2)no


Product data sheet
Datasheet for Hager ZZ12LMN500, EAN: 3250612276172

Questions & answers

What is the delivery time of Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m?

The article Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ZZ12LMN500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m always at the best possible price. We can give you a discount of 2% on Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Hager ZZ12LMN500 patch cable with 2xRJ12 connector for LMN module, color red, length 5 m we can offer you a price of 22,31 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
