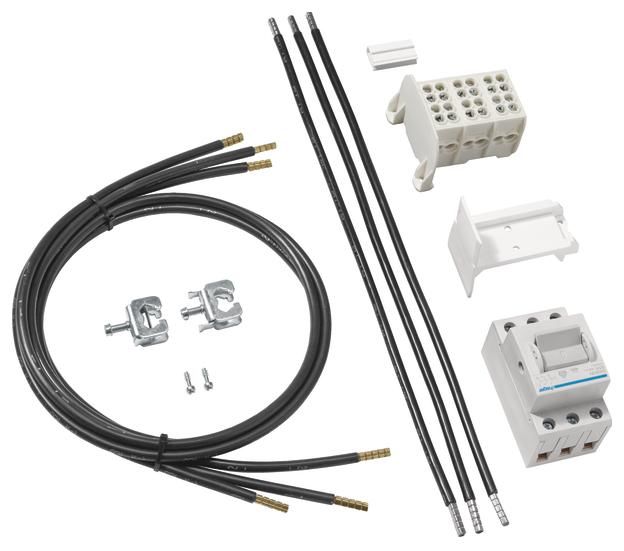

Hager ZY01PV mounting package , content_copy

Equipment package, universal Z, 10mm², PV overcurrent, < 4.6kVA for 1-field eHZ cabinets. Meter cabinet solution cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted or partially recessed installation. Consists of a cabinet with a door made of powder-coated, baked-in, stably profiled 1mm thick sheet steel. Interior lining made entirely of plastic. Cable entries at the top and bottom through built-in plastic flange plates. Pre-punched part on the back of the plastic part. Busbar bushings as flanges on both sides that can be opened without tools in the lower area as a way of connecting busbars between different cabinets or in conjunction with a cable junction box and connection set. In addition to the bushing in the NAR, there are also openings in the area of the AAR (for heights of 1100 and 1400 mm) and RfZ (for heights of 1100 mm). Door flush with the front with internal, adjustable hinges, can be opened on the right or left with an opening angle of 110°. Door lock with cam lock. Door lock can be replaced with other locks. Cabinets can be flanged next to each other or one above the other. Cabinet size 1 to 5 fields with 72 to 540 space units (PLE). Note: The main line must be inserted into the lower connection compartment of the meter cabinet from below or from the side and connected there in accordance with VDE-AR-N 4100:2019-04. Height: __ mm (1100mm or 1400mm) Width: __ mm Depth: 205 / 160 mm, RAL color: 9010 Protection type 44, protection class II Nominal current of the busbar system 250 A Design in accordance with VDE-AR-N 4100:2019-04 Meter system for __ meter space(s). According to the technical connection conditions (TAB) of the VNB __ for: __ Electronic household meters (eHZ) or __ meters with 3-point fastening (3HZ). __ for supply systems with normal household consumption max. 63 A (10mm²) according to DIN 18015-1 (__ apartments, __ general, __ reserve, __ heat pump) __ for continuous current applications max. 32 A (10 mm²) according to VDE-AR-N 4100:2019-04 (e.g. PV up to 22 KW) __ for continuous current applications max. 44 A (16 mm²) according to VDE-AR-N 4100:2019-04 (e.g. PV up to 30 KW) __ for meter locations with more than 63 A in intermittent operation or 44 A in continuous operation (transformer measurement) Nominal current _ A, nominal power _ kW __ Tariff ripple control receiver as three-point version alternatively __ Tariff ripple control receiver as top-hat rail version __ Distribution panel (__ PLE), with/without busbars for feeding in __ Distribution panel (__ PLE) with APZ room according to VDE-AR-N 4100:2019-04, with/without busbars for feed-in __ Communication panel, 1- or 2-panel __ Communication panel with APZ room according to VDE-AR-N 4100:2019-04, with/without busbars for feed-in __ piece SLS switch Hager HTS3xxE in __ A.. Voltage tap for power supply additional devices according to VDE-AR-N 4100:2019-04: __ before the SLS with fuse box pluggable 25 kA __ before the SLS with LS switch 10 A / 25 kA __ behind the SLS with fuse box pluggable 25 kA.Surge protection with combination arrester type 1/2/3 for busbar mounting in the UAR. To comply with the requirements of DIN VDE 0100-443 and -534: ___for TNS/TT network, without external lightning protection, back-up fuse in the HAK ? 160 A ___for TNC network, without external lightning protection, back-up fuse in the HAK ? 160 A ___for TNS/TT network, with external lightning protection, back-up fuse in the HAK ? 160 A ___for TNC network, with external lightning protection, back-up fuse in the HAK ? 160 A ___for TNS/TT network, with external lightning protection, back-up fuse in the HAK ? 315 A ___for TNC network, with external lightning protection, back-up fuse in the HAK ? 315 A protection for cellar, washing machine, dryer (if TAB / DIN compliant) per WE (max. 6 PLE) __ pieces FI/LS switch 10 kA, 16 A, 30 mA (ADA516D). General distribution panel equipped with: __ pieces LS switch 6 kA, 16 A (MBS116) __ pieces FI/LS switch 6 kA, 16 A, 30 mA (ADS916D) __ pieces RCD type 40 A 4-pole, 30 mA (CDS440D). Consisting of: __ pieces ZB__S, meter cabinet __ pieces ZK__ Complete panel for __ meters __ selected make/type: HAGER/univers Z or equivalent, supply, install and ready for operation
Type: ZY01PV
