Hager ZH3ET27 complete field 1feld 1100, 1ZP
|
574,94 EUR 599,15 EUR |
|||||||||||
|
( 684,18 EUR incl. VAT ) ≈ £494.45 | ≈ $653.71 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 505585 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ZH3ET27 | ||||||||||
| UPC/EAN: | 3250617685023 | ||||||||||
| Weight: | 4.725 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ZH3ET27:

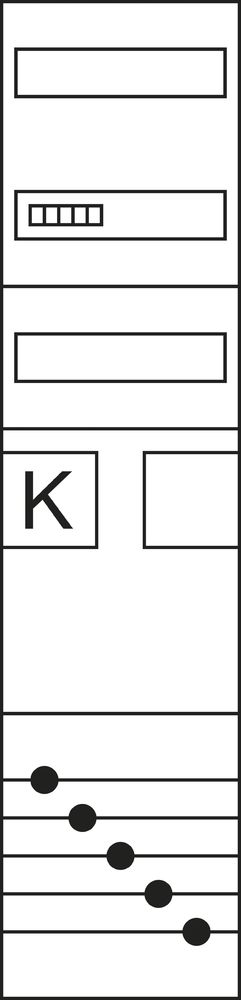

Complete panel, universZ, 1ZP, BKE-I, 1-field, control terminal 7-pin, HLAK 5-pin. Complete panel / installation kit univers Z for eHZ for setting up meter locations in accordance with DIN 43870, quick installation in the cabinet using a snap-in system, equipped and wired in accordance with VNB TAB regulations for eHZ meter locations in accordance with DIN VDE 603-1 (VDE 0603-1).
Upper connection compartment: 1-row, height 150 mm with one top hat rail, 2-row, height 300 mm with two top hat rails, equipped with 3-/4- or 5-pole main line branch terminals, finger-safe in accordance with BGVA3 or equipped with __________ __________ ___________ -meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ meter support plate with integrated additional space (for communication and control devices).
Additional space: 1-field, height 150 mm, closed with cover, pre-punched for 12 PLE, sealable, with top hat rail 12 PLE, openings for cable routing.
Lower connection compartment: Height 300 mm equipped with top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________.
Type: ZH3ET27
Upper connection compartment: 1-row, height 150 mm with one top hat rail, 2-row, height 300 mm with two top hat rails, equipped with 3-/4- or 5-pole main line branch terminals, finger-safe in accordance with BGVA3 or equipped with __________ __________ ___________ -meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ meter support plate with integrated additional space (for communication and control devices).
Additional space: 1-field, height 150 mm, closed with cover, pre-punched for 12 PLE, sealable, with top hat rail 12 PLE, openings for cable routing.
Lower connection compartment: Height 300 mm equipped with top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________.
Type: ZH3ET27
Questions & answers
What is the delivery time of Hager ZH3ET27 complete field 1feld 1100, 1ZP?
The article Hager ZH3ET27 complete field 1feld 1100, 1ZP is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ZH3ET27 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ZH3ET27 complete field 1feld 1100, 1ZP always at the best possible price. We can give you a discount of 2% on Hager ZH3ET27 complete field 1feld 1100, 1ZP if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Hager ZH3ET27 complete field 1feld 1100, 1ZP we can offer you a price of 544,76 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
