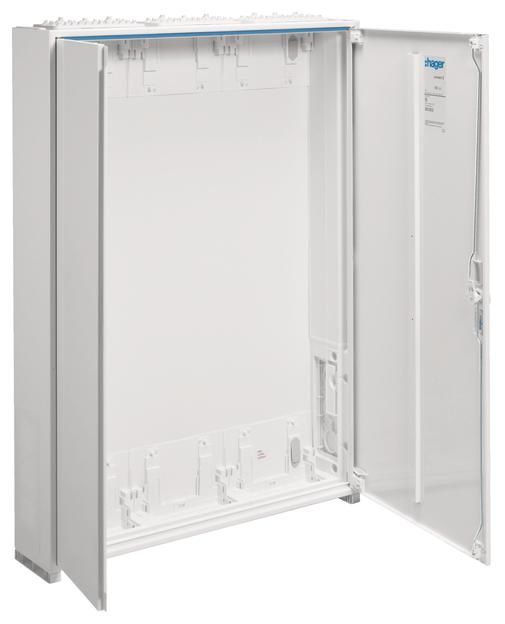

Hager ZB33ES meter cabinet IP44 SKII 1100x800x160mm content_copy

Empty cabinet, universZ, 1100x800x160mm, protection class II, IP44, 252 space units. Wall-mounted cabinet or built-in wall cabinet with VDE mark (production monitoring) according to DIN VDE 0603-1, dimensional standard according to DIN 43 870, for surface-mounted or flush-mounted installation or partially recessed installation, for setting up a metering system up to 355 A, AC 230/400 V 50 Hz, protection class IP44, IP44, DIN VDE 0470-1, protection class II, protection class IP3X behind the door, air and creepage distances according to DIN EN 60664-1. Consists of cabinet with door, from 800 mm width with two doors, body and doors made of powder-coated, baked-in, sturdily profiled 1 mm thick sheet steel. Inner lining made of insulating material, 2-component cable entries that can be removed without tools at the top and bottom. Back with pre-punches in the plastic part for installing 2-component cable entries, removable busbar bushings integrated on the side with pre-punches for cable entries. Door flush with internal, adjustable hinges, can be hinged on the right or left, opening angle = 110°. Door lock with sash and rod lock as a three-point lock, door lock can be replaced with other locks. Cabinets can be mounted next to each other and one above the other, cabinets can be connected mechanically and electrically next to each other and one above the other.
Type: ZB33ES
