Hager ZAF101A
fixed location distribution cabinet size 1 stationary content_copy

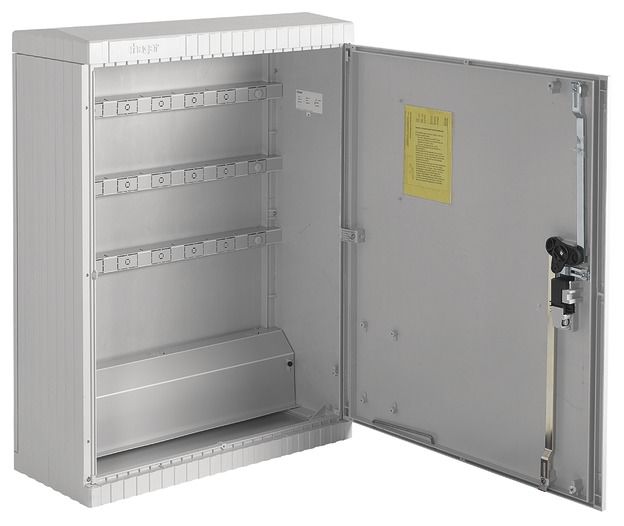

Fairground distribution cabinet size 1, stationary, 1-door, with SaS 30x6mm, 5-pole. Stationary power distribution cabinet for fairgrounds and markets, protection class IP 44, made of glass fiber reinforced polyester FS 833.5 in accordance with DIN EN 14598 with recycled material. DIN VDE 0100 Part 722 regulates the installation of temporary structures, wagons and caravans in the fairground style. Fairground distribution cabinet with busbar system for installing socket strips for individual configuration. Profiled housing in rib design. With busbar system 5-pole E-Cu 30 x 6 mm. Door with opening angle of 180 degrees when free-standing and 90 degrees when housings are connected in series. Doors can be removed, door can be hinged on the left or right. Locking with swivel lever, three-point bascule lock, double locking, a profile half cylinder is installed. Ventilation takes place via labyrinth-like ventilation ducts and is protected against penetration by foreign objects. Note: Depending on the model, the fairground distribution cabinet can be permanently mounted with a fairground buried base or a fairground base/floor-mounted base. When installing socket strips in fairground distribution cabinets and columns that can be operated by laypersons, the person installing the system must ensure that they are protected against direct contact.
Type: ZAF101A
