Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID
|
1.277,10 EUR |
|||||||||||
|
( 1.519,75 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 2051608 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | XEV1R22T2 | ||||||||||
| UPC/EAN: | 4012740984102 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for HAGER XEV1R22T2:

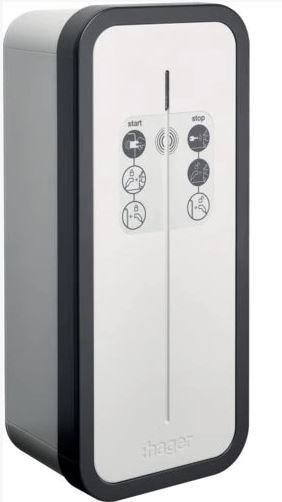

Wallbox charging station with UV-resistant plastic housing for charging electric or plug-in hybrid vehicles. Charging mode Mode 3 according to DIN EN IEC 61851-1 (VDE 0122-1) via Mode 3 socket type 2, fused via the supply line of the charging station 32 A (3-phase). Permanently installed charging station for indoor/outdoor use. Free use or access authorization via RFID authentication.
Consisting of a wall housing, cable entry for power supply, brightness sensor, RFID reader (sensor) and LED display (status, charge level, error). The operating mode (1 or 3 phase) and the charging current (10 - 32 A) are set in the integrated charging controller.
The charging station is connected to a backend system for monitoring and billing via the OCPP protocol. Commissioning is carried out via the embedded web server via Wifi or Ethernet.
The optional load manager (LM) allows several charging stations to be networked with one another. Load management supports both static and dynamic load management with integrated direct measurement or direct converter connection. The power supply to the charging station must have a separate circuit. Connecting multiple charging stations to the same circuit is not permitted.
Each charging station must be protected with a combined residual current/line circuit breaker (RCBO) type A or separately with a residual current circuit breaker (RCD) type A and a line circuit breaker (MCB). A type B FI circuit breaker is not necessary as a 6 mA DC residual current detection is integrated.
The charging controller is configured when used for the first time via the integrated WiFi hotspot or the LAN interface.
Note: A cable holder, RFID cards and feet for free-standing installation are optionally available. Sales unit: 1 ST.
Type: XEV1R22T2
Questions & answers
What is the delivery time of Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID?
The article Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of HAGER XEV1R22T2 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID always at the best possible price. We can give you a discount of 2% on Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Hager XEV1R22T2 charging station witty share up to 22kW OCPP for load management RFID we can offer you a price of 1.238,79 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
