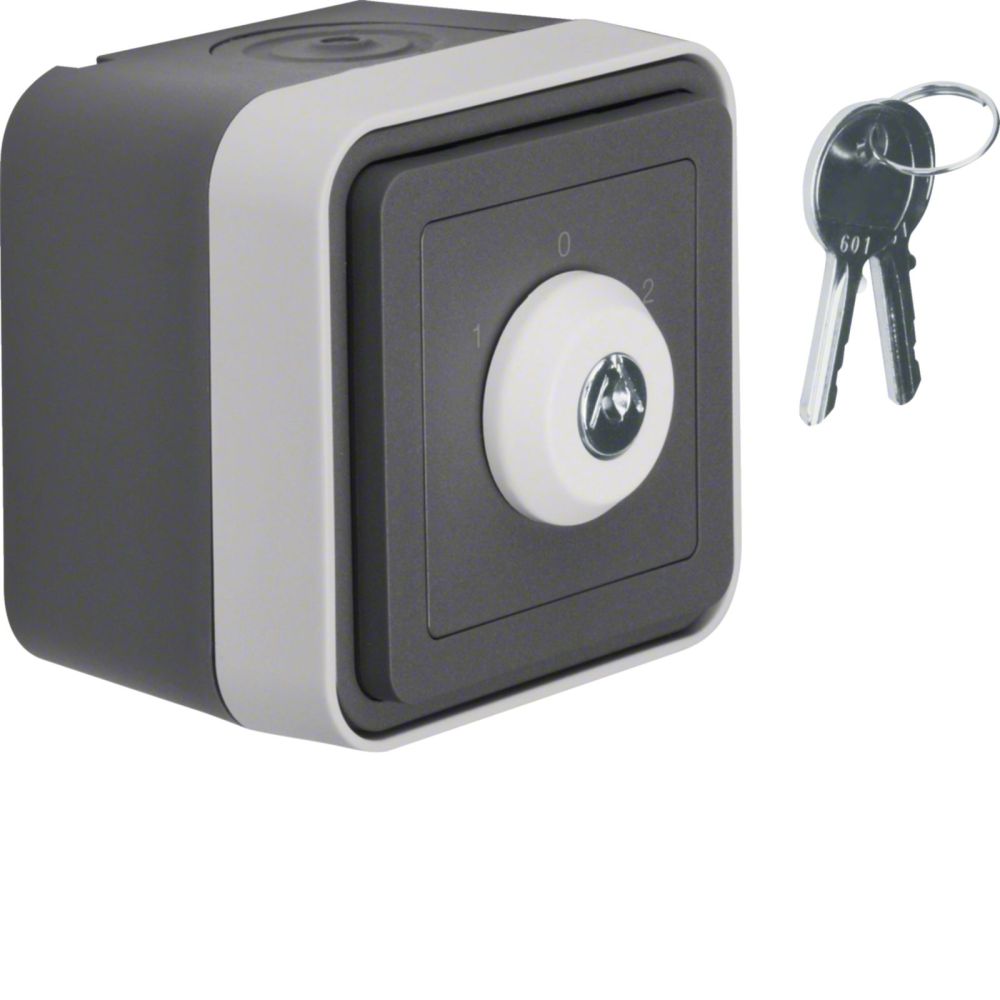

Hager WNC036 key switch AP 1p marking '1' '0' '2' W.1 IP55 grey

Your rating:
Average rating
product review for Hager WNC036 key switch AP 1p marking '1' '0' '2' W.1 IP55 grey
( 0 / 5 ) 0 ratings
Hager WNC036
This image may differ from the desired article.
122,55 EUR
( 145,83 EUR incl. VAT )
≈ £102.57  |  ≈ $134.68
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager WNC036 key switch AP 1p marking '1' '0' '2' W.1 IP55 grey
Datasheet:file_download Download
Lieske Part No.:892129
Mfg Part No: WNC036
UPC/EAN: 3250617170369
Weight:0.13 kg
Type:WNC036
Graduated prices net
From piecesPrice per pieces
5116,12 EUR
10109,68 EUR
15103,25 EUR
2096,81 EUR

Product information for Hager WNC036:

The Hager key switch WNC036 is a surface-mounted device for mechanical control of roller shutters, with the function limited to operation via a removable key. The device is designed as a single-pole switch and features an IP55 protection rating, making it suitable for use in indoor environments as well as in slightly damp or dusty conditions. The surface is matte and grey, corresponding to RAL number 7011, allowing it to blend visually into standard installations. The housing is made of halogen-free thermoplastic, suitable for use in electrical installations.

Key switch
The switch is equipped with a removable key that can be removed in the 0 position. This enables secure disconnection and prevents unintended operation. Operation is performed via three positions, marked with the labels '1', '0', and '2'. These positions are used to control roller shutters, with the exact assignment of positions to functions (e.g. Up, Stop, Down) determined by the specific application. The switching function is purely mechanical and does not require electronic control.

Applications
The switch is specifically designed for controlling roller shutters and is suitable for installations in residential and commercial buildings. The IP55 protection rating protects against dust and splashing water, making it suitable for outdoor use as well, provided the mounting conditions are appropriate. The operating temperature range is between -15 °C and +30 °C, allowing use in climatically moderate regions. Mounting is done surface-mounted using screw fastening, with a mounting width of 76 mm and mounting height of 78 mm. The mounting depth is 32 mm, allowing the device to be installed in standard installation boxes.

Functions and equipment in detail
The device features a screw terminal as the connection method, ensuring a secure and durable connection to the wiring system. The rated voltage is 240 V, and the rated current is 10 A, sufficient for controlling roller shutter drives. The frequency range is between 50 and 60 Hz, enabling use in European and international power networks. The surface is untreated and matte, resulting in a robust and easy-to-maintain surface. The device is made of halogen-free thermoplastic, increasing environmental compatibility and reducing fire hazard.

Technology explained simply
The IP55 protection rating means the device is protected against dust and splashing water, making it suitable for indoor and outdoor use, provided there is no direct water exposure. Mechanical operation is performed via a key that can be removed in the 0 position to ensure disconnection. The switching function is purely mechanical, without electronic control, which increases reliability and simplifies maintenance. The screw terminals ensure a secure and durable connection, required for electrical installation.

Compatibility and accessories
The switch is specifically designed for controlling roller shutters and can be integrated into existing roller shutter systems. Mounting is surface-mounted, with dimensions (76 mm width, 78 mm height) matched to standard installation boxes. Use in combination with other Hager products is possible, provided electrical and mechanical requirements are compatible.

Mounting and installation
Mounting is done surface-mounted using screw fastening. The mounting width is 76 mm, mounting height is 78 mm, and mounting depth is 32 mm. The device is designed for use in standard installation boxes. The connection method is a screw terminal, ensuring a secure and durable connection to the wiring system. Installation requires no special tools, except a screwdriver for fastening.

Advantages in operation
The switch provides secure and reliable control of roller shutters through mechanical operation. The IP55 protection rating allows use in damp or dusty environments. The removable key operation prevents unintended use and enables secure disconnection. The use of halogen-free thermoplastic increases environmental compatibility and reduces fire hazard. The screw terminals ensure a secure and durable connection, required for electrical installation.

General
Assembly arrangementBasic element with complete housing
Model1-pole switch
Number of poles2
Method of operationKey
Mounting methodSurface mounted (plaster)
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingMatt
Type of fasteningMounting with screw
ColourGrey
RAL-number (akin)7011
Suitable for degree of protection (IP)IP55
Rated current10 A
Nominal voltage240
Number of buttons0
Number of modules (module system)2
Min. depth of built-in installation box0 mm
Built-in depth32
Built-in diameter0 mm
Built-in height78 mm
Built-in width76 mm
Connection typeScrewed terminal
Depth of device89.9
Height of device78
Width of device76 mm
Mechanical controllableyes
Electronic controllableno
Halogen freeyes
Transparentno
Label space/information surfaceno
For awningsno
For roller blindsyes
IFTTT support availableno


Product data sheet
Datasheet for Hager WNC036, EAN: 3250617170369
