Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series

Your rating:
Average rating
product review for Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series
( 0 / 5 ) 0 ratings

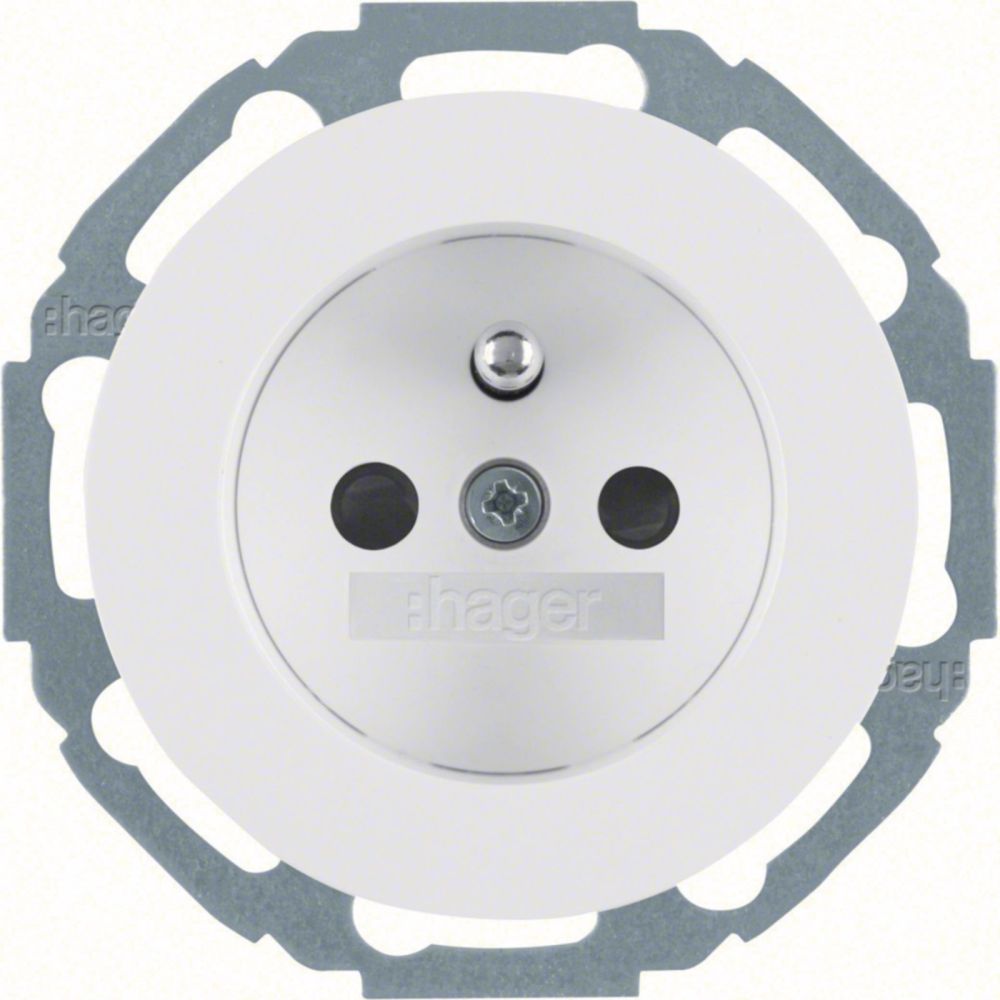

Hager WLS1800WG
This image may differ from the desired article.
26,22 EUR
( 31,20 EUR incl. VAT )
≈ £21.95  |  ≈ $28.82
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series
Datasheet:file_download Download
Lieske Part No.:895408
Mfg Part No: WLS1800WG
UPC/EAN: 3250610092248
Weight:0.076 kg
Type:WLS1800WG
Graduated prices net
From piecesPrice per pieces
1025,24 EUR
2524,25 EUR
5023,27 EUR
7522,29 EUR

Product information for Hager WLS1800WG:

The Hager socket outlet WLS1800WG is a flush-mounted socket module from the R.Classic series, finished in polar white glossy. It features a protective earth pin and is equipped with enhanced shock protection (BS), ensuring safe use even in case of accidental contact. The device is designed for mounting in flush-mounted boxes and is suitable for standard installations in residential and commercial buildings. The socket outlet is designed as a basic element with a central cover plate, enabling flexible mounting in both horizontal and vertical orientations.

Applications
This socket outlet is intended for indoor use, where electrical supply for devices with a rated current up to 16 A and a rated voltage of 250 V is required. The protection class IP20 safeguards against contact with fingers and larger objects, but does not protect against water or dust. The impact resistance IK05 provides protection against mechanical impacts during normal operation. The operating temperature ranges from -5 °C to +35 °C, allowing use in air-conditioned rooms and under normal ambient conditions.

Functions and Equipment in Detail
The socket outlet features a protective earth pin and two active round contacts. Connections are made via screw terminals, designed for conductor cross-sections from 1.5 to 2.5 mm². Mounting is achieved using claw and screw fastening, with a minimum depth of the device box of 40 mm. The device dimensions are 71 mm (height), 71 mm (width), and 40.9 mm (depth). The socket outlet is not equipped with a signal lamp, orientation lighting, function lighting, fine fuse, residual current protection, or overvoltage protection. There is no labeling surface, no text fields, and no integrated pass-through function. The socket outlet is not lockable and does not feature an ejection mechanism.

Technology Explained Simply
The enhanced shock protection (BS) ensures that the conductive parts of the socket outlet are not directly accessible, increasing safety. The screw terminals allow for a secure and durable connection of the conductors. The use of thermoplastic as the material ensures high mechanical stability and heat resistance. The polar white color (similar to RAL 9010) and glossy surface provide a uniform appearance that integrates well into modern interior designs. The socket outlet is halogen-free and complies with RoHS and REACh-SVHC standards, ensuring environmental compatibility.

Compatibility and Accessories
The socket outlet is designed for the R.Classic series and can be combined with other modules from this series. The flexible mounting in 45° increments allows adaptation to various installation situations. The socket outlet does not feature additional functions such as USB connections, switching functions, or integrated fuses.

Mounting and Installation
Mounting is performed in flush-mounted boxes with a minimum depth of 40 mm. Fixing is done via claw and screw fastening, allowing the socket outlet to be mounted both horizontally and vertically. Pass-through wiring is possible, enabling flexible cabling in the installation. The socket outlet is not suitable for outdoor use, as it is not waterproof.

Operational Advantages
The socket outlet provides a safe and reliable power supply for electrical devices. The enhanced shock protection and screw terminals ensure a secure connection. The use of halogen-free thermoplastic and compliance with RoHS and REACh-SVHC contribute to environmental compatibility. The glossy surface in polar white provides an attractive appearance that fits well in modern interiors. The flexible mounting in 45° increments allows for adaptable installation at various locations.

Functions
The socket outlet features a protective earth pin and two active round contacts. Connections are made via screw terminals, designed for conductor cross-sections from 1.5 to 2.5 mm². Mounting is achieved using claw and screw fastening, with a minimum depth of the device box of 40 mm. The device dimensions are 71 mm (height), 71 mm (width), and 40.9 mm (depth). The socket outlet is not equipped with a signal lamp, orientation lighting, function lighting, fine fuse, residual current protection, or overvoltage protection. There is no labeling surface, no text fields, and no integrated pass-through function. The socket outlet is not lockable and does not feature an ejection mechanism.

Technology Explained Simply
The enhanced shock protection (BS) ensures that the conductive parts of the socket outlet are not directly accessible, increasing safety. The screw terminals allow for a secure and durable connection of the conductors. The use of thermoplastic as the material ensures high mechanical stability and heat resistance. The polar white color (similar to RAL 9010) and glossy surface provide a uniform appearance that integrates well into modern interior designs. The socket outlet is halogen-free and complies with RoHS and REACh-SVHC standards, ensuring environmental compatibility.

Compatibility and Accessories
The socket outlet is designed for the R.Classic series and can be combined with other modules from this series. The flexible mounting in 45° increments allows adaptation to various installation situations. The socket outlet does not feature additional functions such as USB connections, switching functions, or integrated fuses.

Mounting and Installation
Mounting is performed in flush-mounted boxes with a minimum depth of 40 mm. Fixing is done via claw and screw fastening, allowing the socket outlet to be mounted both horizontally and vertically. Pass-through wiring is possible, enabling flexible cabling in the installation. The socket outlet is not suitable for outdoor use, as it is not waterproof.

Operational Advantages
The socket outlet provides a safe and reliable power supply for electrical devices. The enhanced shock protection and screw terminals ensure a secure connection. The use of halogen-free thermoplastic and compliance with RoHS and REACh-SVHC contribute to environmental compatibility. The glossy surface in polar white provides an attractive appearance that fits well in modern interiors. The flexible mounting in 45° increments allows for adaptable installation at various locations.

General
ModelEarthing pin
Number of active Pins (round)2
Number of active Pins (flat)0
Number of modules (module system)1
Number of socket outlets switchable0
Number of phases1
Imprint/indicationNone
Connection typeScrewed terminal
ColourWhite
RAL-number (akin)9010
Special power supplyNone
Mounting methodFlush mounted (plaster)
Type of fasteningMounting with claw and screw
MaterialPlastic
Material qualityThermoplastic
Surface protectionUntreated
Surface finishingGlossy
Nominal current16 A
Nominal voltage250 V
Frequency60 Hz
Rated fault current0 mA
Suitable for degree of protection (IP)IP20
Impact strengthIK05
Width of device71 mm
Height of device71 mm
Depth of device40.9 mm
Min. depth of built-in installation box40 mm
Assembly arrangementBasic element with central cover plate
Mounting directionHorizontal and vertical
Number of ports USB-A0
Number of socket outlets1
With signal lampno
With hinged lidno
With child-protectionyes
Label space/information surfaceno
Transparentno
Lockableno
Eject-mechanismno
Insulated mountingyes
With function lightingno
With orientation lightingno
Over voltage protectionno
Fault current protectionno
With miniature fuseno
Halogen freeyes
Antibacterial treatmentno
With on/off switchno
With loop through functionyes
Rotated central insertyes
Concurrently switching N-neutralno
IFTTT support availableno


Product data sheet
Datasheet for Hager WLS1800WG, EAN: 3250610092248

Questions & answers

What is the delivery time of Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series?

The article Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager WLS1800WG to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series always at the best possible price. We can give you a discount of 2% on Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Hager WLS1800WG socket outlet with protective earth pin and enhanced BS series we can offer you a price of 25,24 EUR per piece. The more you buy, the cheaper the article will be.
