Hager VU60NW UP Volta, 5 MP, outlet, patch panel
|
471,58 EUR 491,44 EUR |
|||||||||||
|
( 561,18 EUR incl. VAT ) ≈ £405.56 | ≈ $536.19 plus delivery charges: 83,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |||||||||||
| In Stock: 2 pieces | |||||||||||
| Lieske Part No.: | 712827 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | VU60NW | ||||||||||
| UPC/EAN: | 3250616615779 | ||||||||||
| Weight: | 5.43 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Wall, Stand, distribution systems from HagerFurther products in category Wall, Stand, distribution systems
All products of Hager
Product information for Hager VU60NW:

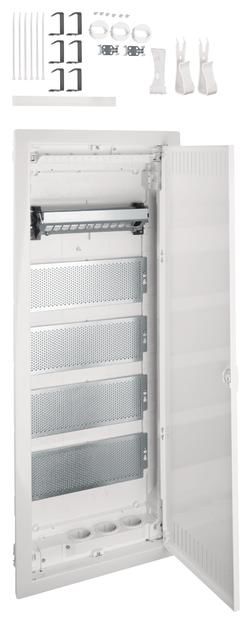

Multimedia, volta, UPV, 5-row, with slotted sheet steel door. Small flush-mounted installation distributor made of plastic, in accordance with DIN VDE 61439-3, suitable for use in residential buildings in accordance with DIN 18015 and for the installation of protectively insulated VDI components. Protection class IP30, protection class II protectively insulated.
Consisting of: plastic wall box with standard cable clamp, break-out cable entry slide with snap fastening, integrated spirit level and galvanized sheet steel fastening straps. Rotatable cover frame with ventilation door made of sheet steel, powder-coated and baked, with 15 mm plaster compensation. Ventilation door, flush with the front with internal manually operated hinges. Door lock with flush handle recess and automatically folding back handle, door hinge on the right or left without dismantling the cover frame.
Upper connection compartment: Patch panel and DIN top hat rail snapped on insulated to accommodate different communication modules, there are 2 screw fastenings on the patch panel for the required functional equipotential bonding in accordance with DIN EN 50310 (VDE 0800-2-310). Labeling option with enclosed labeling strip for port labeling. Pre-assembled perforated mounting plates made of galvanized sheet steel with 3.2 mm holes are installed. A universal bracket can be hung directly on the perforated plate for screwless fastening of VDI components.
A 3-way protective contact socket (rotatable 90 degrees) is installed in the lower connection compartment. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II.
Type: VU60NW
Consisting of: plastic wall box with standard cable clamp, break-out cable entry slide with snap fastening, integrated spirit level and galvanized sheet steel fastening straps. Rotatable cover frame with ventilation door made of sheet steel, powder-coated and baked, with 15 mm plaster compensation. Ventilation door, flush with the front with internal manually operated hinges. Door lock with flush handle recess and automatically folding back handle, door hinge on the right or left without dismantling the cover frame.
Upper connection compartment: Patch panel and DIN top hat rail snapped on insulated to accommodate different communication modules, there are 2 screw fastenings on the patch panel for the required functional equipotential bonding in accordance with DIN EN 50310 (VDE 0800-2-310). Labeling option with enclosed labeling strip for port labeling. Pre-assembled perforated mounting plates made of galvanized sheet steel with 3.2 mm holes are installed. A universal bracket can be hung directly on the perforated plate for screwless fastening of VDI components.
A 3-way protective contact socket (rotatable 90 degrees) is installed in the lower connection compartment. The sockets can be connected directly via a connection terminal. The sockets can be fitted with an enclosed protective contact cover to comply with protection class II.
Type: VU60NW
Questions & answers
What is the delivery time of Hager VU60NW UP Volta, 5 MP, outlet, patch panel?
The article Hager VU60NW UP Volta, 5 MP, outlet, patch panel is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager VU60NW to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager VU60NW UP Volta, 5 MP, outlet, patch panel always at the best possible price. We can give you a discount of 2% on Hager VU60NW UP Volta, 5 MP, outlet, patch panel if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager VU60NW UP Volta, 5 MP, outlet, patch panel we can offer you a price of 425,60 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
