Hager TYBS704A binary input 4-fold UP KNX
|
72,48 EUR 75,54 EUR |
|||||||||||
|
( 86,25 EUR incl. VAT ) ≈ £62.19 | ≈ $82.48 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 106288 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TYBS704A | ||||||||||
| UPC/EAN: | 3250610050538 | ||||||||||
| Weight: | 0.015 kg | ||||||||||
| Type: | TYBS704A | ||||||||||
|
Graduated prices net
|
|||||||||||

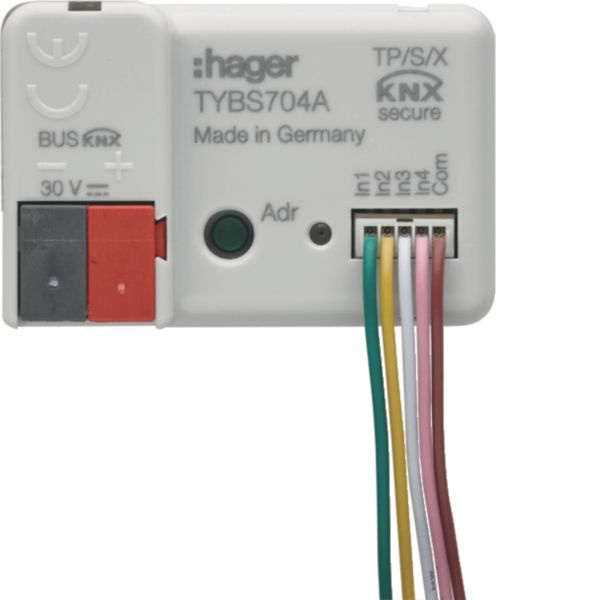

Product information for Hager TYBS704A:
4-way binary input, KNX Secure, flush-mounted. 4-way binary input and 4 LED outputs (flush-mounted) KNX Secure as a button interface for connecting buttons, switches or potential-free contacts. Flush-mounted device with integrated bus coupler, bus connection via KNX connection terminal, programming button with LED and pre-assembled connection cables.
Functions: Switching ON/OFF (send commands when pressed and/or released, staggered sending possible), dimming and color temperature, UP/DOWN (1 or 2 button operation), value transmitter for temperature, brightness, dimming value, two-channel mode per input as well as detection of short and long button presses and dependent parameterization, transmission behavior and time threshold value adjustable. Lock function, forced control, scene recall and periodic sending can be parameterized, pulse counting and temperature measurement.
Note: Commissioning possible with easytool or ETS.
Functions: Switching ON/OFF (send commands when pressed and/or released, staggered sending possible), dimming and color temperature, UP/DOWN (1 or 2 button operation), value transmitter for temperature, brightness, dimming value, two-channel mode per input as well as detection of short and long button presses and dependent parameterization, transmission behavior and time threshold value adjustable. Lock function, forced control, scene recall and periodic sending can be parameterized, pulse counting and temperature measurement.
Note: Commissioning possible with easytool or ETS.
Questions & answers
What is the delivery time of Hager TYBS704A binary input 4-fold UP KNX?
The article Hager TYBS704A binary input 4-fold UP KNX is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager TYBS704A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager TYBS704A binary input 4-fold UP KNX always at the best possible price. We can give you a discount of 2% on Hager TYBS704A binary input 4-fold UP KNX if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager TYBS704A binary input 4-fold UP KNX we can offer you a price of 69,22 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
