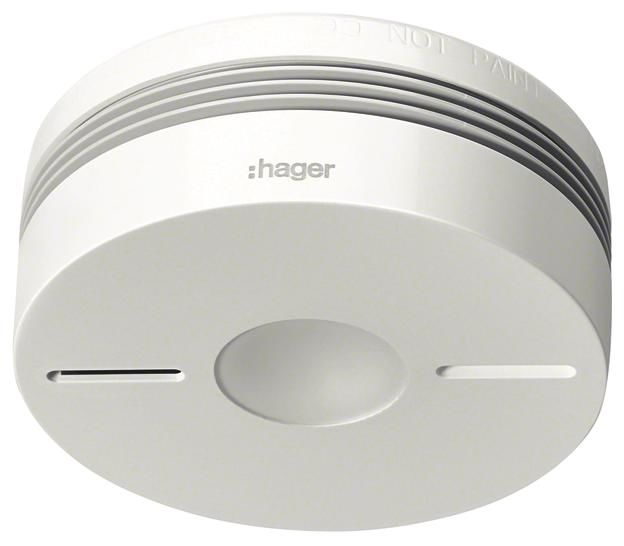

Hager TG550A wireless smoke detector comfort Q white content_copy

Wireless smoke alarm Comfort Q, IR alarm stop, white. Wireless smoke alarm with small size and attractive design language according to DIN EN 14604 with additional certification according to the increased test requirements of the Q certification based on the vfdb guidelines 14-01 'Association for the Promotion of German Fire Protection' (vfdb). Increased test criteria against the ingress of foreign bodies and increased protection against damp heat, oxidation and EMC, as well as better thermal cycling. Serves for the early detection and signaling of fires with smoke development in the interior of apartments or apartment-like areas, as well as mobile homes, caravans and camper vans. Can be installed as a single device or as a wireless network with up to max. 40 detectors with additional activation of any detector in the wireless network as a repeater to increase the range. The wireless network can be carried out without tools using push button mode and can be checked using the integrated range display using LEDs. Patented alarm stop using any manufacturer-independent IR remote control, by pressing the detector button or optionally through wireless networking with a wireless pressure button TG558B alarm stop. Manual alarm triggering is optionally possible by integrating a wireless pressure button TG558A for the house alarm. Optional control of external signal or peripheral devices using relay socket RXA005X possible. Processor-controlled function self-test of all relevant components (every 10 seconds) and PGSA technology with independent algorithmic sensitivity adjustment in the event of interference such as dust to maintain functional reliability. Large function and reset button with integrated white light cone in the event of fire and during the test alarm. Acoustic signal (85 dB at 3 m) and red flashing LED for alarm. Acoustic signal in the event of low battery, contamination or fault message with acoustic signaling and yellow LED. Time-limited deactivation function for smoke detection to suppress false alarms from the detector for around 12 minutes with automatic reset function to normal operation. Nighttime sleep function to delay fault messages until the day. Fault messages can be suppressed for a further 8 hours by acknowledging the reset button. The fault of a dirty detection unit/detector head cannot be reset as long as the false message is still being analyzed in the evaluation unit. Disassembly and theft protection can be activated, after which unlocking is only possible with a screwdriver with a maximum size of 7mm. The detector is automatically activated when screwed into the base. Battery life of at least 10 years using an encapsulated lithium battery. Guarantee period of 10 years, the other guarantee and terms and conditions can be found at www.hager.com/guarantee.

General
Operating principle	Optic
Response temperature	-10 °C
Max. number networkable	40
Current supply primary	Battery/accumulator
Voltage type of supply voltage	DC
Backup battery included	None
Mounting method	Other
Length	116 mm
Width	116 mm
Diameter	116 mm
Colour	White
RAL-number (akin)	9010
Type of test-/pause button	Combination
Degree of protection (IP)	IP32
Height/depth	72 mm
Voltage type (operating voltage)	DC
Standalone
Networkable via cable
Standard networkable via radio
Networkable via radio optional
With voltage indication
With backup battery
Smoke switcher
With Q-label
Acoustic report
Optical message
Self-adhesive

---
