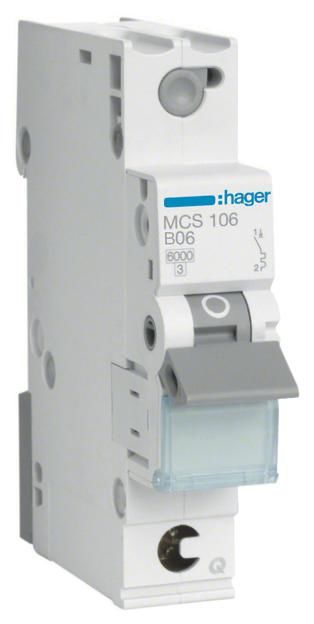

Hager mounting machine 1-C 6 pin MCS106, Quick Connect plug-in technology
|
33,82 EUR 35,24 EUR |
|||||||||||
|
( 40,25 EUR incl. VAT ) ≈ £28.61 | ≈ $37.81 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 496251 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | MCS106 | ||||||||||
| UPC/EAN: | 3250614315152 | ||||||||||
| Weight: | 0.09 kg | ||||||||||
| Type: | MCS106 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager MCS106:
Rated switch capacity 6 kA
- Standard: DIN VDE 0641 Part 8.11.92, EN 60898/IEC 60898 (QC terminal: Appendix J)
- Limiting class 3
- Rated voltage 230/400 V ~
- With installation-friendly quick connect terminal on the outlet + access
- Accessory mounting possible
- Single phase extraction from the composite rail possible
- Electric shock protection to DIN VDE 0106 part 100
- Phase busbars, connectors, end caps
from October 2004
Characteristic C, DIN VDE 0641, Part 08/11/92
Version: 1 pole
Current: 6 A
Type: MCS106
Quantity: 1 unit.
| General | |
| Release characteristic | C |
| Number of poles (total) | 1 |
| Number of protected poles | 1 |
| Rated current | 6 A |
| Rated voltage | 400 |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated short-circuit breaking capacity Icn EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V | 10 kA |
| Voltage type | AC |
| Frequency | 60 |
| Current limiting class | 3 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP20 |
| Ambient temperature during operating | 70 |
| Connectable conductor cross section multi-wired | 25 |
| Connectable conductor cross section solid-core | 35 |
| Power loss | 1.30 W |
| Concurrently switching N-neutral | |
| Additional equipment possible | |
| Explosion-proof | |
| Flush-mounted installation | |
