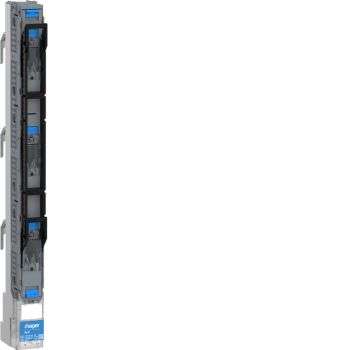

Hager LV8SG00HSTPWS NH00 fuse switch disconnector 160 A
|
137,13 EUR |
|
|
( 163,18 EUR incl. VAT ) ≈ £114.91 | ≈ $154.00 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2033816 |
| Mfg Part No: | LV8SG00HSTPWS |
| UPC/EAN: | 3250617653169 |
| Weight: | 2.475 kg |
| Type: | LV8SG00HSTPWS |
Product information for Hager LV8SG00HSTPWS:
| General | |
| Model | Fuse switch disconnector |
| Rated permanent current Iu | 160 A |
| Max. rated operation voltage Ue AC | 690 V |
| Conditioned rated short-circuit current Iq | 120 kA |
| Type of electrical connection of main circuit | Screw connection |
| Number of poles | 3 |
| Construction size fuse insert | NH00 |
| Release indication | None |
| Double interrupting | |
| Distance between rail centre, 40 mm | |
| Distance between rail centre, 50 mm | |
| Distance between rail centre, 60 mm | |
| Distance between rail centre, 100 mm | |
| Distance between rail centre, 185 mm | |
Questions & answers
What is the delivery time of Hager LV8SG00HSTPWS NH00 fuse switch disconnector 160 A?
The article Hager LV8SG00HSTPWS NH00 fuse switch disconnector 160 A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager LV8SG00HSTPWS to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager LV8SG00HSTPWS NH00 fuse switch disconnector 160 A always at the best possible price. We can give you a discount of 2% on Hager LV8SG00HSTPWS NH00 fuse switch disconnector 160 A if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
