Hager KU83CHE
BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc

Name: Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc
Brand: Hager
SKU: 1595703
Price: 230.56 EUR
Availability: InStock
Rating: 4 (1 reviews)

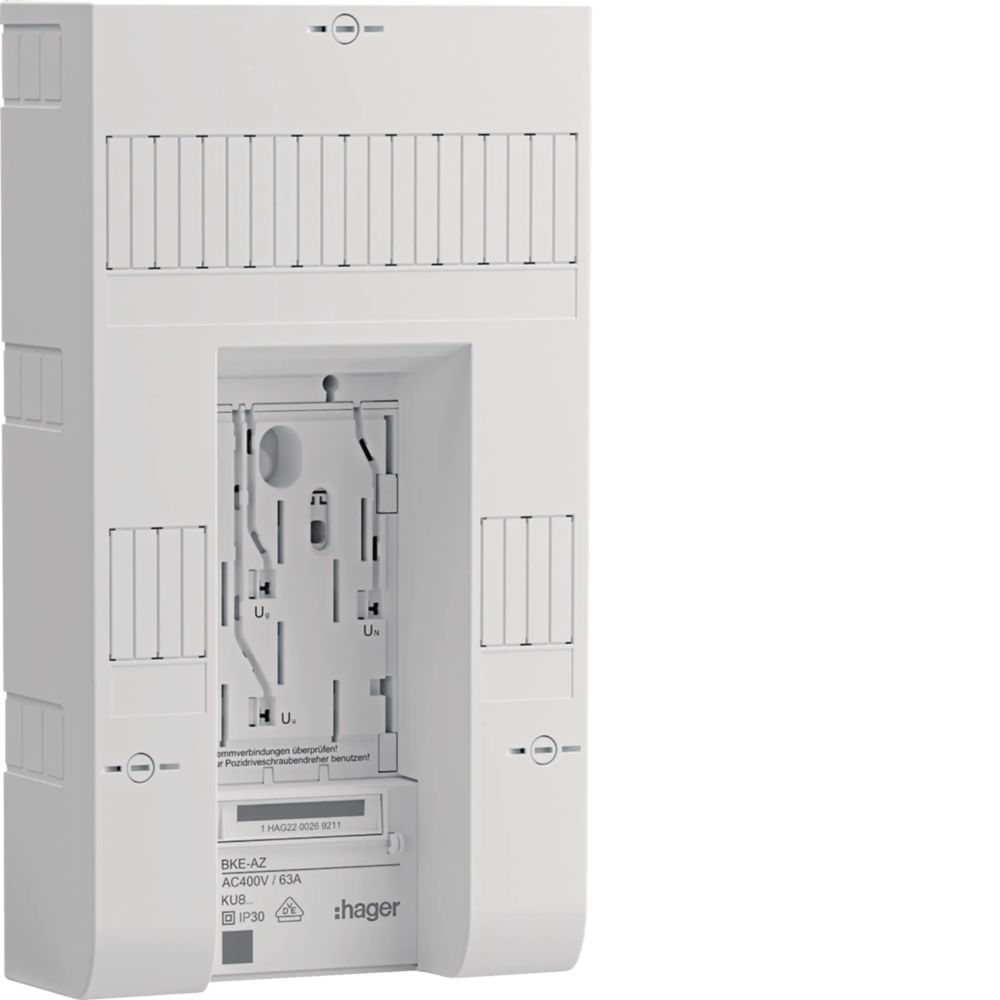

This image may differ from the desired article.

230,56 EUR 240,27 EUR

( 274,37 EUR incl. VAT )

≈ £197.59 | ≈ $261.92

plus delivery charges: 53,00 €

Delivery time from supplier's stock (ca.) 3 workdays

In Stock: >25 pieces

Printing view Bookmark Wholesale Inquiry

Lieske Part No.:

1595703

Mfg Part No:

KU83CHE

UPC/EAN:

3250613806279

Weight:

1.041 kg

Type:

KU83CHE

Graduated prices net

From pieces	Price per pieces
5	223,64 EUR
10	216,73 EUR
15	209,81 EUR
20	202,89 EUR

Further Meter Cabinets from Hager Further products in category Meter Cabinets All products of Hager

Product information for Hager KU83CHE:

BKE-AZ, 3-phase, universZ, centrally located, with RfZ 10+2+2 PLE, PU = 1 piece. Fastening and contacting device BKE-AZ with VDE symbol in accordance with DIN VDE 0603-3-2 for accommodating the plug-in electronic household meter (eHZ) in accordance with FNN specifications, meter is arranged in the middle, therefore ideally suited for transparent window cabinets, contact protection cover for the terminal block area is sealed by the meter, with space for additional applications for 10+2+2 PLE for accommodating installation devices in accordance with DIN 43880 size 1 (series installation devices on top hat rail), installation without dismantling the eHZ. BKE rated connection capacity per main terminal point for copper conductors 4-25 mm², rigid or finely stranded with wire end ferrule. Plug-in additional terminal points that can be mounted under voltage behind the eHZ meter for voltage tapping of unmetered and metered current on phase L2 and N, locking of the BKE in the non-bridged position possible with a plug lock. Maximum dimensions in installation position with sealable contact protection cover and eHZ meter: width 194 mm, height 353 mm, installation depth 107 mm with additional space for 10+2+2 PLE. Rated current 63 A for intermittent operation according to VDE-AR-N 4100. Continuous operating current 32 A and 44 A (with 16 mm²) according to VDE-AR-N 4100. Continuous operating current 50 A for 70,000 operating hours.

Questions & answers

What is the delivery time of Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc?

The article Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager KU83CHE to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc always at the best possible price. We can give you a discount of 2% on Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager KU83CHE BKE-AZ 3-phase universZ sitting in the middle with RfZ 10+2+2 PLE PU=1pc we can offer you a price of 223,64 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
