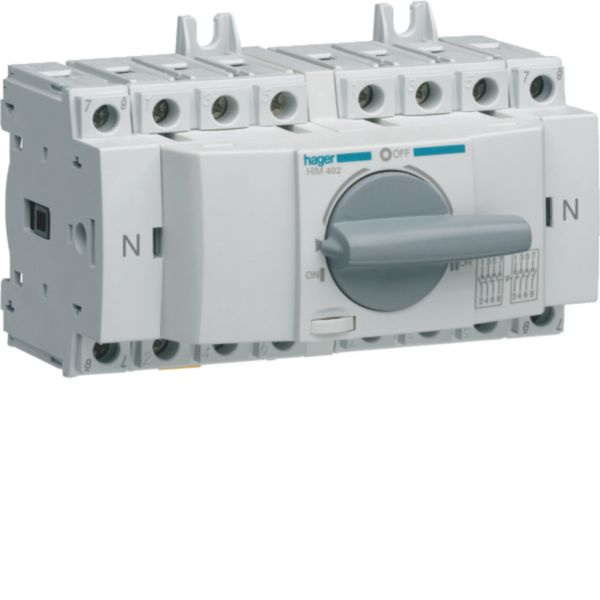

Hager HIM402 load switch 4P 20A
|
208,71 EUR 217,50 EUR |
|||||||||||
|
( 248,36 EUR incl. VAT ) ≈ £174.90 | ≈ $234.38 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 105244 | ||||||||||
| Mfg Part No: | HIM402 | ||||||||||
| UPC/EAN: | 3250613140540 | ||||||||||
| Weight: | 0.53 kg | ||||||||||
| Type: | HIM402 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager HIM402:
| General | |
| Number of switches | 1 |
| Max. rated operation voltage Ue AC | 415 V |
| Rated operating voltage | 415 V |
| Rated permanent current Iu | 20 A |
| Rated permanent current at AC-23, 400 V | 20 A |
| Rated permanent current at AC-21, 400 V | 20 A |
| Rated short-time withstand current lcw | 1.26 kA |
| Rated operation power at AC-23, 400 V | 9 kW |
| Switching power at 400 V | 13 kW |
| Conditioned rated short-circuit current Iq | 50 kA |
| Number of poles | 4 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Built-in device fixed built-in technique |
| Colour control element | Grey |
| Type of control element | Short thumb-grip |
| Type of electrical connection of main circuit | Screw connection |
| Degree of protection (IP), front side | IP20 |
| Degree of protection (NEMA) | Other |
| Colour housing | Grey |
| Depth | 89 mm |
| Height | 68 mm |
| Material housing | Plastic |
| Width | 127.5 mm |
| Width in number of modular spacings | 8 |
| Version as main switch | |
| Version as maintenance-/service switch | |
| Version as safety switch | |
| Version as emergency stop installation | |
| Version as reversing switch | |
| Motor drive optional | |
| Motor drive integrated | |
| Voltage release optional | |
| Suitable for front mounting 4-hole | |
| Suitable for front mounting centre | |
| Suitable for distribution board installation | |
| Suitable for intermediate mounting | |
| Interlockable | |
| Floor mounting | |
