Hager GD102N mini distributor IP30 2PLE

Your rating:
Average rating
product review for Hager GD102N mini distributor IP30 2PLE
( 4.4 / 5 ) 29 ratings

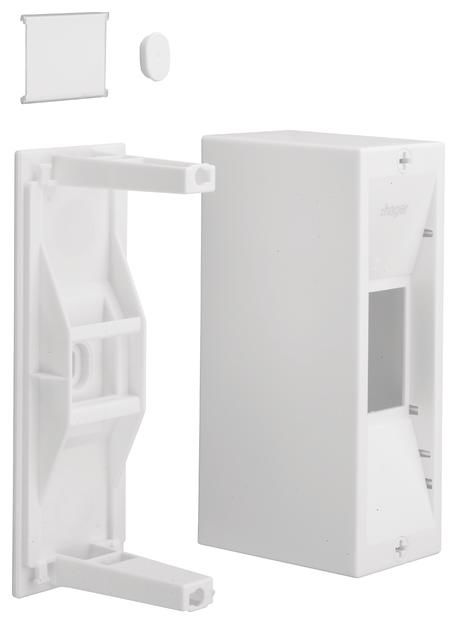

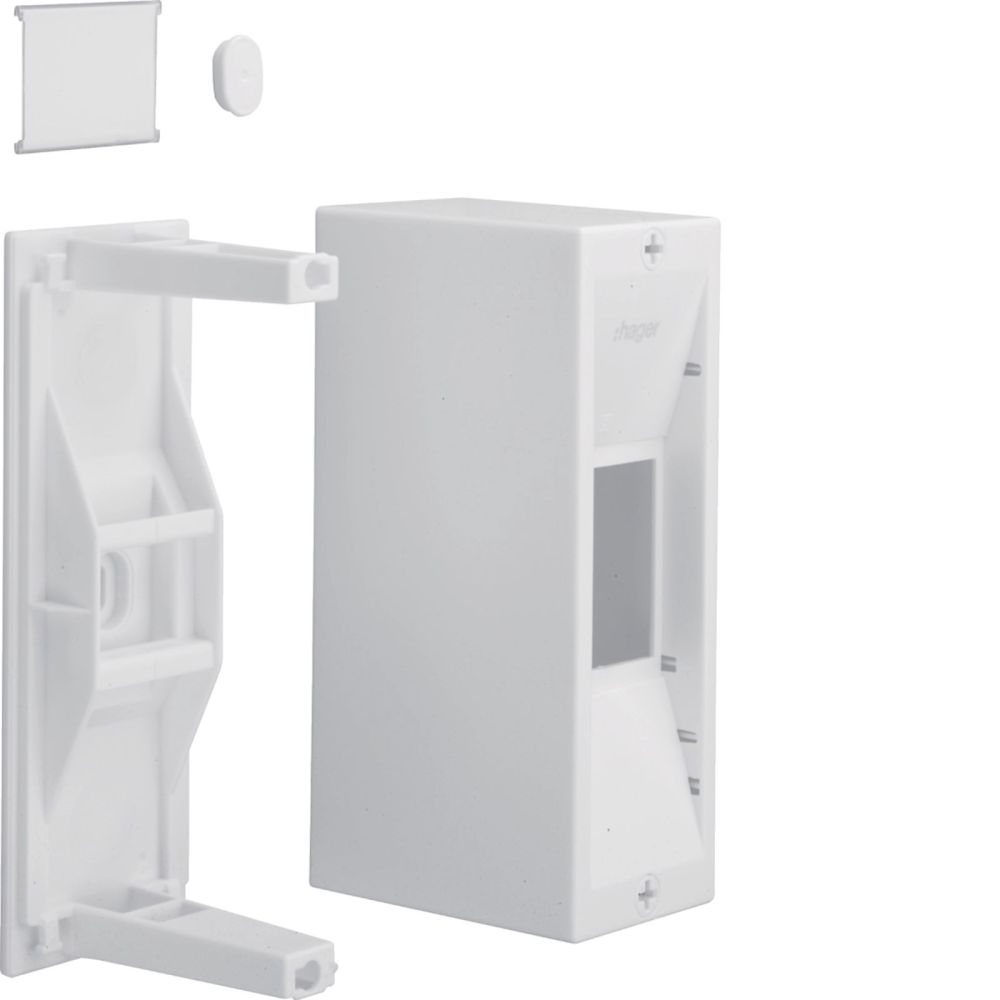

Hager GD102N
This image may differ from the desired article.
13,11 EUR
( 15,60 EUR incl. VAT )
≈ £10.97  |  ≈ $14.41
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >100 pieces
1x Hager GD102N mini distributor IP30 2PLE
Datasheet:file_download Download
Lieske Part No.:488182
Mfg Part No: GD102N
UPC/EAN: 3250612843152
Weight:0.121 kg
Type:GD102N
Graduated prices net
From piecesPrice per pieces
1512,52 EUR
3011,93 EUR
7011,34 EUR
10010,75 EUR

Product information for Hager GD102N:

The Hager Miniverteiler GD102N is a compact surface-mounted distributor from the gamma series, designed for use in dry indoor environments. It provides space for two modules and is designed according to DIN 43880, making it suitable for protecting small electrical circuits. The housing is made of robust plastic in pure white colour (RAL 9010) and features a protection rating of IP30, which protects against solid foreign objects larger than 2.5 mm and splashing water from any direction. Dimensions are 160 mm (height) × 55 mm (width) × 82 mm (depth), with an internal depth of 82 mm. Installation is surface-mounted, with fastening via screws. The distributor is not equipped with a DIN rail, mounting plate, or mounting option, and does not include a lock or transparent cover. The cover is available optionally and is described as other closure.

Applications

The GD102N is intended for use in dry indoor environments and is not suitable for outdoor use. It is particularly suitable for limited space conditions where a compact, reliable protection of electrical circuits is required. The rated voltage is 230 V, and the rated current is 32 A. The distributor box is designed for REG devices operating up to 63 A at 230 V AC or 3 × 45 A at 400 V AC. The mechanical impact resistance is classified as IK05, indicating low impact resistance suitable for use in enclosed rooms.

Functions and Equipment in Detail

The distributor features a cable entry, enabling easy installation and maintenance. It is not equipped with a neutral conductor terminal block or earthing terminal block. The number of rows is 1, and the number of modules is 2, with a width in module units of 2. The cover is available optionally, with the version described as with cutout. The colour is pure white (RAL 9010), and the material is plastic. The protection class is II, meaning the distributor does not require a protective earth connection.

Technical Explanation

The IP30 protection rating ensures that no solid foreign objects larger than 2.5 mm and no splashing water can enter the device. This makes the distributor suitable for dry indoor environments, but not for damp or wet conditions. The IK05 rating indicates that the distributor is protected against minor mechanical stresses such as light impacts, which is sufficient for use in normal indoor environments. The glow wire test at 750 °C according to EN 60695-2-11 confirms the thermal resistance of the material.

Compatibility and Accessories

For the GD102N, the accessory S35S cover strip RAL9010 pure white 219 mm breakable is available. This cover strip can be used for optical finishing or to extend the cover. Combining it with the cover strip allows for a clean and uniform visual design of the distributor, especially when multiple modules or additional components are mounted.

Installation and Mounting

Installation is surface-mounted, with fastening via screws. There is no mounting plate or mounting option, so the distributor is directly fixed to the wall or another substrate. Installation is simple and requires no additional tools. The cable entry allows direct connection of electrical cables. Dimensions of 160 mm × 55 mm × 82 mm allow placement in confined spaces without impairing functionality.

Operational Advantages

The GD102N provides reliable protection for small electrical circuits in dry indoor environments. Its compact design and simple installation facilitate easy setup and maintenance. The IP30 protection rating and IK05 rating ensure sufficient protection against mechanical and environmental influences. The use of plastic as material ensures high thermal resistance and long service life. Compliance with RoHS and REACh-SVHC freedom ensures environmentally compatible use. The cover with cutout allows flexible design, especially when additional components or modules are mounted.

General
Mounting methodSurface mounted (plaster)
Number of rows1
Width in number of modular spacings2
Type of coverOptional
Cover modelWith notch
Material housingPlastic
Height160 mm
Width55 mm
Depth82 mm
Internal depth82 mm
ColourWhite
RAL-number9010
Degree of protection (IP)IP30
Type of closureOther
Type of doorOther
Transparent cover/doorno
DIN-railno
With mounting plateno
Extension possibleno
EMC-versionno
With lockno


Product data sheet
Datasheet for Hager GD102N, EAN: 3250612843152

Questions & answers

What is the delivery time of Hager GD102N mini distributor IP30 2PLE?

The article Hager GD102N mini distributor IP30 2PLE is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager GD102N to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager GD102N mini distributor IP30 2PLE always at the best possible price. We can give you a discount of 2% on Hager GD102N mini distributor IP30 2PLE if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Hager GD102N mini distributor IP30 2PLE we can offer you a price of 12,52 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Hager GD102N mini distributor IP30 2PLE

Hager S35S cover strip RAL9010 pure white 219 mm breakable Hager LogoHager S35S cover strip RAL9010 pure white 219 mm breakable The Hager cover strip S35S is a universally applicable cover strip in universZ design, specifically designed for electrical installations in distribution and meter enclosures. It serves for neat ...
