Hager FR93S
cabinet univers IP55 SK II 1400x800x275mm
|
1.482,38 EUR 1.544,80 EUR |
|||||||||||
|
( 1.764,03 EUR incl. VAT ) ≈ £1,274.85 | ≈ $1,685.47 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1348625 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | FR93S | ||||||||||
| UPC/EAN: | 3250610703007 | ||||||||||
| Weight: | 53.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Wall, Stand, distribution systems from HagerFurther products in category Wall, Stand, distribution systems
All products of Hager
Product information for Hager FR93S:

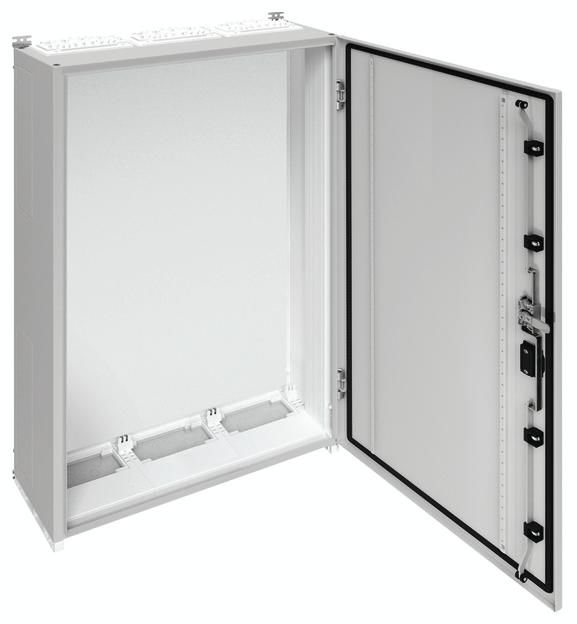

Cabinet, universal, IP55/II, 1400x800x275mm. Wall-mounted cabinet for indoor installation with VDE certificate (production monitoring) in accordance with DIN EN 61439-1/-2/-3 and dimensional standard DIN 43870, for surface mounting. For setting up a low-voltage distribution system up to 800 A, 3AC, 690 V 50 Hz. Protection class IP55, protection class II, air and creepage distances in accordance with DIN VDE 0110-1/-2. Consisting of cabinet with door made of powder-coated, baked-on, profiled 1.5 mm thick sheet steel. Push-through flanges at the top, ISO flange plates with metric knockouts and quick locking installed in each field at the bottom. Busbar bushings as side knockouts. Door surface-mounted, with internal hinges, door stop on the right as standard, changeable, 110 degree opening angle. Supplied as standard with swivel lever lock, DIN profile half cylinder can be installed. Door seal foamed all around, temperature and oil resistant. Cabinets can be flanged next to each other or one above the other.
Type: FR93S
Type: FR93S
Questions & answers
What is the delivery time of Hager FR93S cabinet univers IP55 SK II 1400x800x275mm?
The article Hager FR93S cabinet univers IP55 SK II 1400x800x275mm is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 7 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager FR93S to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager FR93S cabinet univers IP55 SK II 1400x800x275mm always at the best possible price. We can give you a discount of 2% on Hager FR93S cabinet univers IP55 SK II 1400x800x275mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Hager FR93S cabinet univers IP55 SK II 1400x800x275mm we can offer you a price of 1.415,67 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Hager FR93S cabinet univers IP55 SK II 1400x800x275mm
 |
Hager flange FZ420,
Flange for mounting the Kabelaufspleißkasten under the wall-mounted cabinet IP 54 Type: FZ420 Quantity: 1 unit. Lieske Part No.: 150468 Mfg Part No: FZ420 |
42,18 EUR 43,96 EUR
 ≈ £36.27 | ≈ $47.96
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager busbar insulating profile S94G, length 1000 mm
Rail insulation profile, univers Z, for CU 12 x 5 mm, 1000 mm. Meter cabinet solution cabinet housing according to DIN VDE 0603/1, dimensional standard DIN 43 870 for surface-mounted, flush-mounted or ... Lieske Part No.: 161333 Mfg Part No: S94G |
9,50 EUR 9,90 EUR
≈ £8.17 | ≈ $10.80
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager UN09A support rail 1350 mm, height of 1400 mm 2 pieces
Support rails, universN, 1350mm, for cabinets from 160mm depth, set = 2 pieces. Support rails made of profiled and galvanized sheet steel. Lieske Part No.: 244499 Mfg Part No: UN09A |
77,14 EUR 80,39 EUR
≈ £66.34 | ≈ $87.71
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager FZ402 universal cable entry
Cable entry, universal, IP55, flexible, with nubs for tearing out. Push-through flange with seal IP54 with different cable entry options for installation in suitable cabinet (flange installation in ... Lieske Part No.: 349340 Mfg Part No: FZ402 |
46,45 EUR 48,41 EUR
≈ £39.95 | ≈ $52.81
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager FZ818 plan pocket univers DIN A4 for modular distributors
Plan pocket, plastic, DIN A4, self-adhesive.Plan pocket for installation in a suitable cupboard. Lieske Part No.: 639599 Mfg Part No: FZ818 |
33,25 EUR 34,65 EUR
≈ £28.60 | ≈ $37.81
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager cable entry FZ404 without knockouts
Cable entry, universal, plastic, without pre-knockouts. Entry flange with or without pre-knockout with IP54 seal for grommets and screw connections for installation in suitable cabinet (flange ... Lieske Part No.: 745502 Mfg Part No: FZ404 |
29,64 EUR 30,89 EUR
≈ £25.49 | ≈ $33.70
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager cable entry FZ407M, or for 8xM25 6xM25, 2xM32
Cable entry, universal, metric knockouts for cable glands. Entry flange with or without knockout with IP54 seal for grommets and screw connections for installation in suitable cabinet (flange ... Lieske Part No.: 808706 Mfg Part No: FZ407M |
28,69 EUR 29,90 EUR
≈ £24.67 | ≈ $32.62
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager plan pocket A4 FZ 794, plastic self-adhesive
Modular system built univers N according to DIN VDE 66, part 5 + 5 + 5 4 4 / A , Dimensions according to DIN 4387th Structure of distributions or meter with blocks. Maximum rated current 63 A. Lieske Part No.: 876621 Mfg Part No: FZ794 |
4,27 EUR 4,46 EUR
≈ £3.67 | ≈ $4.85
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager cable entry FZ408M for 2xM25/32 1xM50/63 FZ413/414/415
Cable entry, universal, metric knockouts for cable glands. Entry flange with or without knockout with IP54 seal for grommets and screw connections for installation in suitable cabinet (flange ... Lieske Part No.: 937016 Mfg Part No: FZ408M |
28,69 EUR 29,90 EUR
≈ £24.67 | ≈ $32.62
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager MES-PHZDB3 profile half cylinder insert double bit 3mm
Profile half cylinder insert double bit 3mm Lieske Part No.: 1101502 Mfg Part No: MES-PHZDB3 |
32,11 EUR 33,46 EUR
≈ £27.61 | ≈ $36.51
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
|
 |
Hager FZ435A plate for closing the lower cable entry opening
Cover plate, univers, cable entry opening, FR cabinet Lieske Part No.: 1597609 Mfg Part No: FZ435A |
13,77 EUR 14,36 EUR
≈ £11.84 | ≈ $15.66
Made to order · Delivery time approx. 9 workdaysinfo_outline
|
