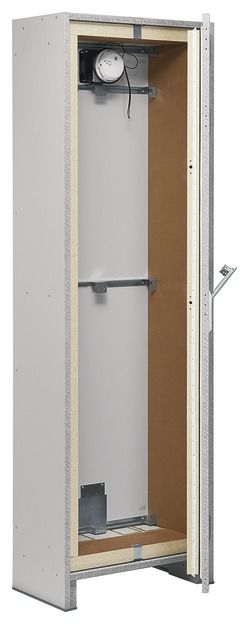

Hager FB22SE fire protection cabinet univers 90min. 2048x648x349mm

Fire protection cabinet, universal, 2048 x 648 x 349 mm, 90 minutes. Electrical fire protection cabinet F90 for installation on the wall or free in the room (free-standing) with an additional rear wall (optional) to secure escape and rescue routes (fire load insulation), prepared for setting up a low-voltage distribution system up to 630A. Suitable for maintaining the functionality of safety systems in the event of a fire for over 90 minutes. The housing is made of non-flammable building material of class A2 - s1, d0, IP44, protection class II, color similar to RAL7035 and cable entries at the top/bottom. General building approvals (DIBt): Z-86.1-82. Free-standing cabinet consisting of empty housing, base with removable base panel that can be driven under (e.g. with a pallet truck), fastening straps and fastening material, cable cooling attachment with insulation material. Single or double door, hinged into the body, with door stop changeable to right or left, opening angle 180°. Door with swivel lever, door lock via push rod with 2-point locking and with DIN half cylinder double bit, replaceable, door hinges made of stainless steel. Rear wall with active ventilation system 230V AC cold smoke-tight, switches off automatically in the event of fire via smoke detector and self-foaming fire protection seal (all around).
Notes: A suitable cable cooling attachment and reinforced rear wall (not included) are essential for free-standing cabinet installation. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
Type: FB22SE
