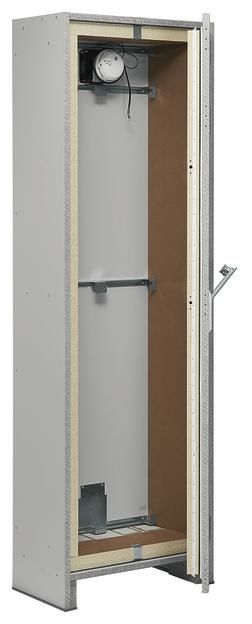

Hager FB21LE fire protection cabinet univers 30min. 2048x398x349mm

Fire protection cabinet, universal, 2048 x 398 x 349 mm, 30 minutes. Electrical fire protection cabinet F30 for installation on the wall or free-standing in the room (free-standing) with an additional rear wall (optional) to secure escape and rescue routes (fire load insulation), prepared for the installation of a low-voltage distribution system up to 630A. Suitable for maintaining the functionality of safety systems in the event of a fire for over 30 minutes. The housing is made of non-flammable building material of class A2 - s1, d0, IP44, protection class II, color similar to RAL7035 and cable entries at the top/bottom. General building approvals (DIBt): Z-86.1-86. Free-standing cabinet consisting of empty housing, base with removable base panel that can be driven under (e.g. with a pallet truck), fastening straps and fastening material. Single or double door, hinged into the body, with door stop changeable to right or left, opening angle 180°. Door with swivel lever, door lock via push rod with 2-point locking and with DIN half cylinder double bit, replaceable, door hinges made of stainless steel. Rear wall with active ventilation system 230V AC cold smoke-tight, switches off automatically in the event of fire via smoke detector and self-foaming fire protection seal (all around).
Notes: Reinforced rear wall (not included) is essential for free-standing cabinet installation. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
Type: FB21LE
