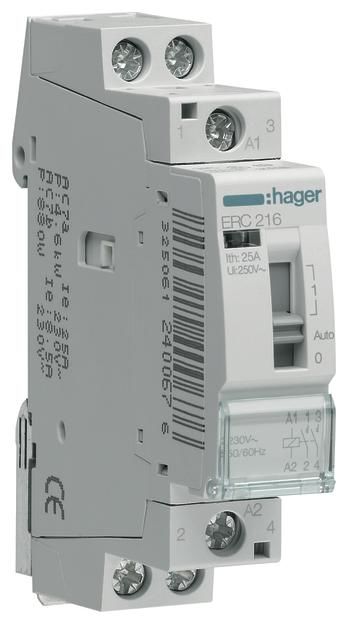

Hager ERC216
installation relay 16A 2S 230V
|
52,91 EUR 55,14 EUR |
|||||||||||
|
( 62,96 EUR incl. VAT ) ≈ £44.81 | ≈ $59.21 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Lieske Part No.: | 647526 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ERC216 | ||||||||||
| UPC/EAN: | 3250612400485 | ||||||||||
| Weight: | 0.116 kg | ||||||||||
| Type: | ERC216 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ERC216:
Note: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.
| General | |
| Rated operating voltage | 230 V |
| Rated operation current | 16 A |
| Rated excitation voltage | 230 V |
| Voltage type (operating voltage) | AC |
| Voltage type (excitation voltage) | AC |
| Number of contacts as normally open contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Max. incandescent lamp load | 1100 W |
| Max. load fluorescent lamp | 570 VA |
| Max. load fluorescent lamp (Duo circuit) | 1200 VA |
| Max. load fluorescent lamp (parallel compensated) | 490 VA |
| Built-in depth | 60 mm |
| Degree of protection (IP) | IP2X |
| Width in number of modular spacings | 1 |
| Slider for hand switch | |
| Additional equipment possible | |
| With day/night function | |
Questions & answers
What is the delivery time of Hager ERC216 installation relay 16A 2S 230V?
The article Hager ERC216 installation relay 16A 2S 230V is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ERC216 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ERC216 installation relay 16A 2S 230V always at the best possible price. We can give you a discount of 2% on Hager ERC216 installation relay 16A 2S 230V if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Hager ERC216 installation relay 16A 2S 230V we can offer you a price of 48,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
