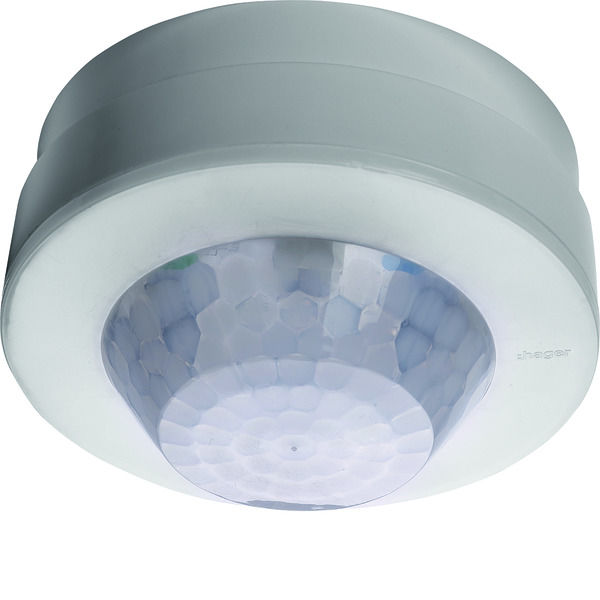

Hager EED515 motion sensor corridor DALI2 360°, AP, 30x5m
|
192,75 EUR 200,87 EUR |
|||||||||||
|
( 229,37 EUR incl. VAT ) ≈ £161.52 | ≈ $216.46 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 2116142 | ||||||||||
| Mfg Part No: | EED515 | ||||||||||
| UPC/EAN: | 3250612256204 | ||||||||||
| Weight: | 0.166 kg | ||||||||||
| Type: | EED515 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager EED515:
Main functions: adjustable response brightness and daylight control, adjustable follow-up time, master/slave function.
Note: An optional IR hand-held transmitter can control different operating modes (e.g. on/off).
| General | |
| Model | Movement sensor |
| Scan angle | 360 ° |
| Optimum mounting height | 3 m |
| Max. transmission range sideways | 15 m |
| Max. transmission range frontally | 14 m |
| Mounting method | Surface mounted (plaster) |
| Connection type | Plug clamp |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (akin) | 9010 |
| Degree of protection (IP) | IP41 |
| Impact strength | IK04 |
| Voltage type | AC |
| Frequency | 60 Hz |
| Min. switch-on time | 2 s |
| Max. duty cycle | 60 min |
| Switch-off delay | 0 s |
| Switching-on delay | 0 s |
| Detection angle horizontal | 360 |
| Pivoting range sensor, horizontal | 0 ° |
| Pivoting range sensor, vertical | 0 ° |
| Response value luminosity | 2000 lx |
| Max. switching power | 0 W |
| Number of switching zones | 1 |
| Min. starting current | 0 A |
| Height | 60 mm |
| Depth | 0 mm |
| Diameter | 105 mm |
| Built-in width | 0 mm |
| Built-in depth | 0 mm |
| Built-in length | 0 mm |
| Built-in diameter | 0 mm |
| Min. depth of built-in installation box | 0 mm |
| Constant light control | |
| HVAC-control | |
| Forced switch on | |
| Forced switch off | |
| Animal zone | |
| Creep-under protection | |
| Networkable | |
| Staircase monitoring | |
| Bridging switch | |
| Suitable for wireless transmission | |
| Remote operation | |
| With remote control | |
| Response value sensitivity adjustable | |
| Response value luminosity adjustable | |
| With signal unit | |
| Teach-function for response value luminosity | |
| Suitable for ceiling mounting | |
| Dim function with dimmer basic element | |
| Halogen free | |
| Antibacterial treatment | |
| Suitable for C-load | |
| Substation input | |
| IFTTT support available | |
| With connection cable | |
