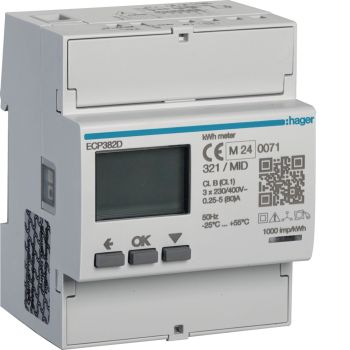

Hager ECP382D energy meter 3-phase direct 80 A 4 M S0 MID

Your rating:
Average rating
product review for Hager ECP382D energy meter 3-phase direct 80 A 4 M S0 MID
( 4.8 / 5 ) 6 ratings
Hager ECP382D
This image may differ from the desired article.
433,30 EUR
( 515,63 EUR incl. VAT )
≈ £360.94  |  ≈ $475.33
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Hager ECP382D energy meter 3-phase direct 80 A 4 M S0 MID
Datasheet:file_download Download
Lieske Part No.:877086
Mfg Part No: ECP382D
UPC/EAN: 3250610008164
Weight:0.374 kg
Type:ECP382D
Graduated prices net
From piecesPrice per pieces
4404,05 EUR
8374,80 EUR
12345,56 EUR
16316,31 EUR

Product information for Hager ECP382D:

The ECP382D energy meter from Hager is an electronic, three-phase meter for direct connection with a rated current of 80 A. It is designed as a bidirectional meter and enables 4-quadrant measurement, allowing both consumption and supply of active and reactive energy to be recorded. The meter is calibrated at the factory in accordance with the Measuring Instruments Directive (MID) and is therefore suitable for use in public supply. It features a digital display with 9 digits and is designed for mounting on a DIN rail (REG), with a width of 4 module units.

Applications

The ECP382D is designed for use in electrical installations with a rated voltage of 276 V (L-N) or 480 V (L-L). It is suitable for applications in energy distribution, particularly in industrial and commercial facilities, where accurate measurement of active and reactive energy is required. The MID approval also makes it suitable for use in tariff systems where energy billing must comply with legal requirements.

Functions and Features in Detail

The meter measures active energy in accuracy class B according to DIN EN 50470-3 and reactive power in Class 2 according to IEC 62053-23. Active power is measured in Class 1 according to IEC 62053-21 and IEC 61557-12. Measurement is performed via direct measurement, with a current measurement range from 0.25 A to 80 A. The voltage ranges are 92–276 V (L-N) and 160–480 V (L-L), and frequency measurement is carried out in the range of 45–65 Hz. The reverse prevention feature prevents backward counting, which is important for measurement reliability.

Technology Explained Simply

The meter operates electronically and records energy consumption via an S0 pulse output. The pulse rate is 200 Imp/kWh (kvarh), enabling precise transmission of measurement values to external systems. Tariff control is performed externally via 230 V AC, allowing two tariff counts (T1 and T2) to be activated. Measurement data output is provided via two pulse outputs, suitable for integration into energy management systems. Power consumption is 0.6 W at rated load, representing low burden on the measurement circuit.

Compatibility and Accessories

The meter is designed for use with meter input and output cables with a cross-section of 33 mm². Mounting is on a DIN rail, with a nominal torque of 2 Nm for mechanical connections and 0.50 Nm for the digital terminal. Protection class IP20 and NEMA 2 protect against contact with moving parts and are suitable for use in enclosed switchgear. Operating temperature ranges from -25 °C to 55 °C, while storage and transport temperature ranges from -25 °C to 70 °C.

Mounting and Installation

Installation is on a DIN rail (REG), with device dimensions of 92 mm (height), 72 mm (width), and 60 mm (depth). The connection cross-sections for meter input and output cables are specified as 33 mm². Mounting requires a torque of 2 Nm for mechanical connections and 0.50 Nm for the digital terminal to ensure a secure connection.

Operational Advantages

The ECP382D offers high measurement accuracy in the specified classes and is designed for direct measurement, enabling simple installation without additional transformers. MID approval ensures legal validity of the measurement values. External tariff control via 230 V AC and data output via S0 pulse outputs facilitate integration into existing energy management systems. The reverse prevention feature ensures correct counting even with alternating load directions.

General
Type of meterElectronic
Nominal current (In)80 A
Max. current (Imax)80 A
Nominal voltage (Un) N-L276 V
Nominal voltage (Un) L-L480 V
Frequency65 Hz
Accuracy classB
Pole typeFour conductor
ModelDirect measurement
Energy typeEffective power and blind power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
ApprovalMeasuring Instruments Directive
Pulse outputElectrical
Pulse typeS0
Pulse rate200 Imp/kWh (kvarh)
Type of indicationDigital
Mounting methodDRA (DIN-rail adapter)
Width in number of modular spacings4
Type of interfaceOther
Number of positions total (counter)9
Degree of protection (IP)IP20
Degree of protection (NEMA)2
Depth60 mm
Height92 mm
Power consumption0.6 W
Width72 mm
Measuring type load profileno
Escapement mechanismyes
Calibratedyes
EEC40 signatureno
With lock codeno


Product data sheet
Datasheet for Hager ECP382D, EAN: 3250610008164
