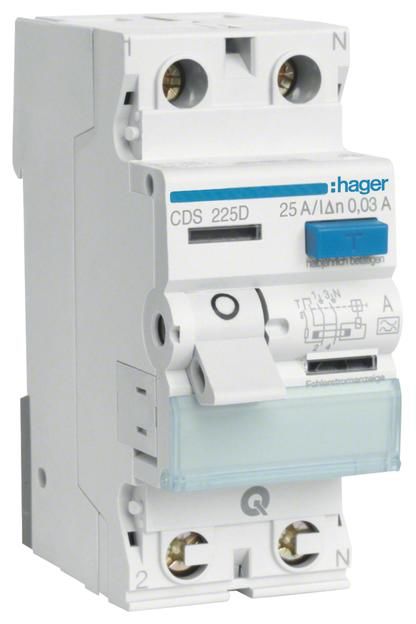

Hager GFCI CDS225D, 2-pole 25/0, 03A plug-161082
|
98,70 EUR 102,86 EUR |
|||||||||||
|
( 117,45 EUR incl. VAT ) ≈ £83.50 | ≈ $110.35 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 260085 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | CDS225D | ||||||||||
| UPC/EAN: | 3250611610823 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | CDS225D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager CDS225D:
Residual current circuit breaker
with Quick-connect Terminal
- Standards: EN 61008-1, EN 61008-2-1, VDE 0664 Part 10 + 11
- Rated voltage 230/400 VAC 50/60 Hz
- Sensitive to pulsating currents and surge currents up to 250 A
- Short-circuit protection fuse 6 kA at 63 A / gL
- Suitable for retro-fitting of additional equipment
- Single phase extraction from the composite rail possible
- With installer-friendly quick-connect terminal on the access
- Electric shock protection to DIN VDE 0106 part 100
RCD 2-pole
Quick Connect from October 2004
IU Rated current: 25 A
Type: CDS225D
Quantity: 1 unit.
with Quick-connect Terminal
- Standards: EN 61008-1, EN 61008-2-1, VDE 0664 Part 10 + 11
- Rated voltage 230/400 VAC 50/60 Hz
- Sensitive to pulsating currents and surge currents up to 250 A
- Short-circuit protection fuse 6 kA at 63 A / gL
- Suitable for retro-fitting of additional equipment
- Single phase extraction from the composite rail possible
- With installer-friendly quick-connect terminal on the access
- Electric shock protection to DIN VDE 0106 part 100
RCD 2-pole
Quick Connect from October 2004
IU Rated current: 25 A
Type: CDS225D
Quantity: 1 unit.
| General | |
| Number of poles | 2 |
| Rated voltage | 230 V |
| Rated current | 25 A |
| Rated fault current | 0.03 A |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Mounting method | DIN rail |
| Leakage current type | A |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Surge current capacity | 0.25 kA |
| Frequency | 50 Hz |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Built-in depth | 70 mm |
| Ambient temperature during operating | 40 °C |
| Pollution degree | 2 |
| Connectable conductor cross section multi-wired | 16 mm² |
| Connectable conductor cross section solid-core | 25 mm² |
| Power loss | 2.32 W |
| RAL-number (akin) | 7005 |
| Voltage type | AC |
| Selective protection | |
| Short-time delayed tripping | |
| Additional equipment possible | |
| With interlocking device | |
| Explosion-proof | |
