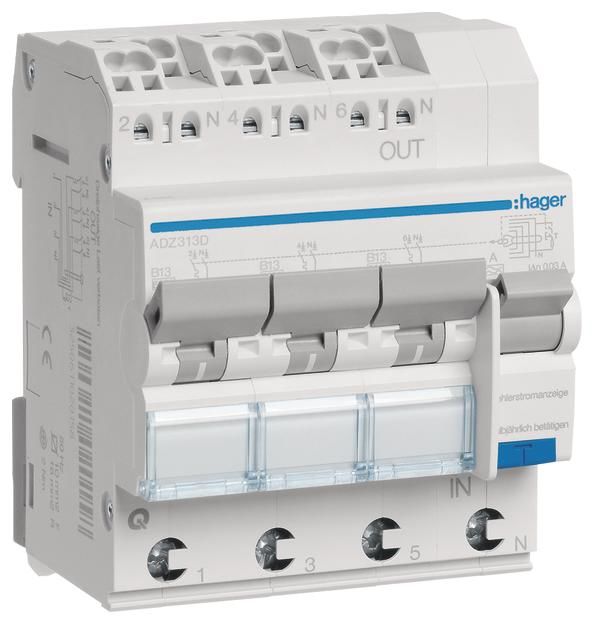

Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC
|
257,07 EUR 267,89 EUR |
|||||||||||
|
( 305,91 EUR incl. VAT ) ≈ £217.48 | ≈ $287.40 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 145580 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ADZ313D | ||||||||||
| UPC/EAN: | 3250611020141 | ||||||||||
| Weight: | 0.413 kg | ||||||||||
| Type: | ADZ313D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADZ313D:
| General | |
| Number of poles (total) | 4 |
| Number of protected poles | 3 |
| Rated voltage | 230 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 13 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 6 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 3 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 70 °C |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP2X |
| Power loss | 9.6 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
Questions & answers
What is the delivery time of Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC?
The article Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ADZ313D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC always at the best possible price. We can give you a discount of 2% on Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager ADZ313D FI-LS 3X 1P + N 6kA B-13A, 30mA Type A QC we can offer you a price of 243,57 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
