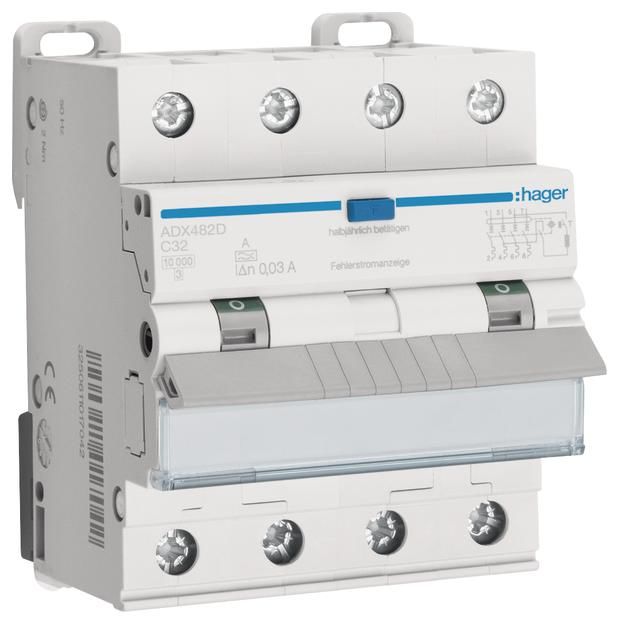

Hager ADX482D FI-LS 4P 10kA C-32A 30mA A

Your rating:
Average rating
product review for Hager ADX482D FI-LS 4P 10kA C-32A 30mA A
( 4.6 / 5 ) 10 ratings
Hager ADX482D
This image may differ from the desired article.
Hager ADX482DHager ADX482D
309,89 EUR
( 368,77 EUR incl. VAT )
≈ £259.38  |  ≈ $340.57
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >25 pieces
1x Hager ADX482D FI-LS 4P 10kA C-32A 30mA A
Datasheet:file_download Download
Lieske Part No.:145557
Mfg Part No: ADX482D
UPC/EAN: 3250611017073
Weight:0.437 kg
Type:ADX482D
Graduated prices net
From piecesPrice per pieces
4302,92 EUR
8295,94 EUR
12288,97 EUR
16282,00 EUR

Product information for Hager ADX482D:

The Hager ADX482D is a residual current circuit breaker (RCBO) with 4 poles, designed for protection functions in 400 V three-phase circuits. The device integrates, in a compact 4-pole housing, both the function of a circuit breaker (LS) and a residual current circuit breaker (FI), thereby protecting against overload and short-circuit as well as dangerous residual currents. The design complies with the standard EN/IEC 61009-1, with the residual current protection function designed for type A, enabling detection of pulsating residual currents, such as those occurring in devices with electronic power supplies. The rated residual current is 30 mA, which is standard for protection against electric shock in residential and commercial installations.

Applications

The ADX482D is suitable for use in electrical installations requiring high safety standards for residual current detection, particularly in three-phase systems with 400 V operating voltage. It is intended for indoor use, as the protection rating IP2X provides limited protection against contact with moving parts but does not offer weather protection for outdoor use. The operating temperature is up to 40 °C, with nominal current values decreasing at higher temperatures, as detailed in the technical specification. The overvoltage category 3 and pollution degree 2 indicate use in standard indoor installations without extreme environmental conditions.

Functions and Equipment in Detail

The device features an instantaneous tripping characteristic, meaning it trips immediately upon reaching the residual current or overload current, without delay. The C characteristic is suitable for installations with moderate inrush currents, such as those occurring with motors or heating appliances. The integrated test button in blue enables regular functional testing of the residual current protection. A residual current indicator visually signals the status of the switch. Individual removal from the phase bar system is easily possible, simplifying maintenance and replacement. The locking device ensures the switch can only be removed in the off position, providing additional safety.

Technology Explained Simply

The ADX482D is rated for a nominal current of 32 A, indicating the maximum current it can carry continuously without tripping. The rated short-circuit breaking capacity Icn is 10 kA, describing the maximum current the device can safely interrupt in the event of a short-circuit. The energy limitation class 3 means the device limits the energy fed into the network during a residual current event, reducing damage to downstream equipment. The rated insulation voltage Ui of 500 V and the impulse voltage withstand Uimp of 4 kV ensure sufficient insulation strength against electrical overvoltages. The impulse current withstand of 3 kA describes the maximum current the device can withstand briefly without damage.

Compatibility and Accessories

To extend functionality, various accessories can be retrofitted. These include cable bridges in different cross-sections (e.g. NYAF 6 mm² or 10 mm²) and lengths (100 mm or 250 mm), enabling connections between multiple switches. Spacing elements such as LZ060 are used for heat dissipation during dense mounting. Additionally, auxiliary contacts (MZ201) and signaling contacts (MZ202) are available for signaling the switch status in control or monitoring systems. Direct labeling on the device is possible, facilitating identification of switching functions in the enclosure.

Mounting and Installation

The ADX482D is mounted on standard installation rails (DIN rail). The mounting depth is 70 mm, and the width corresponds to 4 module units (71 mm). The connection cross-sections are designed for single-core conductors up to 25 mm² and multi-core conductors up to 16 mm². Mounting is done via screw terminals, with a nominal torque of 2 Nm for both upper and lower terminals. The device lifespan is 4000 mechanical and 2000 electrical switching operations, ensuring high operational reliability over a long period.

Operational Advantages

The combination of FI and LS functions in a single device reduces space requirements in the enclosure and simplifies installation. Easy individual removal and integrated test and indicator functions facilitate maintenance. The locking device increases safety during mounting and dismounting. The possibility of retrofitting additional components expands application options, especially in complex control systems. RoHS compliance ensures environmental compatibility of the device.

General
Number of poles (total)4
Number of protected poles4
Rated voltage400 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated current32 A
Rated fault current0.03 A
Leakage current typeA
Current limiting class3
Rated short-circuit breaking capacity Icn acc. EN 61009-110 kA
Disconnection characteristicUndelayed
Surge current capacity3 kA
Voltage typeAC
Frequency50 Hz
Release characteristicC
Over voltage category3
Pollution degree2
Ambient temperature during operating40 °C
Width in number of modular spacings4
Built-in depth70 mm
Degree of protection (IP)IP2X
Connectable conductor cross section solid-core25 mm²
Connectable conductor cross section multi-wired16 mm²
Power loss14.6 W
Concurrently switching N-neutralyes
With interlocking deviceyes
Anti-nuisance tripping versionno


Product data sheet
Datasheet for Hager ADX482D, EAN: 3250611017073

Questions & answers

What is the delivery time of Hager ADX482D FI-LS 4P 10kA C-32A 30mA A?

The article Hager ADX482D FI-LS 4P 10kA C-32A 30mA A is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ADX482D to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Hager ADX482D FI-LS 4P 10kA C-32A 30mA A always at the best possible price. We can give you a discount of 2% on Hager ADX482D FI-LS 4P 10kA C-32A 30mA A if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager ADX482D FI-LS 4P 10kA C-32A 30mA A we can offer you a price of 302,92 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
