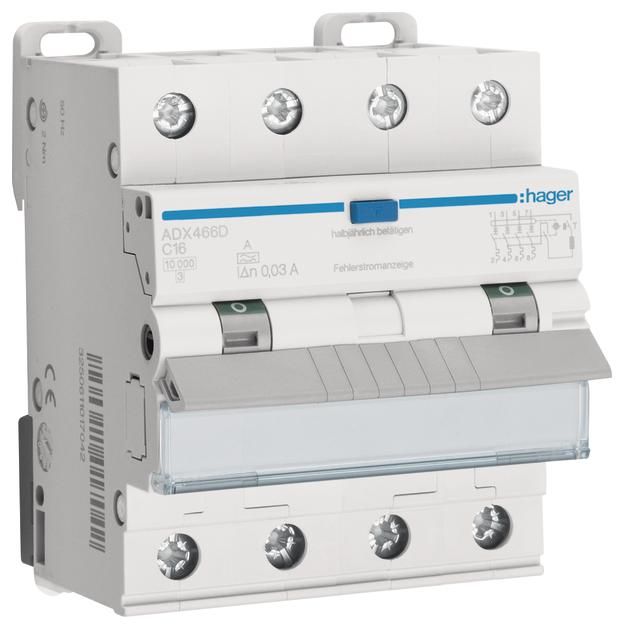

Hager ADX466D FI-LS 4P 10kA C-16A 30mA A
|
284,81 EUR |
|||||||||||
|
( 338,92 EUR incl. VAT ) ≈ £238.39 | ≈ $313.01 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >25 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 145534 | ||||||||||
| Mfg Part No: | ADX466D | ||||||||||
| UPC/EAN: | 3250611017042 | ||||||||||
| Weight: | 0.424 kg | ||||||||||
| Type: | ADX466D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADX466D:
Applications
The ADX466D is designed for use in 400 V three-phase networks, particularly in residential and commercial installations where high safety against electrical hazards is required. It protects people from electric shocks and prevents fires caused by overloaded cables. The combination of residual current and overload protection in a single device reduces the number of required components and simplifies installation. The protection class IP2X ensures protection against contact with solid objects and access to hazardous parts, but not against water or dust. The operating temperature is up to 40 °C, making it suitable for indoor use.
Functions and Equipment in Detail
The switch features a switching neutral conductor, meaning that when all phases are switched off, the neutral conductor is also interrupted. This is important to ensure safe disconnection of the power supply. The locking device enables secure mounting and locking in the enclosure. The energy limitation class 3 ensures limited energy release in the event of a fault, reducing the risk of thermal damage. The switch is equipped with a blue test button to check the residual current protection function. The residual current protection status is directly visible on the device.
Technology Explained Simply
The switch operates on the principle of residual current protection: it monitors the current flow in the conductors and trips when an imbalance between incoming and outgoing current is detected, indicating a fault current. The C tripping characteristic means the switch trips at a current of approximately 5 to 10 times the rated current (i.e., 80 to 160 A), which is typical for overloads. The rated voltage of 400 V and the rated insulation voltage of 500 V ensure safe operation in standard networks. The impulse voltage withstand of 4 kV protects the device against transient voltage surges. The power loss is 10.9 W, describing the heat generation during operation.
Compatibility and Accessories
The ADX466D is designed for installation in standard installation enclosures and has a width of 4 module units. It is compatible with various cable bridges, such as the K67E (6 mm², 250 mm) or K67L (10 mm², 250 mm, fork). Additionally, auxiliary and signaling contacts such as MZ201 or MZ202 can be used to implement additional functions such as status indication or remote control. The spacing piece LZ060 can be used for heat dissipation to reduce thermal load in the enclosure.
Mounting and Installation
The switch is mounted in a modular enclosure, with the lower connection terminal designed for the biconnect system. The connection cross-sections are up to 16 mm² for flexible conductors and up to 25 mm² for single-core conductors. The nominal torque is 2 Nm for both terminals. The mounting depth is 70 mm, which must be considered during enclosure planning. Mounting is done by simply snapping into the phase busbar, allowing individual removal.
Advantages in Operation
The ADX466D offers a compact and efficient solution for protecting electrical installations. The combination of residual current and overload protection in a single device reduces the number of required components and simplifies installation. The locking device and switching neutral conductor increase safety. Compatibility with various accessories allows flexible adaptation to specific requirements. The clear indication and test button facilitate maintenance and testing of the device. The service life is 2000 electrical and 4000 mechanical switching operations, ensuring high operational reliability.
| General | |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 16 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 10 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 3 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | C |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 16 mm² |
| Power loss | 10.9 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
