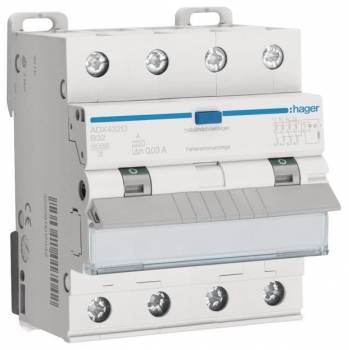

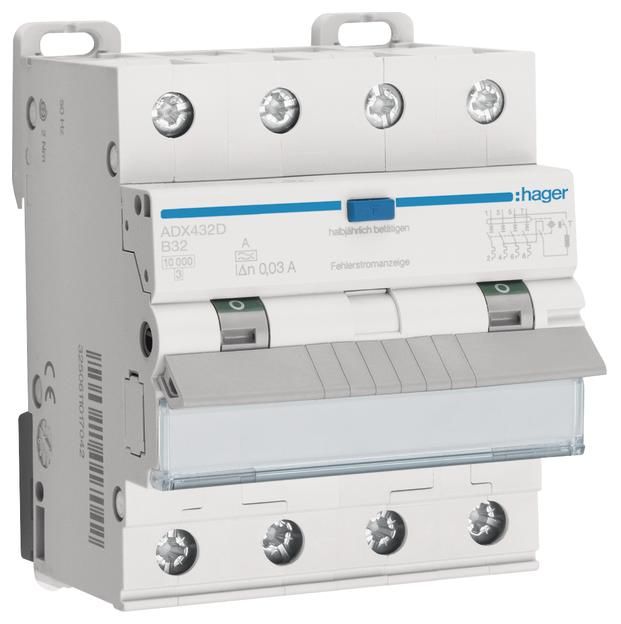

Hager ADX432D FI-LS 4P 10kA B-32A 30mA A
|
285,95 EUR |
|||||||||||
|
( 340,28 EUR incl. VAT ) ≈ £239.34 | ≈ $314.26 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| In Stock: >100 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 145448 | ||||||||||
| Mfg Part No: | ADX432D | ||||||||||
| UPC/EAN: | 3250611016991 | ||||||||||
| Weight: | 0.435 kg | ||||||||||
| Type: | ADX432D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ADX432D:
Applications
The ADX432D is designed for use in electrical distribution systems, particularly in 400-V networks consisting of three phases and a neutral conductor. It is suitable for installations where high safety against electrical faults is required, such as in residential buildings, commercial or industrial facilities. The tripping characteristic B ensures reliable disconnection in case of overloads and short circuits. The energy limitation class 3 ensures rapid energy limitation in the event of a fault, reducing the thermal stress on the installation.
Functions and equipment in detail
The switch features a switching neutral conductor, meaning that when all phases are disconnected, the neutral conductor is also interrupted. This is important to ensure safe disconnection of the power supply. The tripping characteristic is instantaneous, meaning the switch disconnects immediately upon reaching the tripping threshold. The protection class IP2X protects against contact with solid objects larger than 12.5 mm and is suitable for indoor use. The pollution degree class 2 accounts for slight pollution, as commonly found in normal indoor environments.
Technology explained simply
The switch is designed for a rated short-circuit breaking capacity of 10 kA, meaning it can safely disconnect even under high short-circuit currents. The impulse withstand current is 3 kA, ensuring the mechanical durability of the device under sudden current surges. The rated voltage of 400 V and frequency of 50 Hz correspond to standard network parameters in Europe. The power loss of 14.6 W is expected during operation at rated current and affects the heat generation within the device.
Compatibility and accessories
The ADX432D is designed for installation in standard distribution enclosures with a modular design. The width is 4 module units, and the mounting depth is 70 mm. Suitable accessories include cable bridges in various cross-sections (e.g. NYAF 6 mm² and 10 mm²), spacers for heat dissipation, and auxiliary and signaling contacts. These components allow flexible adaptation to different connection conditions and extend the functionality of the switch, for example by integrating signals for remote monitoring.
Mounting and installation
Mounting is carried out in a modular distribution system, where the switch is connected to the phase busbar via a biconnect lower terminal. The connection cross-sections are up to 16 mm² for flexible conductors and up to 25 mm² for single-core conductors. The recommended torque for the terminals is 2 Nm. The operating temperature range is from -25 °C to 40 °C, with the maximum ambient temperature during operation being 40 °C. The storage and transport temperature can reach up to 70 °C.
Advantages in operation
The switch offers a compact solution for combining overcurrent and residual current protection. The integrated interlock device facilitates safe handling and installation. The possibility to label the switch directly on the device supports clarity in the distribution. The high breaking capacity of 10 kA and energy limitation class 3 increase safety in the event of a fault. The tripping characteristic B ensures reliable response to overloads, which commonly occur in everyday use.
| General | |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Rated voltage | 400 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 32 A |
| Rated fault current | 0.03 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 10 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 3 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | B |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 4 |
| Built-in depth | 70 mm |
| Degree of protection (IP) | IP2X |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 16 mm² |
| Power loss | 14.6 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
Questions & answers
What is the delivery time of Hager ADX432D FI-LS 4P 10kA B-32A 30mA A?
The article Hager ADX432D FI-LS 4P 10kA B-32A 30mA A is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ADX432D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ADX432D FI-LS 4P 10kA B-32A 30mA A always at the best possible price. We can give you a discount of 2% on Hager ADX432D FI-LS 4P 10kA B-32A 30mA A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Hager ADX432D FI-LS 4P 10kA B-32A 30mA A we can offer you a price of 279,52 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
