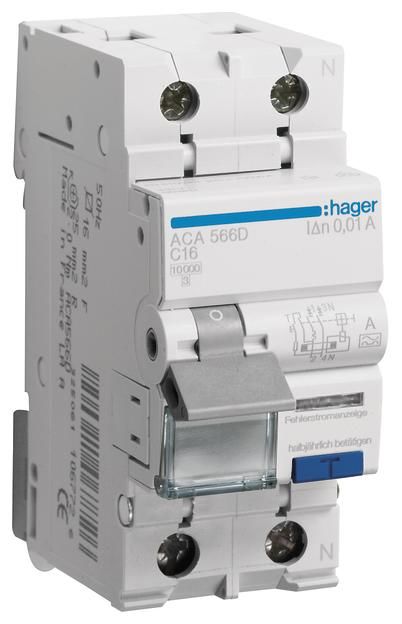

Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A
|
175,84 EUR 183,25 EUR |
|||||||||||
|
( 209,25 EUR incl. VAT ) ≈ £149.11 | ≈ $197.12 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 586052 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ACA566D | ||||||||||
| UPC/EAN: | 3250611067726 | ||||||||||
| Weight: | 0.224 kg | ||||||||||
| Type: | ACA566D | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Hager ACA566D:
| General | |
| Number of poles (total) | 2 |
| Number of protected poles | 1 |
| Rated voltage | 240 V |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated current | 16 A |
| Rated fault current | 0.01 A |
| Leakage current type | A |
| Current limiting class | 3 |
| Rated short-circuit breaking capacity IEC 60947-2 | 10 kA |
| Rated short-circuit breaking capacity Icn acc. EN 61009-1 | 10 kA |
| Disconnection characteristic | Undelayed |
| Surge current capacity | 0.25 kA |
| Voltage type | AC |
| Frequency | 50 Hz |
| Release characteristic | C |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Ambient temperature during operating | 40 °C |
| Width in number of modular spacings | 2 |
| Built-in depth | 68 mm |
| Degree of protection (IP) | IP20 |
| Connectable conductor cross section solid-core | 25 mm² |
| Connectable conductor cross section multi-wired | 16 mm² |
| Power loss | 5.2 W |
| Concurrently switching N-neutral | |
| With interlocking device | |
| Anti-nuisance tripping version | |
Questions & answers
What is the delivery time of Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A ?
The article Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Hager ACA566D to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A always at the best possible price. We can give you a discount of 2% on Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Hager ACA566D residual current circuit breaker 1, C-16A 10kA 10mA Type A we can offer you a price of 161,33 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
