Grandstream GWN7672 Wi-Fi 7 Access Point 2x2:2. Next-generation enterprise-grade Wi-Fi 7 access point with BE11000, ideal for small to medium businesses. Tri-band 2×2:2 MU-MIMO, DL/UL-OFDMA technology, 4096-QAM modulation, MLO technology, Multi-RU and Preamble-Punctu content_copy

The Grandstream GWN7672 is a high-performance Wi-Fi 7 access point designed for enterprise quality, specifically tailored for small to medium-sized businesses requiring a scalable and future-proof wireless infrastructure. With an aggregated wireless throughput of up to 11 Gbit/s and a wired throughput of 5 Gbit/s, it delivers maximum bandwidth for demanding applications. The integrated Tri-Band technology (2×2:2 MU-MIMO) combined with MLO, 4096-QAM modulation, Multi-RU, and Preamble-Puncturing technology ensures optimal frequency utilization, low latency, and enhanced anti-interference capability. The Wi-Fi 7 technology enables a significant increase in data transfer rates and an extended range of up to 175 meters, ensuring comprehensive coverage of large areas without performance loss.

The access point supports up to 384 simultaneous Wi-Fi clients and is ideal for high-density user environments. It features advanced QoS functions to ensure low-latency real-time applications such as Voice-over-Wi-Fi, video streaming, or video conferencing. The integrated distributed network management without an external controller — with an embedded controller in the web interface — simplifies installation and control. Additionally, the GWN7672 supports the GDMS Networking cloud platform and the local GWN Manager for flexible network management solutions. The secure provisioning via digital signatures, unique security certificates, and random default passwords protects against unauthorized access. Automatic power adjustment upon PoE+ detection ensures seamless integration into existing networks. With two 5-Gigabit network ports and PoE+ support (802.3at), the GWN7672 is suitable for flexible wall or ceiling mounting. The integrated Bluetooth 5.3 Low Energy technology enables additional functionalities such as BT location services. The device is compatible with Wi-Fi-enabled IP phones from Grandstream and is ideal for Voice-over-Wi-Fi systems.

Technical Specifications

• Product Type: Access Point
• WLAN Standard: IEEE 802.11a/b/g/n/ac/ax/be (Wi-Fi 1 to 7)
• Bluetooth Standard: 5.3, Low Energy
• Antenna Technology: internal
• Antenna Gain: 5.5 dBi
• Mounting Type: Wall, Ceiling
• Aggregated Wireless Throughput: 11 Gbit/s
• Aggregated Wired Throughput: 5 Gbit/s

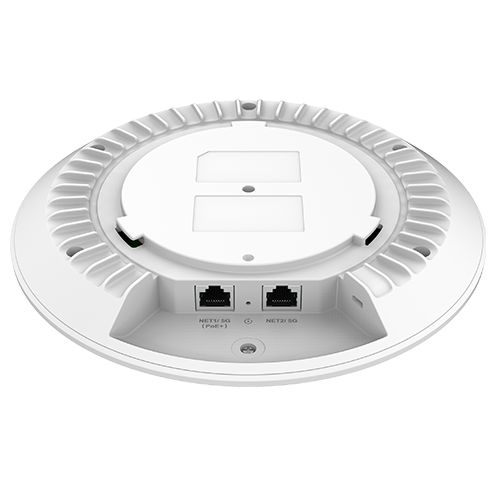

• Ports: RJ45 (2× 5-Gigabit Ports)
• Power Supply: PoE+ (802.3at), power adapter not included
• Power Consumption in Operation: 25 W
• Operating Temperature: 0 °C to 45 °C
• Color: White
• Dimensions: 220 mm (H) × 220 mm (W) × 54 mm (D)
• Weight: 838.4 g
• Supported Clients: up to 384 simultaneously
• Security Features: secure boot, digital signatures, unique certificates, random default passwords
• Network Management: embedded controller (up to 50 local APs), GDMS Networking (Cloud), GWN Manager (local)
• Included in Package: Grandstream GWN7672 WLAN Access Point, mounting kits, quick start guide
• ear Category (ElektroG): Category 6 (small devices for IT and telecommunications technology)
