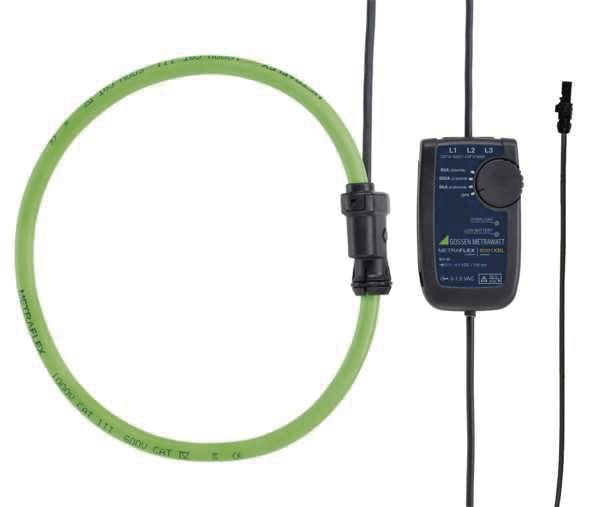

Gossen Z461A METRAFLEX 6001XBL/24 current sensor

Flexible current sensor 60/600/6000 AAC, loop length 61... 122 cm. The METRAFLEX are AC current sensors based on the Rogowski principle. They can be used to measure alternating current up to 3000 A or 6000 A by connecting them to a suitable measuring device (data logger, network analyzer, etc.). The flexible current sensors are designed for use with MAVOWATT 30, 40, 70 or any measuring instruments with 1.5 V AC measuring input and Hypertronics connector. They can be placed around one or more conductors of any design (insulated cables, busbars, pipes). For autonomous operation of the measuring amplifier, it is powered by internal batteries. Wide range of applications, 3 measuring ranges 30/300/3000 A AC and high bandwidth 10 Hz ... 20 kHz for harmonic analysis. Precise measurement even at low currents, due to large dynamic range and high sensor sensitivity. Low position influence of the conductor and minimal external field influence. Easy to use in confined spaces thanks to small sensor cross-section 9.9 mm and slim end cap 13.6 mm - loop length 610 mm. Safe handling even with protective gloves, opening the sensor and setting the measuring range with one hand. Extremely long battery life up to 2000 hExternal power supply for long-term measurements with MAVOWATT 50,Connection cable includedCurrent sensor with protection class IP65, measuring amplifier with IP65High level of safety for the user, measuring category 1000V CAT III, 600V CAT IV and unlimited overload capacity. The flexible measuring head enables current measurements even in hard-to-reach places. The sensors can be placed around one or more conductors of any design (insulated cables, busbars, pipes). The measuring amplifier is powered by internal batteries for autonomous operation.In the MAVOWATT 230 / 240 and MAVOWATT 270 / 270-400 devices, the sensors are powered directly by the power analyzer. With other network analyzers, the sensors can be operated via an external power supply in the case of long-term measurements. CAT III 1000 VWide application area, 3 measuring ranges 60 A/600 A/6000 A AC and high bandwidth 10 Hz ... 10 kHz for harmonic analysisPrecise measurement even at low currents, due to large dynamic range and high sensor sensitivityLittle influence of the position of the conductor and minimal external field influenceEasy to use in confined spaces thanks to small sensor cross-section 9.9 mm and slim end cap 13.6 mmSafe handling even with protective gloves, opening the sensor and measuring range setting with one handExtremely long battery life up to 2000 hExternal power supply for long-term measurements via optional plug-in power supplyCurrent sensor with protection class IP65, measuring amplifier with IP65High safety for the user, measuring category 1000 V@CATIII, 600 V@CATIV and unlimited overload capacityFeature Specification Measuring ranges 60 A 600 A 6000 A Output signal (AC) 50 mV/A 5 mV/A 0.5 mV/A Leakage current / noise 8 mV eff. 2 mV eff. 2 mV eff.Measurement uncertainty (45 ... 65 Hz) ±1% ±0.1 A ±1% ±0.1 A ±1% ±1 A Overload capacity unlimited Linearity ±0.2% of measured value Bandwidth 10 Hz to 10 kHz (-1 dB) Phase angle error < ±1° (45 ... 65 Hz) Min. load impedance 100 kO for specified accuracy . Flexible current sensors - METRAFLEX 3001 XBL or 3003 XBLOperating instructions
Type: Z461A
