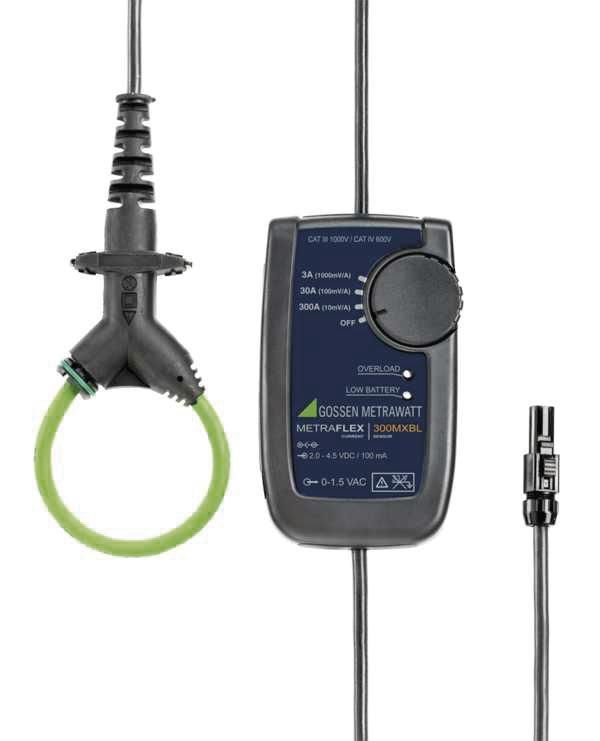

Gossen Z207Z METRAFLEX 300MXBL/4 current sensor

Flexible mini AC sensors METRAFLEX 300M XBL. With the micro Rogowski current sensor you can measure safely, precisely and flexibly on busbars as well as in power distribution. With the micro Rogowski current sensor you can measure safely, precisely and flexibly on busbars as well as in power distribution. The coil is particularly suitable for hard-to-reach and narrow places. The current sensor can be operated by an external power supply for long-term measurements. Wide range of applications, 3 measuring ranges 3 A/30 A/300 A AC and high bandwidth 20 Hz ... 100 kHz for power and network analysis Precise measurement even at low currents, thanks to large dynamic range and high sensor sensitivity Low influence of the conductor position and minimal external field influence Easy to use in confined spaces thanks to small sensor cross-section 6 mm Safe handling even with protective gloves, opening of the sensor and measuring range setting with one hand METRAFLEX 300MXBL: External supply for long-term measurement: - MAVOWATT 230/240/270/270-400: Supply via the MAVOWATT, no additional accessories required - MAVOWATT 20/30/40/70: DC/DC converter ISOFLEX-MHXL Current sensor with protection class IP50, measuring amplifier with IP50 High safety for the user, measurement category 1000 V@CAT III, 600 V @ CAT IV and unlimited overload capacity, designed for continuous operation. With the METRAFLEX 300MXBL you can measure safely, precisely and flexibly both on the busbars and in the power distribution. The coil is particularly suitable for hard-to-reach and narrow places. The METRAFLEX are AC current sensors based on the Rogowski principle. They can be used to measure alternating current up to 300 A by connecting them to a suitable measuring device (multimeter, data logger, network analyzer, oscilloscope, etc.). The flexible measuring head enables current measurements even in hard-to-reach places. The sensors can be placed around one or more conductors of any design (insulated cables, busbars, pipes). The measuring amplifier is powered by internal batteries for autonomous operation. The flexible METRAFLEX 300MXBL current sensors can be operated for long-term measurements using an external power supply, see ISOFLEX-MHXL accessories. With the MAVOWATT 230/240/270/270-400, the METRAFLEX 300MXBL current sensors are supplied with power directly from the device. No external power supply is required. Wide range of applications, 3 measuring ranges 3 / 30 / 300 A AC and high bandwidth 20 Hz ... 100 kHz (±1dB / 50 Hz) for harmonic analysis Precise measurement even at low currents, thanks to large dynamic range and high sensor sensitivity Low influence of the conductor position and minimal external field influence Easy to use in confined spaces thanks to small sensor cross-section 6 mm Safe handling even with protective gloves,Opening the sensor and setting the measuring range in one-hand operation Current sensor with protection class IP50, measuring amplifier with IP50 High level of safety for the user, measuring category 1000V @CAT III, 600V @CAT IV and unlimited overload capacity, designed for continuous operation Measuring ranges 3 A 30 A 300 A Scaling factor 20 200 2000 Output sensitivity 500 mV/A 50 mV/A 5 mV/A Accuracy (50 ... 60 Hz) under reference conditions ±1% of measured value ±0.1 A ±1% of measured value ±0.5 A Noise 1.5 mV eff. Output connection 4-pin Hypertronics connector Sensor length depending on model (article number): METRAFLEX 300MXBL/2 (Z207Q): 16 cm METRAFLEX 300MXBL/3 (Z207Y): 22 cm METRAFLEX 300MXBL/4 (Z207Z): 31.5 cm Sensor diameter (clamp opening) depending on model (article number): METRAFLEX 300MXBL/2 (Z207Q): 50 mm METRAFLEX 300MXBL/3 (Z207Y): 70 mm METRAFLEX 300MXBL/4 (Z207Z): 100 mm . Flexible Mini AC Sensors METRAFLEX 300M XBL Operating Instructions
Type: Z207Z
