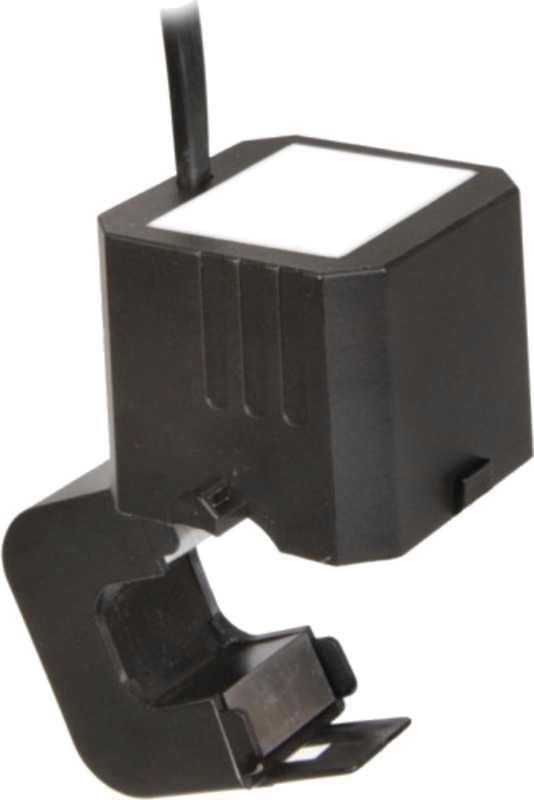

Gossen U518A SC40-B 150/5A 1VA Kl.1 cable conversion current transformer D18mm L=0.5m content_copy

Cable conversion current transformer SC40-B (150/5). Thanks to the cable conversion current transformer SC40-B, the installation of measuring devices is now even easier. Thanks to their compact design, the cable conversion current transformers SC40-B are particularly suitable for use in places that are difficult to access and where space is limited. The divisible core halves also make installation on the cable or rail easier. . Divisible, compact current transformer for a primary nominal current of 150 A and a secondary nominal current of 5 A. Easy and time-saving installation thanks to divisible core halves. Particularly suitable for retrofitting, as the primary conductors do not need to be separated. Enables retrofitting without interrupting the power supply. Compact design enables use in places that are difficult to access and where space is limited. Audible 'click' sound confirms correct installation. Additional security using UV-resistant cable ties Class accuracy: 1. Thanks to their compact design, the cable conversion current transformers are particularly suitable for use in places that are difficult to access and where space is limited. The divisible core halves also make installation on the cable or rail easier. Cable conversion current transformers are the right choice wherever an interruption in the current path is problematic or a measuring device must be easily retrofitted. The secure installation of the primary cable in the current transformer is guaranteed by the design and confirmed by a clearly audible 'click'. Two UV-resistant cable ties supplied additionally fix the transformer in place. The cable conversion current transformer SC40-B transforms high alternating currents into small, harmless, measurable currents (secondary current). The secondary current is standardized and is 5 A. At the same time, they galvanically separate the primary circuit and the secondary circuit from each other. Primary nominal current: 150 A Secondary nominal current: 5 A Class accuracy: 1 Load: 1 VA Cable opening: max. Ø 18 mm Length and cross-section of the secondary cable: 0.5 m 1.5 mm². Current transformer SC40-B
Type: SC40-B, 150/5A, 1VA, Kl1
