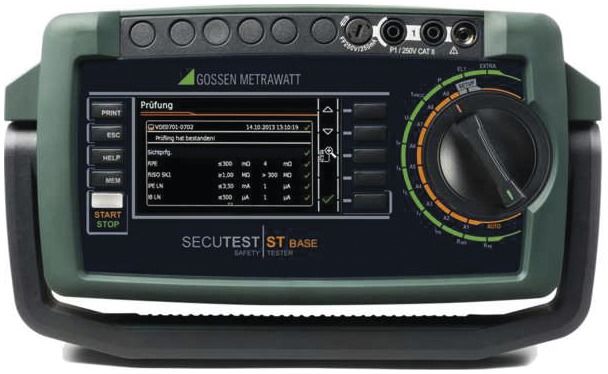

Gossen SECUTEST ST BASE testing device M707A

Test device with standard-compliant test sequences for testing the electrical safety of devices after repairs and during a repeat test (DGUV Regulation 3, MPBetreibV). The SECUTEST ST BASE offers all measuring and testing functions for testing the effectiveness of protective measures for electrical devices, medical devices and welding devices - both with predefined and optionally with programmable test sequences that are required in accordance with the latest test standards DIN EN 50678 (VDE 0701) DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4). The new, even further optimized measuring cycles ensure even more measurements per day. And operation is so simple that tests can be carried out without any special knowledge. With the SECUTEST ST BASE service guarantee, you can be sure that your test device will still be up to date in 10 years. It is not for nothing that some of our customers have been using the SECUTEST for over 20 years - and it is the best-selling safety tester for all devices with and without plugs up to 400 volts. . pre-configured test sequences for quick testing of electrical devices suitable for use by trained persons extensive data management and storage concept for automatic test sequences and individual measurements for up to 50,000 data records quick access to the measurement and test functions using rotary switches, direct selection keys and soft keys report creation in HTML on USB memory. User guidance through pre-programmed test sequences according to standards with automatic evaluation - therefore ideally suited for use by trained persons. Fast access to the measuring and testing functions using rotary switches, direct selection keys and soft keys. The compact, shock-proof housing with integrated rubber protection makes it particularly suitable for mobile use, even on construction sites and in industrial environments. The unique multiple measurement enables convenient documentation of several measuring points. Also suitable for international use thanks to extensive setting options for language, keyboard, character set, date, time and country-specific standard versions. Safe, comprehensive and efficient testing of electrical devices according to the latest test standards DIN EN 50678 (VDE 0701) and DIN EN 50699 (VDE 0702), including extension cables and PRCDs as well as testing of audio video and IT devices based on the product standard IEC/EN 62368 or production standard IEC/EN 62911 electrical medical devices according to IEC/EN 62353 (VDE 0751) arc welding equipment according to IEC/EN 60974-4 (VDE 0544-4). Protective conductor resistance measurement with 200mA insulation resistance measurement leakage current measurements replacement (alternative) method, direct method, differential method: protective conductor current, touch current device leakage current, patient leakage current, leakage current from the application part voltage measurement: touch voltage, SELV,PELV voltage PRCD tripping time Function test (U,I,P,S,LF,f) Line test: continuity, short circuit, polarity (wire swap) Temperature measurement (for Pt100/Pt1000 sensor) . Pre-programmed sequences (according to VDE 0701-0702) for testing PRCDs of type PRCD standard, SPE-PRCD, PRCD-S and PRCD-K RFID transponders (Z751R,S,T) reading (with SCANBASE RFID Z751E) Test reports in HTML on USB memory Optional feature package DB-Comfort Feature package database extension Bluetooth . 1 SECUTEST ST BASE test device 1 mains connection cable 1 test probe, 2 m uncoiled 1 USB cable, USB A to USB B, length 1.0 m 1 attachable crocodile clip 1 DAkkS calibration certificate 1 quick guide D, GB 1 detailed operating instructions on the Internet 1 IZYTRONIQ BUSINESS STARTER software
Type: SECUTEST ST BASE
