Gossen GTZ3240000R0001 METRAwin 10 software f.Multimeter, content_copy

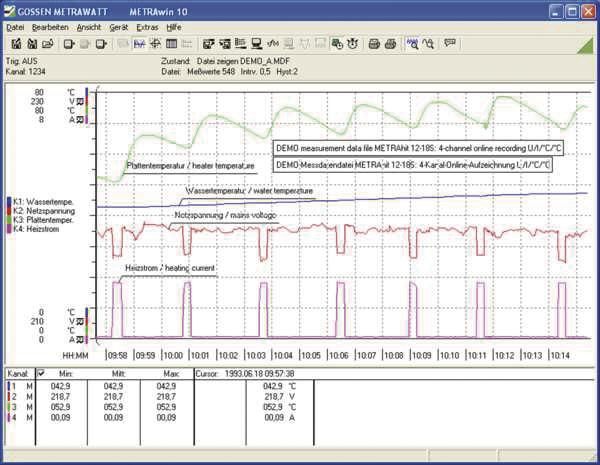

System software for METRAHIT multimeters. With METRAwin 10 and an interface adapter, every METRAHIT multimeter becomes a professional PC-based universal recording system. . The measured values are retrieved from the multimeters using METRAwin 10, managed on the PC and displayed as Yt or XY diagrams (up to 6 channels) or in table form (up to 10 channels). In online mode, the measurement data is displayed on up to four virtual pointer instruments or digital displays (with adjustable limit values). The powerful online arithmetic enables evaluation and analysis of the data. The sampling can be set over a wide range - depending on the multimeter type and measuring function. The measurement data can be exported as an ASCII file or easily transferred to other Windows applications (e.g. Word, Excel) via the clipboard. . METRAwin 10 /METRAHIT supports the following multimeter types (see complete list below): METRAHIT Starline series (AM XTRA, X-TRA, PM series, E and S series) in combination with USB X-TRA interface adapter (multi-channel). METRAHIT 30M in combination with USB-Hit interface adapter (only 1-channel) or BD232 (multi-channel) METRAHIT 22S-29S / M / C / EX / I in combination with USB-Hit interface adapter (only 1-channel) or BD232 or memory adapter SI232-II or SI232 (multi-channel) METRAHIT 12S-18S / U / T / One+ in combination with RS232 interface adapter (only 1-channel) or memory adapter SI232-II or SI232 (multi-channel) The user interface can be set to German, English, French, Spanish, Italian and Slovak. The software runs under Windows 98, 2000, XP, Vista, 7 (32/64), 8 (32/64) and 10 (32/64) - the current version can be downloaded below.
Type: METRAwin 10
