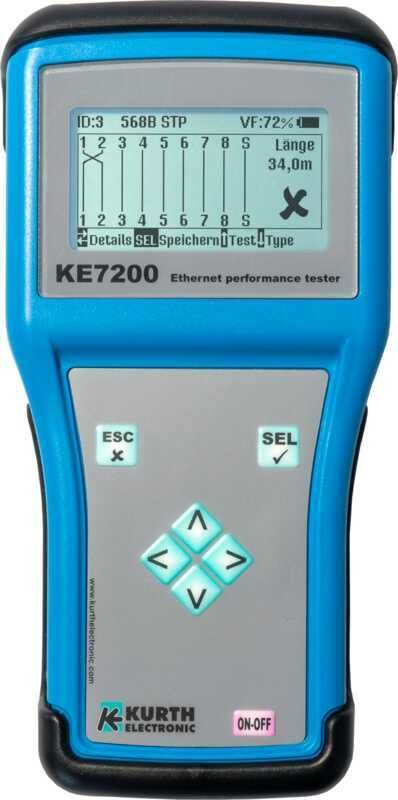

Gossen D720A KE7200 network tester with memory function

KE7200 network tester with memory function. The ideal helper for commissioning tests, troubleshooting and documentation in networks! The KE7200 network tester with memory function is the ideal helper for commissioning tests, troubleshooting and documentation in data and telecommunications networks - with an outstanding price/performance ratio. Detection and localization of cable faults from 1 wire pair Save measurements, including Ethernet Manager software for creating reports Integrated, configurable cable database from 1 pair telephone including Profinet Detection of branches in the telecommunications network (bridge taps) - optional TDR cable length measurement up to 200 m. Power over Ethernet load test up to 90 watts in accordance with IEEE802.3af/at/bt Detection of 10/100/1000 MBit connections Network scan/ping stress test Port finder function and tone transmission mode Overvoltage protection up to 60 V DC. Versatile functions, the large graphic display and intuitive operation enable the user to work efficiently. Long battery life and the robust housing are the perfect prerequisites for daily use. The KE7200 checks wires and wire pairs of the cable routes for continuity, interruption, short circuit, swapping and overdrawing (split pair). In the case of short circuits and interruptions, the KE7200 even determines the distance to the fault location using a precise TDR method. With the cable database that can be configured internally by the user, unknown cable and wiring diagrams are a thing of the past. Up to 32 individual remote units can be managed by the KE7200. The use of several remote units saves time and walking distances and thus shortens the measurement time at the customer's site. The device checks connections for the availability of Power over Ethernet (PoE, PoE+ and PoE++ as well as LTPoE) and determines the available power via load testing. Active network tests, such as the detection of the link speed in 10¿/¿100¿/¿1000 Mbit networks, the listing of the existing network participants including the name, IP and MAC address of the participant and the configurable ping stress test with detailed statistics, provide information about the network and any faulty components. To assign active data ports on the switch at the remote end of the line, the link LED on the switch is activated using the port finder function. The integrated tone transmission mode enables clear line assignment for unconnected connections using the optional Probe P310 search signal receiver. The optional software for detecting branches in the in-house telecommunications cabling is ideal for tests in the telecommunications network, as these can severely impair the operation of xDSL services due to signal reflection. The KE7200 determines the presence of a branch in the connected 2-wire line and at the same time the distance to the branch. The KE7207 and KE7208 sets are a complete solution consisting of a network tester and a cable locator.Network tester with memory function with 2 remote units KE7010, adapter set RJ45 to coax, test leads, cable RJ11 to banana plug with crocodile clips, PC software and bag.
Type: KE7200
