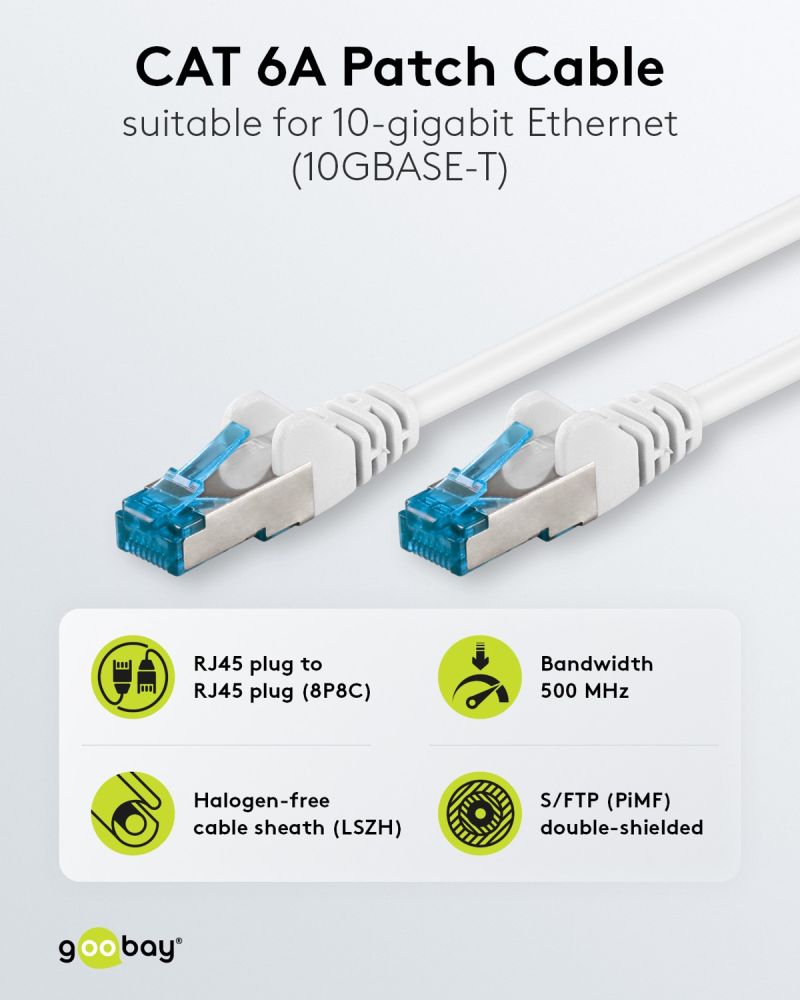

Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH)
|
2,25 EUR |
|||||||||||
|
( 2,68 EUR incl. VAT ) ≈ £1.88 | ≈ $2.47 plus delivery charges: 55,00 € |
|||||||||||
| in stockinfo_outline | |||||||||||
| In Stock: >1000 pieces | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 346271 | ||||||||||
| Mfg Part No: | 93667 | ||||||||||
| UPC/EAN: | 4040849936678 | ||||||||||
| Weight: | 0.0275 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Goobay 93667:
Applications
The cable is designed for use in networks with high requirements for bandwidth and signal quality. It supports 10-Gigabit Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s) and is therefore suitable for modern networks requiring high data rates and low latency. The cable construction with S/FTP overall shielding – consisting of an aluminium foil shielding (PiMF) for individual wire pairs and an aluminium braid shielding for the entire cable jacket – provides effective protection against electromagnetic interference. This is particularly important in environments with high electromagnetic noise, such as offices or industrial facilities.
Functions and equipment in detail

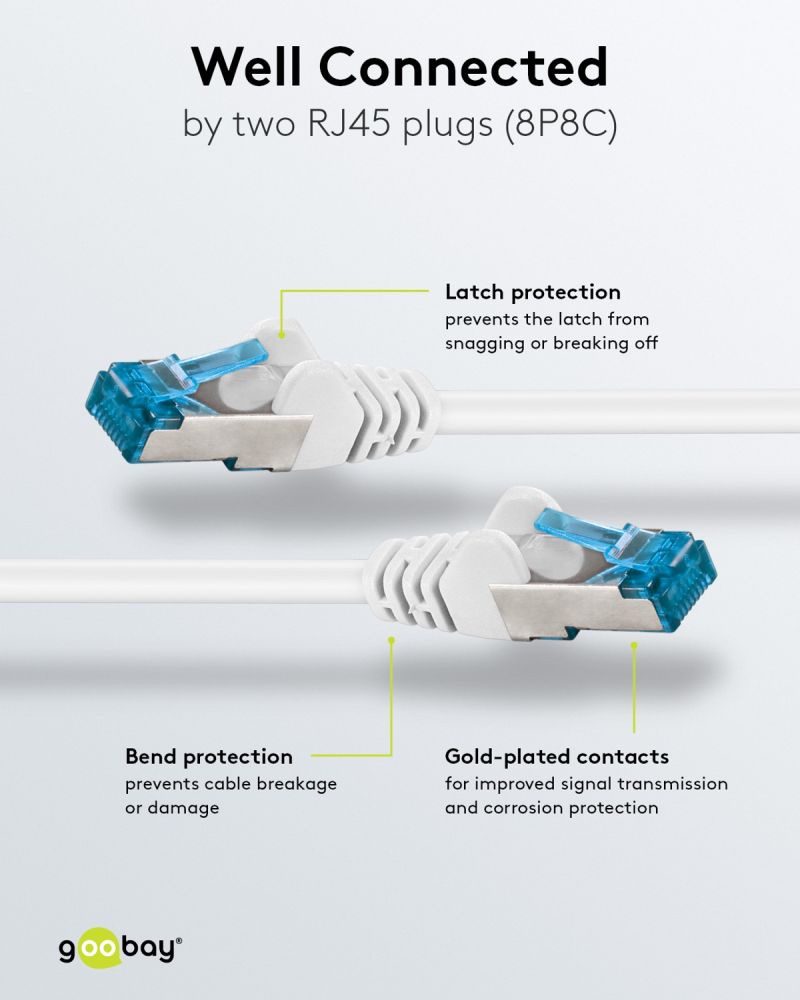

The connectors are fitted with strain relief boots at both ends to reduce mechanical stress during bending or installation and to protect the cable from breakage. Additionally, the RJ45 connectors feature a latch protection, preventing the latch from catching or breaking and thus ensuring a reliable mechanical connection. The cable length is printed directly on the connectors, which is helpful during installation and maintenance.
Technology explained simply

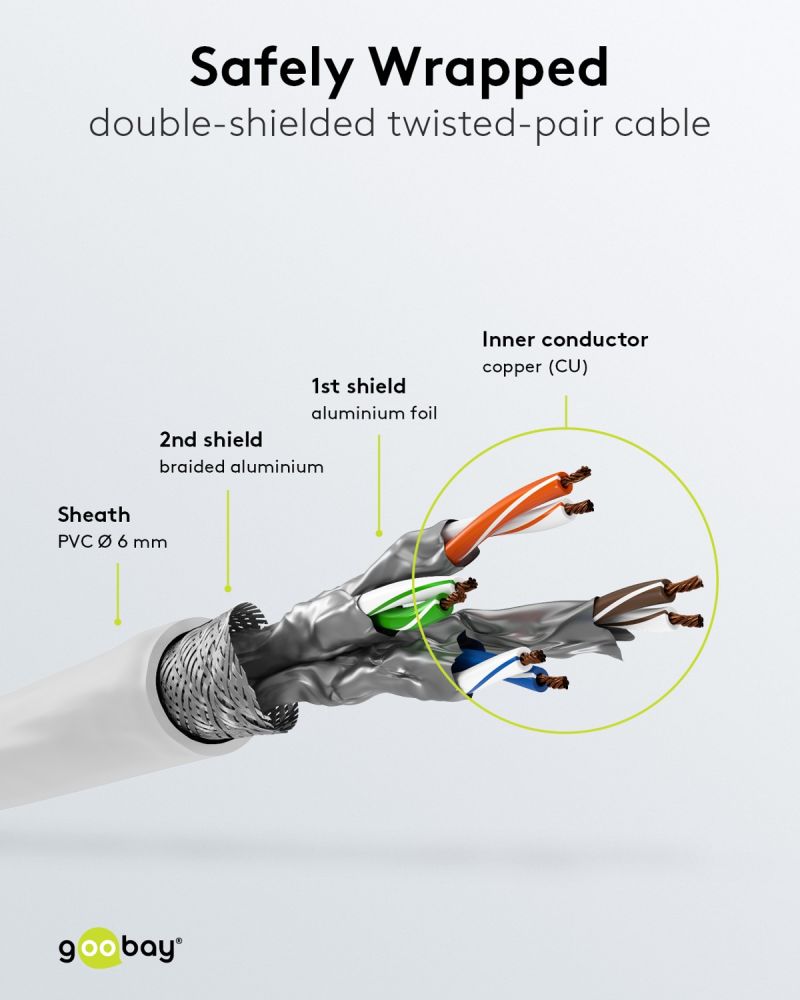

The shielding class S/FTP (PiMF) means that each wire pair is individually shielded with aluminium foil (PiMF = Pair in Foil) and additionally the entire cable jacket is surrounded by an aluminium braid. This double shielding minimizes the impact of external interference and simultaneously prevents electromagnetic fields from radiating out of the cable. The maximum bandwidth is 500 MHz, enabling use for current and future network standards. The cable is specified according to ISO/IEC 11801 Cat 6A Class Ea Channel Link and has been tested accordingly, with a test report included.
Compatibility and accessories
The cable is suitable for Power over Ethernet (PoE and PoE+), meaning it transmits power and data over the same network cable. This is particularly useful for devices such as IP cameras, access points or VoIP phones, which are powered via the network. The wiring follows EIA/TIA-568B, which represents a standard wiring configuration for Ethernet networks. The cable jacket is made of halogen-free material (LSZH), producing lower smoke and toxicity values in case of fire, thus ensuring higher safety.
Installation and mounting
The cable has a diameter of 5.9 ± 0.2 mm and a minimum bending radius of 59 mm, which should be considered during installation to avoid mechanical damage. The operating temperature ranges from -20 °C to +65 °C, allowing use in indoor and outdoor environments, provided the ambient conditions remain within these limits. The stable jacket and strain relief construction facilitate installation, especially in tight or demanding routing situations.
Advantages in operation
The combination of double shielding, gold-plated contacts and pure copper conductors ensures high signal quality and reliability. The PoE capability enables flexible installation without additional power supply. The length marking on the connectors and the robust construction simplify maintenance and identification within the network. The cable is designed for use in networks with high requirements for bandwidth and interference protection, offering a long-term stable connection.

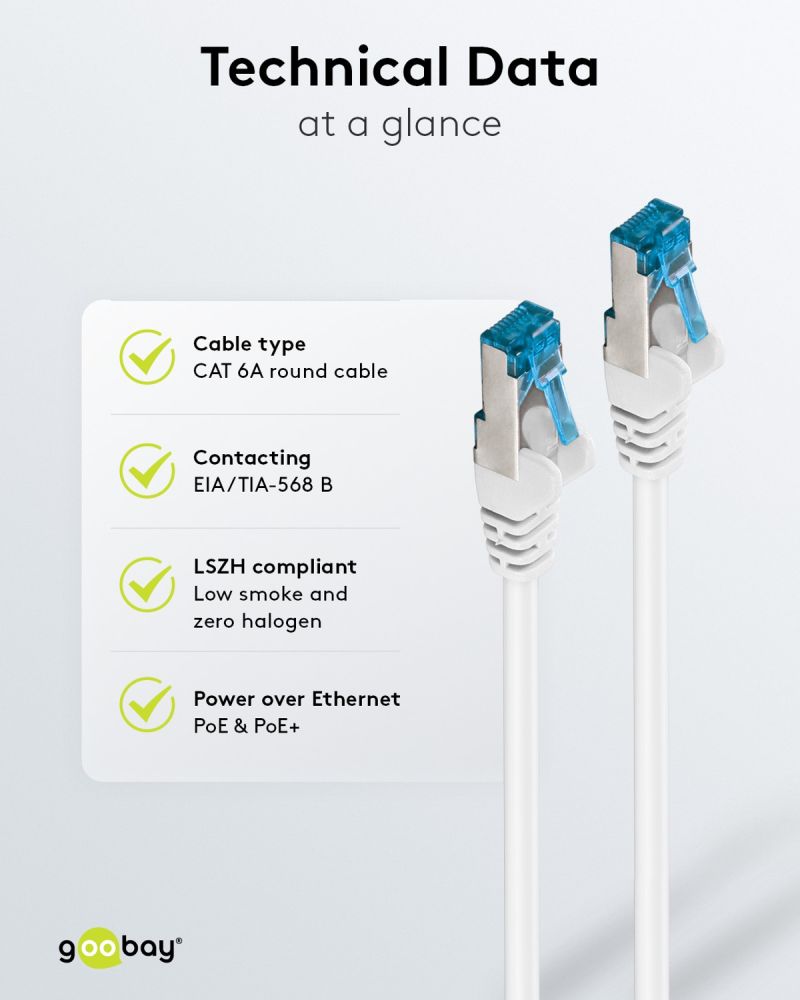

| Technical data | |
| Connection, type | RJ45 connector (8P8C) |
| Connection 2, type | RJ45 connector (8P8C) |
| Bend protection | Ambidextrous |
| Pin retention protection | Ambidextrous |
| Connection, contact material | Gold-plated 3μm |
| Cable type | Tubular cable |
| Type 1, shielding | Film (Alu) PiMF |
| Type 2, shielding | Braided (Alu) overall shield |
| Conductor, material | CU (Copper) |
| Cable jacket, material | LSZH |
| Colour version | White |
| Colour | White |
| Special feature | Length indication on connector |
| Connection, shielding | |
| LSZH-compliant | |
Questions & answers
What is the delivery time of Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH)?
The article Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH) is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Goobay 93667 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH) always at the best possible price. We can give you a discount of 2% on Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of Goobay 93667 CAT 6 A patch cable, S/FTP (PiMF), white - copper conductor (CU), halogen-free cable sheath (LSZH) we can offer you a price of 2,15 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
