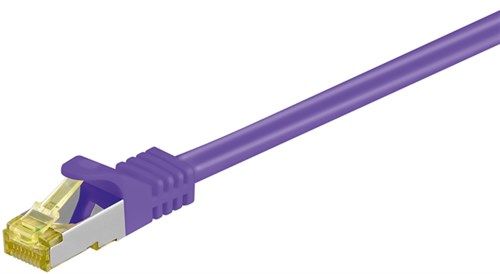

Goobay 91636 RJ45 patch cable S/FTP (PiMF), with CAT 7 raw cable, violet - LSZH halogen-free, copper, RJ45 (CAT 6A) plug
|
11,78 EUR |
|||||||||||
|
( 14,02 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |||||||||||
| In Stock: >50 pieces | |||||||||||
| Lieske Part No.: | 388665 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 91636 | ||||||||||
| UPC/EAN: | 4040849916366 | ||||||||||
| Weight: | 0.25 kg | ||||||||||
|
Graduated prices net
|
|||||||||||

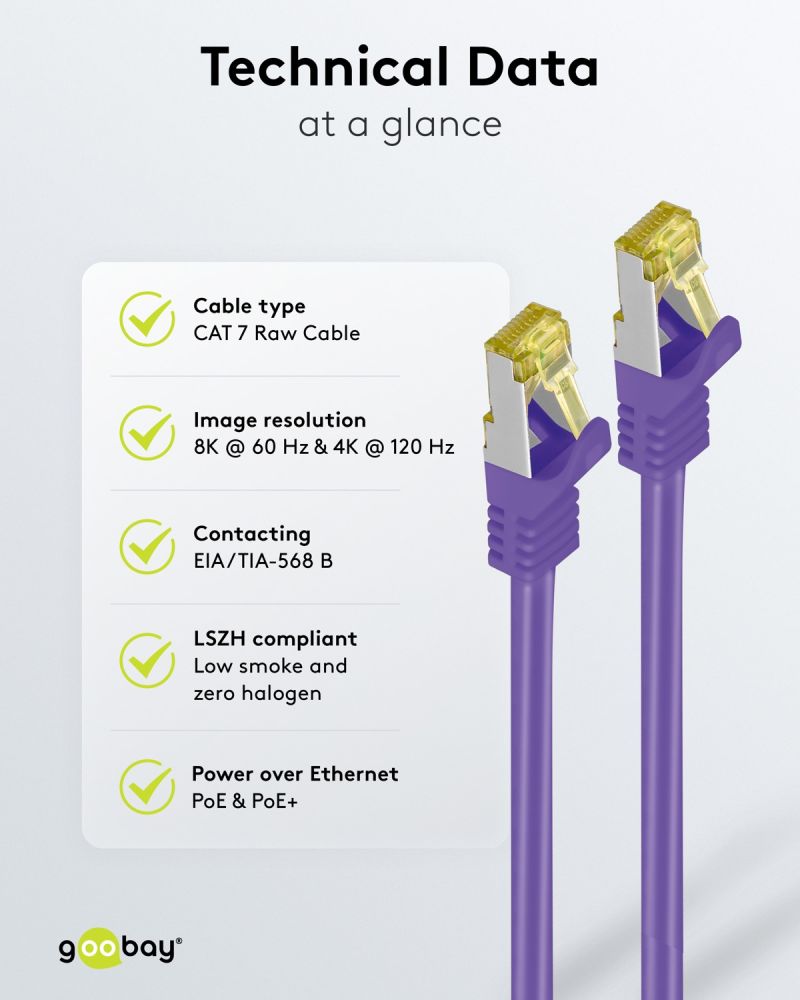

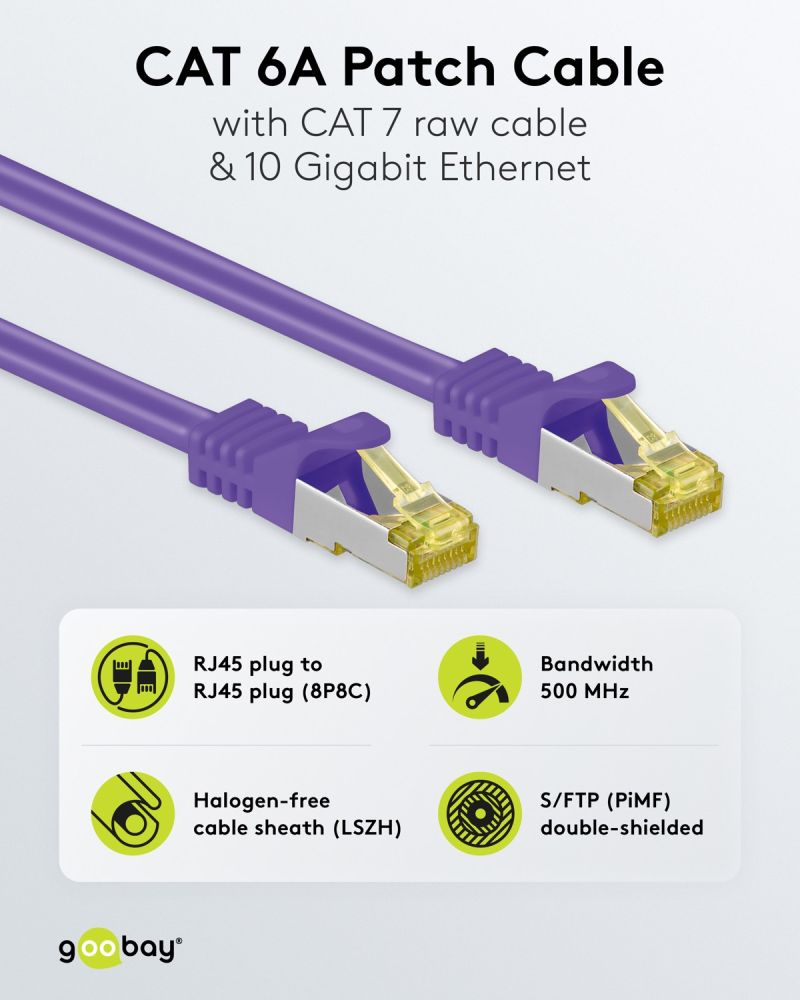

Product information for Goobay 91636:
double-shielded LAN/network cable for connecting your network components with 2x RJ45 plugs.
Cat 7 tested up to 600 MHz
with 50µ gold-plated contact surfaces (PINs)

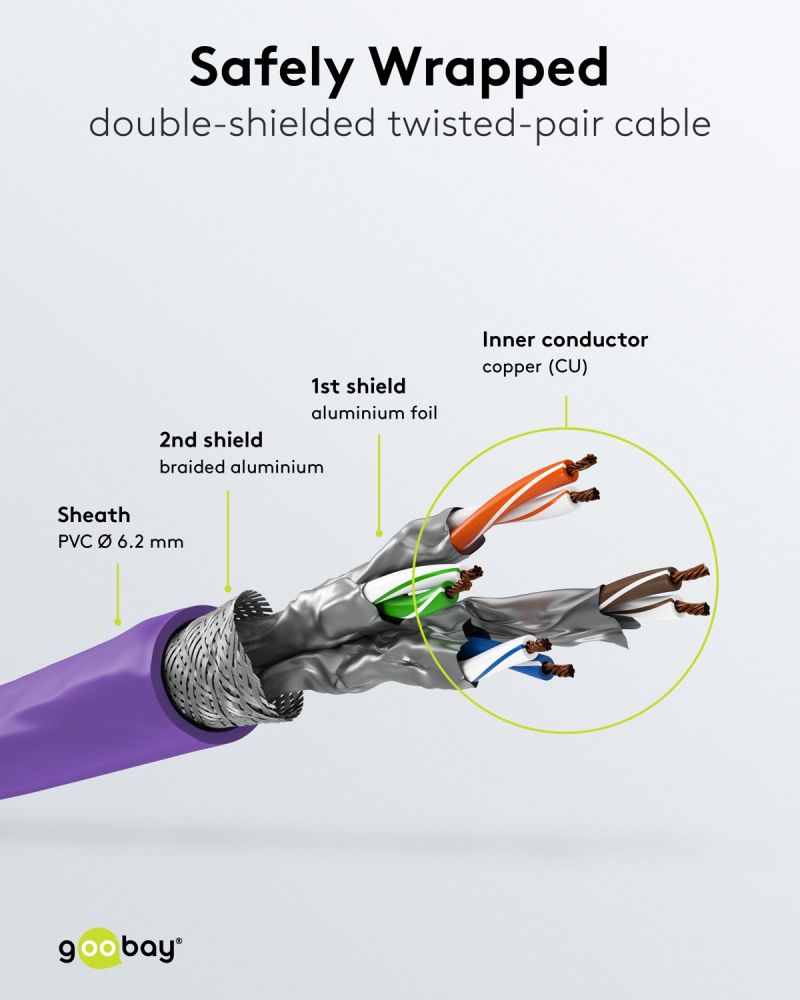

Wire pair shielding: PIMF (pairs in metal foil) + overall shielding: braid
Length information on sharpened slimline kink protection sleeve

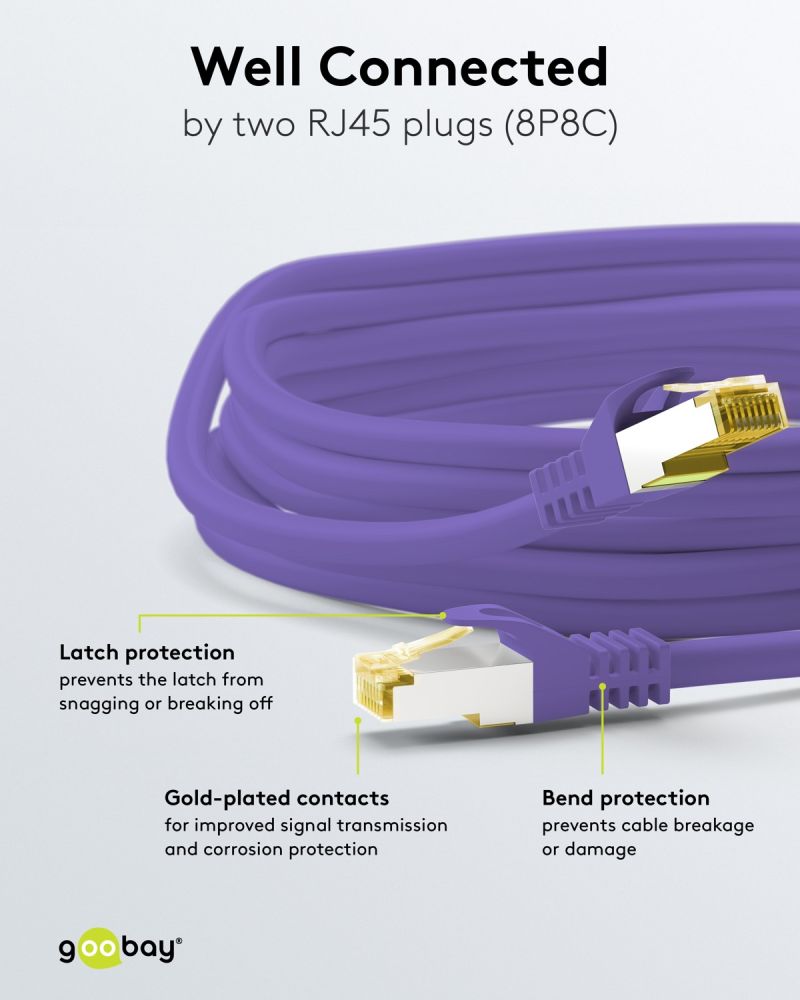

with locking lug protection
Pair sequence according to EIA/TIA 568B
Color: Violet
Connection, type: RJ45 plug (8P8C)
Cable length: 7.5 m
Connection, shielding: yes
Connection 2, type: RJ45 plug (8P8C)
Material outer jacket: LSZH
Specification: CAT 7
Cable type: round cable
Inner conductor, material: CU (copper)
AWG: 26
Shielding class: S /FTP (PiMF)
Number of shields: 2 x
type 1, shielding: foil (aluminum) PiMF
type 2, shielding: braid (aluminum) overall shield
| Features | |
| Thermal Monitoring Technologies | Yes |
| Thermal Design Power (TDP) | 115 W |
| CPU configuration (max) | 2 |
| Idle States | Yes |
| Supported instruction sets | AVX |
| Maximum number of PCI Express lanes | 40 |
| Physical Address Extension (PAE) | 46 bit |
| Embedded options available | No |
| PCI Express slots version | 3.0 |
| Processor package size | 52.5 mm |
| PCI Express configurations | x4, x8, x16 |
| Execute Disable Bit | Yes |
| Scalability | 2S |
| Technical details | |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon v2 |
| Product type | 4 |
| Born on date | Q3'13 |
| Market segment | SRV |
| Bus bandwidth | 8 |
| Status | 4 |
| Bus type units | GT/s |
| Launch date | 2013-09-10T00:00:00 |
| Processor cache | 25600 KB |
| Processor core voltage | 0.65?1.30 |
| Product name | Intel Xeon E5-2670 v2 (25M Cache, 2.50 GHz) |
| Memory | |
| Memory clock speeds supported by processor | 800,1066,1333,1600,1866 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| Memory channels supported by processor | Quad |
| Maximum internal memory supported by processor | 768 GB |
| ECC supported by processor | Yes |
| Power | |
| VID Voltage Range | 0.65 - 1.30 V |
| Processor | |
| FSB Parity | No |
| Number of QPI links | 2 |
| Box | Yes |
| Processor threads | 20 |
| System bus rate | 8 GT/s |
| Processor series | Intel Xeon E5-2600 v2 |
| Processor socket | Socket R (LGA 2011) |
| Processor cores | 10 |
| Component for | Server/Workstation |
| Processor cache | 25 MB |
| Bus type | QPI |
| Processor codename | Ivy Bridge EP |
| Processor family | Intel Xeon E5 |
| Processor model | E5-2670V2 |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor cache type | Smart Cache, L3 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.5 GHz |
| Other features | |
| Intel | VT-d,VT-x |
| Cache memory | 25 MB |
| Maximum internal memory | 786432 MB |
| Operational conditions | |
| Tcase | 82 |
| Processor special features | |
| Intel | No |
| Intel Virtualization Technology (VT-x) | Yes |
| InTru? 3D Technology | No |
| Intel Clear Video Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology for Directed I/O ( | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Fast Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Demand Based Switching | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Rapid Storage Technology | No |
| Intel 64 | Yes |
| Conflict Free processor | No |
| Intel TSX-NI version | 0.00 |
| Graphics | |
| On-board graphics adapter | No |
