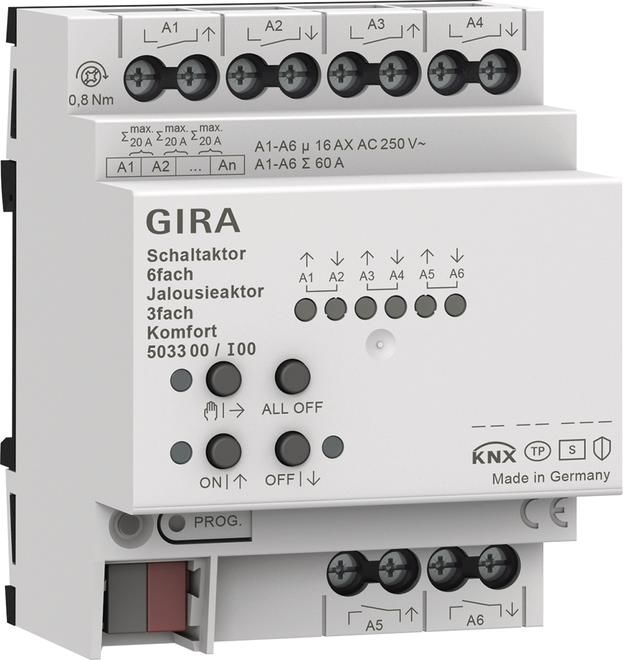

GIRA 503300 switching/jamming actuator 6f/3f 16 A Secure 503300

KNX switching actuator 6-way 16 A blind actuator 3-way 16 A KomfortREG plusDepending on the parameterization, the actuator can be used as a switching actuator or as a blind actuator. Mixed forms of switching and blind actuator are also possible. For the blind actuator function, two adjacent relay outputs are combined to form a blind output.Features: Blind or switching operation can be parameterized. In blind operation, the adjacent outputs (A1 A2, A3 A4...) are combined to form a blind output. Mixed operation on one actuator (e.g. A1 & A2 blind, A3 & A4 blind, A5 switching, A6 switching...) possible. Up to 8 independent logic functions for implementing simple or complex logical operations. Actively sending feedback or status messages can be globally delayed after bus voltage returns or after an ETS programming operation. Manual operation of the outputs independent of the KNX with intelligent LED status displays to save energy. Bistable relays. Supply from the KNX bus, no additional power supply required. Simplified terminal connection (no terminal overlay). Blind functions: Operating mode can be parameterized: Control of slatted blinds, roller shutters, awnings, skylights or ventilation flaps. Separately parameterizable curtain travel times with travel time extension for travel to the upper end position. For slatted blinds, a slat travel time can be parameterized independently. Switchover time when changing direction and times for short and long-term operation (step, move) can be set. Reaction when bus voltage returns and after an ETS programming process can be set for each output. Central control of all blind outputs possible via up to 6 long-term objects (UP, DOWN, permanently UP, permanently DOWN). Feedback of the curtain position or the slat position. In addition, an invalid curtain position or a drive movement can be reported back. Active (sent to the bus when there is a change or cyclically) or passive (object can be read out) feedback functions. Assignments to up to 5 different safety functions (3 wind alarms, 1 rain alarm, 1 frost alarm), optionally with cyclical monitoring. The safety functions (objects, cycle times, priority) are created together for all outputs on a device-oriented basis. Individual outputs can be assigned to the safety functions and the safety reactions on a channel-oriented basis. A comprehensive sun protection function with fixed and variable blind or slat positions can be activated separately for each output at the beginning or end of the function. Including dynamic slat offset for slatted blinds. Also with extended sun protection for integration into more complex shading controls (has separate automatic and blocking objects). Also optionally with automatic heating, cooling and presence function. Fabric tightening function for awnings. Extended blocking function with acknowledgement option.Ventilation function for windows with window contacts. Intelligent teaching function for blind movement. Forced position function or blocking function can be implemented for each blind output. Up to 64 internal scenes can be parameterized for each output. Scene storage function: Additional visual feedback. Extended scene recall (toggling of scenes). Switching functions: Independent switching of the switching outputs. Normally open or normally closed operation. Central switching function via up to 6 switching objects (ON, OFF, permanently ON, permanently OFF) and collective feedback. Switching feedback: Active or passive feedback function. Reaction to bus voltage failure or bus voltage return and adjustable for each output after an ETS programming process. Logical linking function individually for each output. Blocking function can be parameterized for each channel. Alternatively, forced position function separately for each output. Extended blocking function with acknowledgement option. Time functions (switch-on, switch-off delay, staircase light function - also with pre-warning function
Type: 503300
